High Speed Steel Coil Slitting Machine

KINGREAL can provide the high speed steel coil slitting machine, which speed up to 220m/min. As a professional manufacturer in the field of coil slitting machines in China, KINGREAL has the professional strength to produce high-speed slitting machines. Looking forward to reaching stable and long-term cooperation with customers from all over the world.

Send Inquiry    PDF DownLoad

Product Description

steel coil slitting machineVideo About High Speed Steel Coil Slitting Machinesteel coil slitting machine

steel coil slitting machineBrief Introduction Of High Speed Steel Coil Slitting Machinesteel coil slitting machine

steel coil slitting machine

KINGREAL high speed steel coil slitting machines are designed to slit rolls of different materials into specific widths and rewind them. As a manufacturer focusing on the production of slitting machines for more than 20 years, KINGREAL will design customized slitting machines according to the different needs of customers.


In order to meet the customer's demand for production efficiency, one of the biggest features of this KINGREALcoil slitting machine is its high speed. The production speed can reach up to 220m/min through flying shears type.

In addition to high-speed slitting machines, KINGREAL also provides the following main products according to different needs of customers:

steel coil slitting machineWorking Process Of The High Speed Steel Coil Slitting Machinesteel coil slitting machine

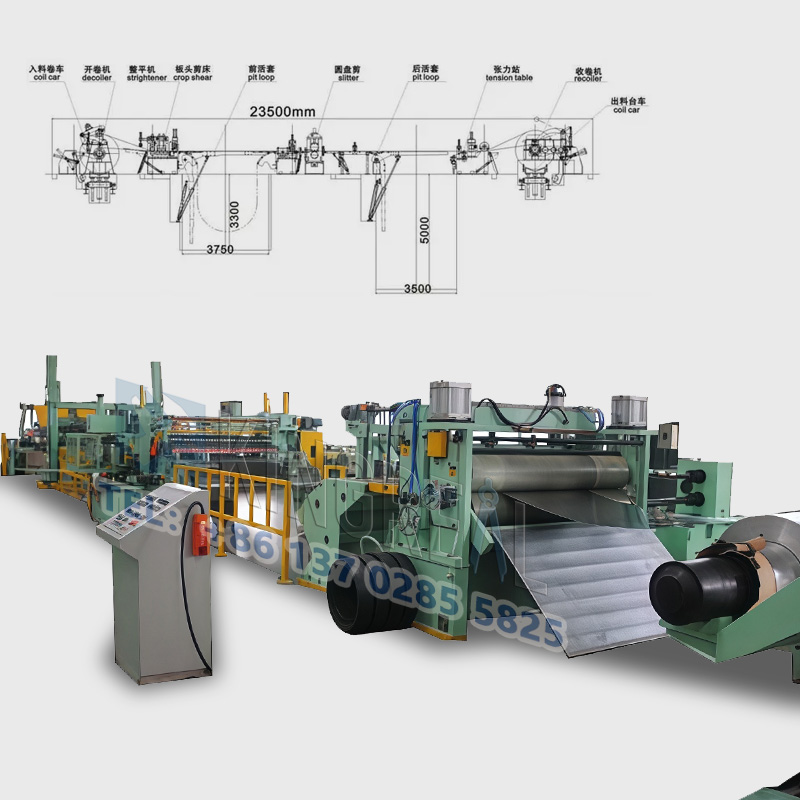

Trolley For Loading Coil -- Hydraulic Decoiler -- Leveling -- Fly Shearing Machine -- Trimming Re-Coiler -- Accumulator -- Separating Unit -- Tension -- Rewinding

steel coil slitting machine

steel coil slitting machineMain Part Of High Speed Steel Coil Slitting Machinesteel coil slitting machine

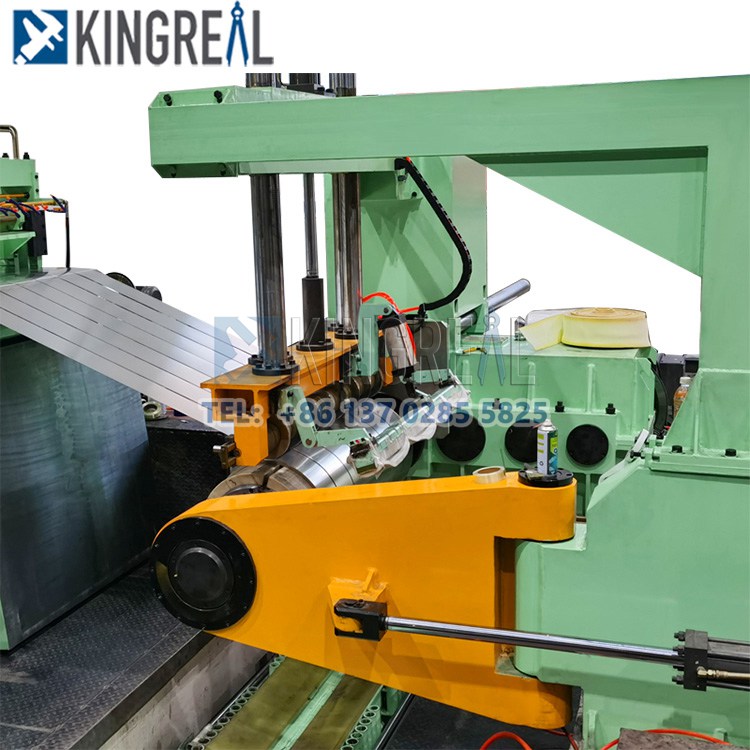

Slitting Roll and roll pad

Select the dual -blade system to achieve rapid adjustment of the blade gap. The replacement of the cutting knife is offline, which can bring better and more efficient operations to users.

Use: Used for roll forming of steel pipes. Specific roll sets can be used to bend the steel strip into the desired diameter of steel pipe.

Material: GCr15 or Cr12 or Cr12MoV

Decoiler and straightener machine

Function:Decoiler is a key component in thecoil slitting line, mainly used to support and open the strip coil and feed the strip into the leveling machine.

KINGREAL provide the trolley for loading the heavy coil, which can carry out unwinding work more conveniently.

Intelligent production system

The program logic control system PLC is combined with the smart touch screen HMI, and the operator can easily monitor the division.

coil slitting line

coil slitting lineWhy Choose Us?

Rich production experience

KINGREAL is a professional manufacturer in the field of slitting machines in China, and has more than 20 years of production experience so far.

Not only a professional design team can design the machine according to the customer's drawings, but also has its own factory for production and manufacturing.



KINGREAL is able to guarantee the quality of the machines to customers. At present, the machines have been sold to all over the world, including Russia, India, Saudi Arabia, Vietnam, the United Arab Emirates and Turkey.

coil slitting line


Technical Support:

KINGREAL has its own professional technical team.

With strong professional ability and rich design experience, KINGREAL engineers can design machines according to the drawings provided by customers and the corresponding production needs.

Solve all technical problems during the production, installation and use of the machine.

coil slitting lineApplication Of High Speed Steel Coil Slitting Machinecoil slitting line

coil slitting line

This machine is widely used in the manufacturing plants of steel pipes, home appliances, furniture, auto parts and other products. It can cut aluminum plates, iron plates, copper strips, galvanized steel, hot-rolled steel, cold-rolled steel, stainless steel and other materials.

slitting line machineKINGREAL Exhibitionslitting line machine

slitting line machine

slitting line machineFAQslitting line machine

Are you a manufacturer?

Yes, we are a manufacturer. We have a factory and our own technical team, feel free to visit us.



How to visit your company?

Our factory is located in Foshan city, Guangdong Province. So there are two ways to our city.

One is by flight, direct toFoshan or Guangzhou Airport. Another is by train, direct to Foshan or Guangzhou station.

We will pick you up at the station or airport.



How to install the production line?

In order to help our customers to solve machine installation problems, KINGREAL will provide both online and local installation services FOR FREE!
