KINGREAL STEEL SLITTER cold rolled steel slitting machine is mainly used to divide the different specifications of coils into different widths of strips along the length direction as needed and rewind them. And this cold rolled steel slitting machine mainly comprises a loading trolley, decoiler, feeder, slitter, waste collection device, head or tail shear, tension control machine, recoiler, etc.
Video About Cold Rolled Steel Slitting Machine
Brief Introduction Of Cold Rolled Steel Slitting Machine
KINGREAL STEEL SLITTER cold rolled steel slitting machine is mainly consist of hydraulic decoiler, slitter and rewind machine in order to achieve the high quality slitting cold rolled steel product.
Cold-rolled steel is steel produced by cold rolling. Cold rolling is a steel plate obtained by further rolling the No. 1 steel plate to a target thickness at room temperature.
Compared with hot-rolled steel sheets, the thickness of cold-rolled steel sheets is more accurate, and the surface is smooth and beautiful, and it also has various superior mechanical properties, especially in terms of processing performance.
KINGREAL STEEL SLITTER specially designed this cold rolled steel slitting machine for precise processing and slitting of cold-rolled steel materials.
Other metal coil slitting machines can also be customized according to different needs of customers, for example:
- Hot Rolled Steel Slitting Machine
-Stainless Steel Coil Slitting Machine
-Copper Coil Slitting Machine
- Silicon Steel Slitting Line
...etc.

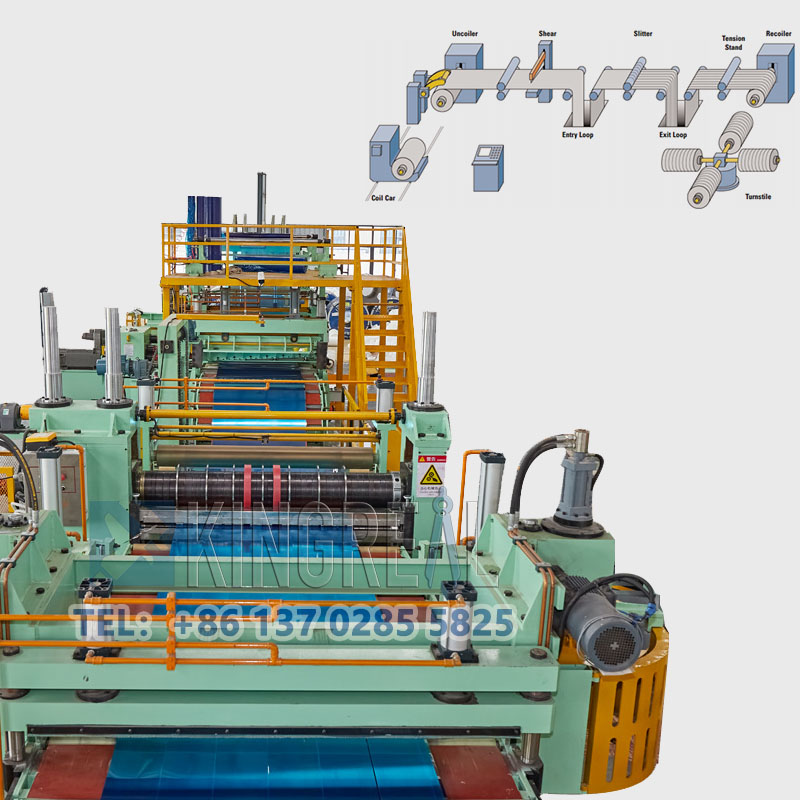

Working Process of Cold Rolled Steel Slitting Machine
Coil Load Trolley -- Hydraulic Decoiler -- Two Rollers Pinch -- Loop Bridge -- Slitting Machine -- Scrap Collector -- Loop bridge -- Hydraulic Tension Station -- Rewinding
Features Of Cold Rolled Steel Slitting Machine
- The shaft of the cold rolled steel slitting line is properly hard chrome plated for tight precision, better finish and longer service life.
- All cylinders used are of high quality heavy duty hydraulic reputable manufacturers and are operated by hydraulic power packs with electric actuators.
- Using DC/AC motors and drives of well-known brands according to customer requirements.
Application Of Cold Rolled Steel Slitting Machine
Cold rolled steel slitting machine can be widely used in various fields, such as construction, machinery, home appliances, and coating industries. Its various advantages make it widely used in various industries for a long time after its rapid rise
Reference Date Of Cold Rolled Steel Slitting Machine
|
Coil Material |
Cold Roll Steel (other can be customized |
|
TensileStrength |
δb≤400Mpa，δS≤280Mpa |
|
Coil Thickness |
0.3-3mm |
|
Coil Width |
500-1600（Max） |
|
Coil I.D |
Φ508 mm/610mm |
|
Coil O.D |
φ1800mm（Max） |
|
Coil Weight |
20 T |
|
Machine Power |
380V/50Hz/3Ph |
|
Slitting Line Speed |
0-220m/min |
|
Machine Capacity |
210 Kw |
Cold Rolled Steel Slitting Machine Composed Device
|
No. |
Component Name |
Quantity |
|
1 |
Carrying coil car |
*1 |
|
2 |
Hydraulic Decoiler |
*1 |
|
3 |
PinchDevice |
*1 |
|
4 |
Slitting Head |
*2 |
|
5 |
Looper 1 |
*2 |
|
6 |
Guide Device |
*1 |
|
7 |
ScrapWinder |
*1 |
|
8 |
Tension |
*1 |
|
9 |
Rewinder |
*1 |
|
10 |
Electrical System |
*1 |
FAQ:
Yes, KINGREAL STEEL SLITTER are a manufacturer. KINGREAL STEEL SLITTER has a factory and our own technical team, feel free to visit us.
KINGREAL STEEL SLITTER factory is located in Foshan city, Guangdong Province. So there are two ways to our city.
One is by flight, direct to Foshan or Guangzhou Airport. Another is by train, direct to Foshan or Guangzhou station.
KINGREAL STEEL SLITTER will pick you up at the station or airport.
KINGREAL STEEL SLITTER has a dedicated team to do strict QA, every machine, part and dimension will be inspected and tested to make sure it is within the tolerance.
 |
 |
KINGREAL STEEL SLITTER has specialized in this industry for over 20 years, especially in cold rolled steel slitting machines.
KINGREAL STEEL SLITTER machine lines are exported directly to Russia, Vietnam, India, Indonesia and many other countries in Asia, Africa, Middle East and South America.
