KINGREAL STEEL SLITTER hot rolled steel slitting machine is designed for efficient and precise slitting of hot-rolled steel coils. Capable of processing medium-sized coils, this hot rolled steel slitting machine ensures precise width control, smooth edges, and consistent quality. The hot rolled steel slitting machine utilizes advanced, fully automated controls to maximize production efficiency while minimizing material waste.
Video About Hot Rolled Steel Slitting Machine
Description Of Hot Rolled Steel Slitting Machine
KINGREAL STEEL SLITTER provides hot rolled steel slitting machine to process hot-rolled steel in various specifications and widths.
Hot-rolled steel is a steel that has been heated and rolled at a high temperature. Its strength is not very high, but it is sufficient for our use. It has good plasticity, so it is extremely practical.
KINGREAL STEEL SLITTER is used to cut narrow strip steel from master coils, capable of slitting steel in different material thicknesses. KINGREAL STEEL SLITTER hot rolled steel slitting lines maintain high precision while allowing customers to make changes when required.
Main Procedure Of Hot Rolled Steel Coil Slitting Machine
Carrying coil car→Hydraulic single arm decoiler→Feeding guide plate fitting→Pinching machine,coil shearing→Front looping table→Side guiding fitting→Back looping table→Tension table→Recoiler→Discharging car→Hydraulic control→Electric control
Main Component Details of Hot Rolled Steel Slitting Machine
|
Part |
Reference Date |
Detail |
|
Hydraulic Decoiler |
-Load-bearing: 15T |
Carry the steel coil, expand the inner diameter of the coil, uncoil and unwind or recycle the coil. It supports the coiled plate and provides tension to the steel belt. It is composed of a frame, a main shaft, an expansion and contraction reel, an unwinding and pressing device, an auxiliary support, a brake device, and a power part. |
|
Slitting Machine |
- Slitting speed: 120m/min |
Slitter is a machine that cuts strip coils longitudinally into various widths. The width of the sheared product can be flexibly changed by switching the combined spacer. Knife shaft adjustment adopts the lower shaft fixed, the upper shaft adjustment for worm gear synchronous adjustment of knife shaft spacing mode, can accurately control the gap between the upper shaft and the lower shaft. |
|
Rewinding Machine |
-Load-bearing: 15T - Braking System: Disc brakes |
This equipment is used to rewind the strips after slitting. It consists of frame body, reel, transmission system, rising and shrinking system, braking system, lubrication system, hydraulic system and so on. |
Features Of Hot Rolled Steel Slitting Machine
1) High-speed cantilever uncoiling mechanism, using the ground to uncoil, reducing the pain of digging a pit.
2) The use of spacer type round shear, in this round shear can also be installed in the locking type blade, for dual-use round shear.
3）Adopt KINGREAL STEEL SLITTER newly developed double-edged cutting head device, which is small in size and fast in cutting speed.
4）Adopting air bag type pressing to ensure the tension to keep the balanced tension in different thickness.
5）Adopt KINGREAL STEEL SLITTER new patented technology taper tension anti-scratch tension mechanism control system, which solves the problem of tension scratches and winding characteristics.
6）Adopt the horizontal drive winding mechanism newly developed by KINGREAL STEEL SLITTER technical team, which solves the problem of gear lubrication of winding mechanism.

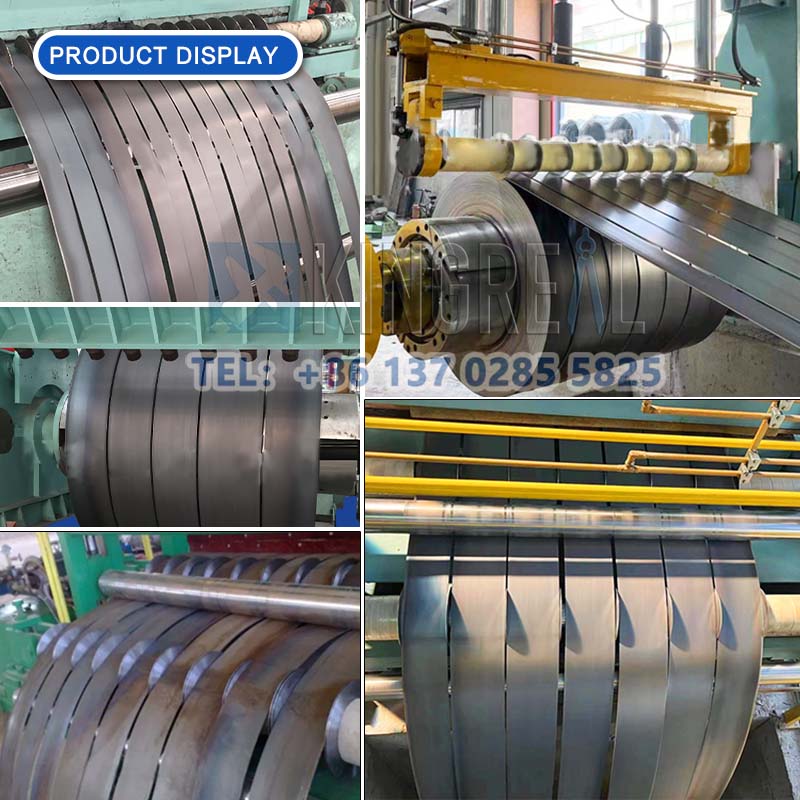

Application Of Hot Rolled Strip Product
Hot-rolled products have excellent properties such as high strength, good toughness and easy processing and forming
Widely used in manufacturing industries such as ships, automobiles, bridges, construction, machinery, and pressure vessels
Hot Rolled Steel Coil Slitting Machine Specification
|
Coil Material |
Hot rolled steel(other can be customized |
|
Coil Thickness |
0.3-25mm |
|
Max Coil Width |
2000mm |
|
Coil Inner Diameter |
470-630mm |
|
Max Coil Weight |
20 T |
|
Slitting Machine Speed |
0-220m/min |
|
Slitting Burr |
±0.02mm |
|
Total Capacity |
130KW |
The above data are for reference, specific can be customized.
KINGREAL STEEL SLITTER welcomes customers from around the world to visit our factory and visit KINGREAL STEEL SLITTER hot rolled steel slitting machines. You can personally operate the hot rolled steel slitting machines and inspect the finished products to assess whether they meet your daily production needs. KINGREAL STEEL SLITTER also offers a variety of Hot Rolled Steel Slitting Machines with varying specifications and performance levels. KINGREAL STEEL SLITTER staff will accompany you throughout the visit and provide detailed explanations of the hot rolled steel slitting machines.
 |
 |
 |
Who Are We?
KINGREAL STEEL SLITTER is a professional manufacturer and supplier. KINGREAL STEEL SLITTER offer full solutions in coil processing and machine tool building, which including high speed coil slitting line, heavy gauge slitting machine, simple slitting machine, cut to length line machine, fly shearing cut to length machine. KINGREAL STEEL SLITTER have a professional team and rich project experience, can provide you with the best service, welcome to contact us.
How To Transport The Hot Rolled Steel Slitting Machine
How to transport heavy machinery efficiently and safely is often a huge challenge.
The following is our machine packing and loading process.
-Use the plastic protective film
- Stick the mark
- Prepare the trailer for loading
- Secure equipment
How To Install The Hot Rolled Steel Slitting Machine
In order to help our customers to solve machine installation problems, KINGREAL STEEL SLITTER will provide both online and local installation services
FAQ About Coil Slitting Machine
1. How To Operate The Hot Rolled Coil Slitting Line Safely?
Open the electrical isolation switch (set in front of the electric control cabinet), press the EMERCENCYSTOPRESET and READYTORUN buttons, and the key opens the MACHINE to RUN (on the main operating stand) to check whether the voltage (380V) and current are correct and stable.
2. How To Choose A Good Slitter Blade?
The material is mainly used DY-5, Cr12MoV, D2, LD, H13, W18Cr4V, SKD-11, H13 + W + Ni and other high-quality tool steel and high-alloy die steel and other materials
3. How to Repair Hot Rolled Coil Slitting Machine?
The components and equipment involved include an decoiler, a clamping device, a slitting machine, a separating blade, and rewinding device, to name a few.
4. How To Maintain The Hot Rolled Coil Slitting Machine?
Professional operation and maintenance can effectively ensure that all parts of the equipment are functioning properly and avoid production line downtime due to wear and tear, aging or malfunction.
5. What Is The Role Of slitting machine tension?
KINGREAL STEEL SLITTER hot rolled coil slitting machine is designed for the production process of slitting and winding of coils of different materials and thicknesses, belonging to the large coil processing equipment
6. What Is The Speed of Hot Rolled Coil Slitting Line?
For the speed of the hot rolled coil slitting machine, the speed range is from 20-220M/Min, and the speed range spans a wide range.
