0.3-2 1600MM Steel Cut To Length Line can be supplied by KINGREAL MACHINERY, which is used to cut the different material coil to specific width sheet plate. KINGREAL can provide professional program design, latest quotation, and professional after-sales team service. Welcome to contact us!
KINGREAL Steel Cut To Length Line suitable for the different material (such as steel, metal, stainless and aluminum) with thickness 0.3-2mm, and the width can be reach 1600mm sheet plate to process the cutting part for customer’s specific need.
The cut to length line's equipment configuration is flexible; KINGREAL may make manufacturing machines that are specifically tailored to your requirements. To meet specific needs, KINGREAL created a touch screen that allows users to adjust the length and number of coils to be cut. The automatic fixed-length line uses a servo motor to measure the length, ensuring the correctness of the produced goods.
|
No |
Component Name |
Number |
|
1 |
Coil Loading Car |
1 Unit |
|
2 |
Hydraulic Decoiler |
1 Unit |
|
3 |
Loop |
2 Units |
|
4 |
Side Guide Device |
1 Unit |
|
5 |
Straightener Machine |
2 Unit |
|
6 |
High Precision Shearing Machine |
1 Unit |
|
7 |
Transportation Table |
1 Unit |
|
8 |
Pneumatic Stack |
1 Unit |
|
9 |
Hydraulic Control System |
1 Set |
(The parts list is for reference only and needs to be customized according to the customer's needs.)
|
Machine Name |
Steel cut to length line |
|
Coil Material |
Steel sheet（other can be supply |
|
Max Coil Thickness |
3mm |
|
Max Coil Weight |
1600mm |
|
Max Coil Height |
20 Ton |
|
Coil I.D |
508mm,610mm,760mm |
|
Coil O.D |
≤2000mm |
|
Max Cutting Length |
24m |
|
Cutting Speed |
60m/min |
|
Cut Tolerance |
±0.01mm |
|
Electrical Control System |
PLC automatic control |

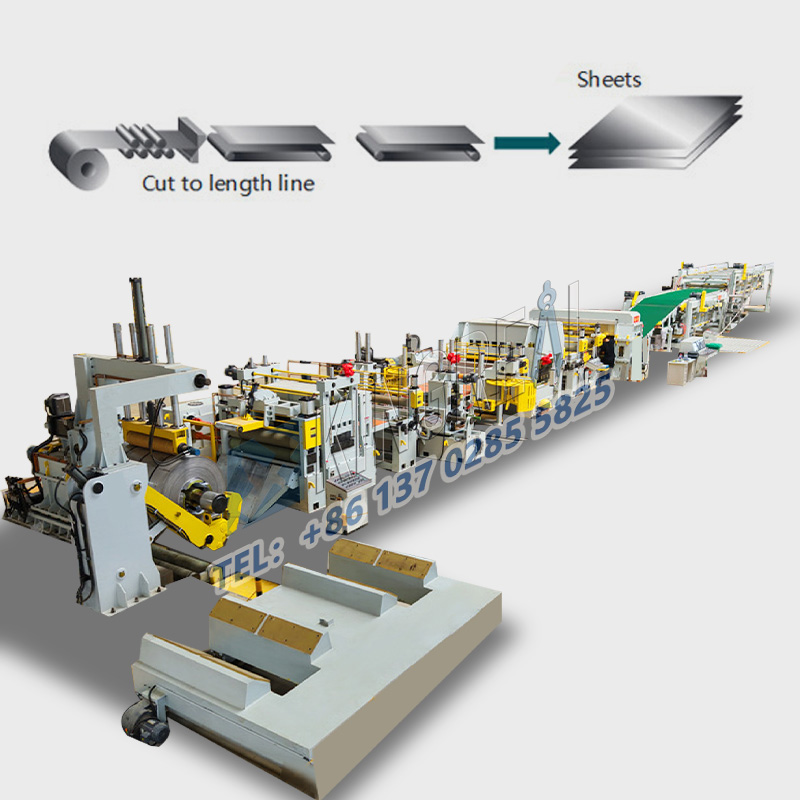

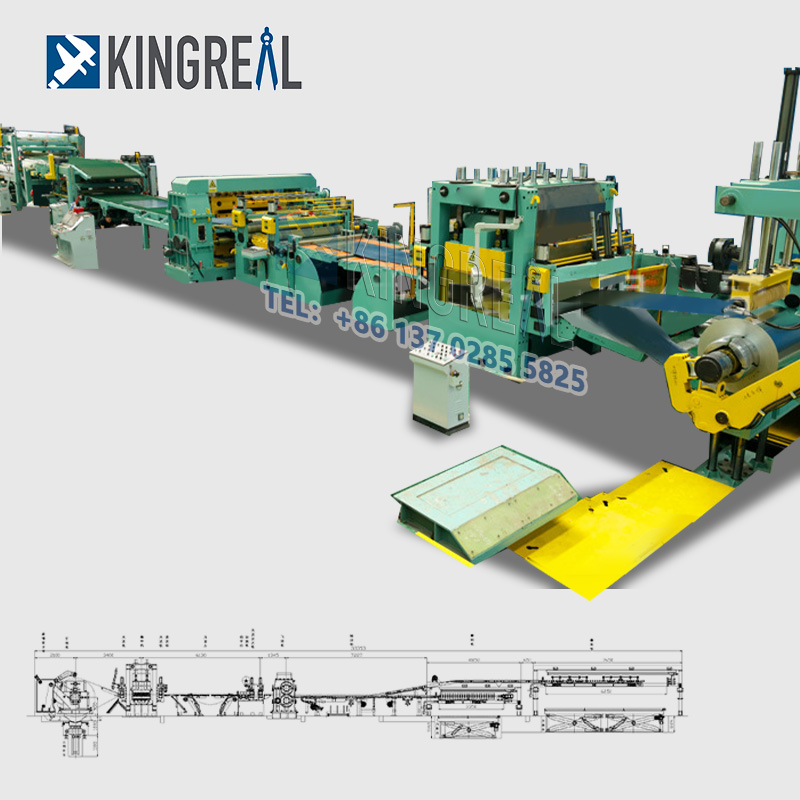

Coil Loading Car -- Hydraulic Decoiler -- Feeding Guide Plate Fitting -- Pinching Machine -- Loop -- High Speed Shearing -- Stack
|
Component Name |
Description |
Specification |
|
Hydraulic Decoiler |
The loading section is used to feed the sheet metal into the shearing machine for shearing. It usually adopts hydraulic loading mechanism, which can realize automatic loading, and control the loading speed and position through sensors to ensure that the metal sheets accurately enter the shearing area. |
1. power: 7.5KW
2. Speed reducer: X95 two stages cycloidal pin-wheel reducer |
|
Fly Shearing Machine |
Cutting tool is the key component of heavy metal shearing line machine, usually consists of upper knife and lower knife. The knives are made of high quality alloy steel with high hardness and wear resistance.
The gap between the upper knife and the lower knife can be adjusted according to the thickness of the metal sheet to ensure the shearing effect and the quality of the cut. |
Can refer to the table above
12x2500 hydraulic shearing 22KW |
|
Hydraulic System |
The heavy metal shearing line machine is equipped with advanced electrical control system, including PLC controller, touch screen operator interface and sensors.
Through the control system, automatic operation and monitoring of the machine can be realized, and the shearing parameters can be adjusted to ensure the stability and safety of the shearing process. |
1. Flow: L=40L/min 2. Pressure: P=12Mpa 3. Power: 7.5KW
|
KINGREAL has its own production plant, which includes a frame casting shop, a CNC control shop, a parts machining shop and an assembly shop. In order to ensure the production quality of the machines, the whole line will be tested and adjusted in the factory. KINGREAL welcomes all customers to visit our factory.
2023 KINGREAL has successfully transported different types of coil slitting machine and CTL line equipment to countries including Saudi Arabia, Russia, India and Turkey. You can learn more about the project by clicking here.
