1600MM Coil Slitting Machine, (0.3-3)MM×1600MM Coil Slitting Machine is the most common steel coil slitting machine, which used to slit the different material coil to the specified width and then rewinding the slit coil. KINGREAL STEEL SLITTER can customize the design of the 1600MM Coil Slitting Machine according to the customer's production needs. Contact us for the latest design solutions.
In the field of metal processing, the application of raw material processing is extremely important, in which Coil Slitting Machine becomes one of the most popular production lines in the major metal coil processing process. Coil Slitting Line can slit metal coils of different thicknesses, weights and sizes into strips of different widths through the slitting production and supply process, and finally produce slit coils for application in many industries through tension winding.
In order to ensure the precision of the process, the Coil Slitting Line has strict standards for the manufacture, assembly and testing of each component. KINGREAL STEEL SLITTER designs different solutions for different raw materials, different thicknesses and different processing requirements. The most common types of Coil Slitting Machines can be categorized into Heavy Gauge Coil Slitting Machines, Medium Gauge Coil Slitting Machines and Light Gauge Coil Slitting Machines.
The 1600MM Coil Slitting Machine is one of the most common and popular models of Coil Slitting Line, which is used to process metal coils with widths ranging from 800-1600MM and thicknesses ranging from 0.3-4MM, including galvanized steel and aluminum coils, etc. The 1600MM Coil Slitting The Coil Slitting Machine realizes precision slitting of metal coils by decoiler, straightener, clamping, slitting and finally rewinding the raw material in several production steps.
For the 1600MM Coil Slitting Machine, KINGREAL STEEL SLITTER is constantly upgrading its design to meet the customer's production needs. One of the most noteworthy innovations is the Dual Slitter Head, which improves the speed of the tool changer and enables a Coil Slitting Line to process coils of different widths and sizes.This effectively improves productivity and gives the customer a competitive edge in the marketplace.
Whether it is a large processing plant or micro processing needs, KINGREAL STEEL SLITTER will provide the right Coil Slitting Line production solution according to the customer's actual production needs and usage.
Raw material |
CR/HR/SS |
Coil Thickness |
0.3-3MM |
Coil Width |
800-1600MM |
Coil Weight |
20T |
Slitting Speed |
0~200m/min |
Strip through speed |
0~15m/min |
Power |
380V/50Hz/3Phase |
No. |
Name |
Qty |
1 |
Raw Material Storage Table |
1 Unit |
2 |
Trolley for Feeding (with safety guard) |
1 Unit |
3 |
Front Auxiliary Support and Unwinding Device |
1 Unit |
4 |
Pinching Machine + Leveler + Shear Machine |
1 Set |
5 |
1# Looper |
1 Unit |
6 |
Sides Guiding Device |
1 Unit |
7 |
Disc Slitting Machine (Twin slitter/Single Slitter) |
1 Set |
8 |
Waste Scrap collector + Scrap Conveyor |
1 Unit |
9 |
2# Looper |
1 Unit |
10 |
Tension station |
1 Unit |
11 |

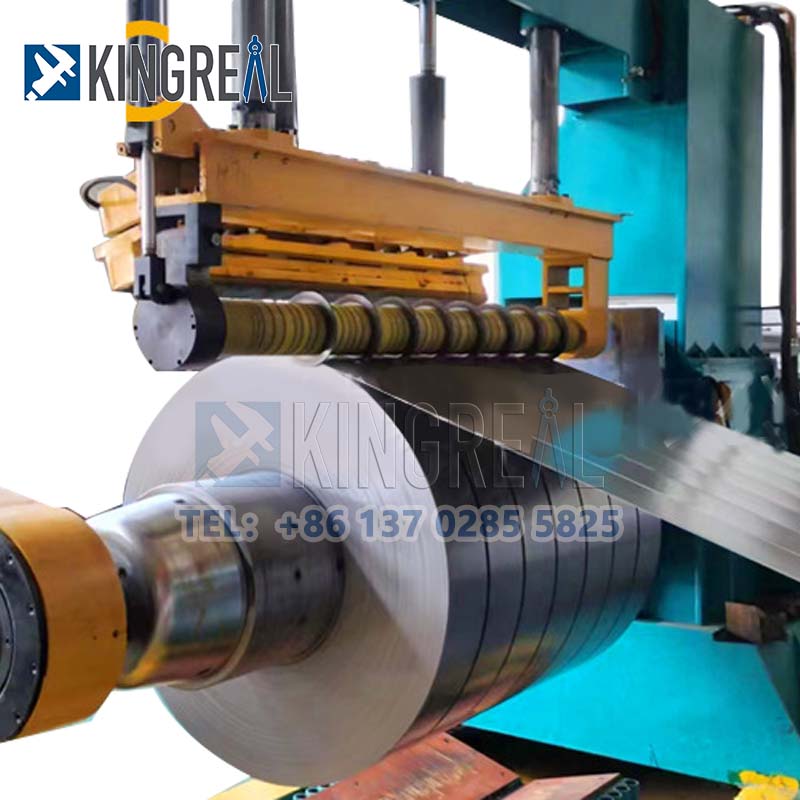

Recoiler (Including separator) |
1 Unit |
12 |
Back Assist support |
1 Unit |
13 |
Unload Trolley |
1 Set |
14 |
Hydraulic System |
1 Unit |
Trolley loading coil -- Hydraulic vertical centering of decoiler -- Hydraulic decoiler -- Pinch and lever -- Plate head shears -- Loop bridge -- Slitting machine -- Tension station -- Separating -- Rewinding machine
1. Precision slitting, blade quality assurance
The main processing step in the metal slitting machine production line is the sheet slitting, which is done quickly and accurately by a set of sharp circular knife block. At the same time by switching the combination of partition, can be flexible to change the width of the cut products. Adjustment of the knife shaft adopts the lower shaft fixed, the upper shaft adjustment for the worm gear worm synchronization adjustment of the knife shaft spacing, can accurately control the gap between the upper shaft and the lower shaft. The upper and lower cutter shafts are fastened axially with nuts, and the upper and lower cutter shafts are equipped with tool protectors at the shaft ends. The main machine adopts motorized opening and closing seat frame (motor driven), which is convenient for blade replacement.
2. A variety of optional configurations, flexible collocation
The KINGREAL STEEL SLITTER Coil Slitting Machine can be supplied in a variety of optional configurations, and we offer a wide range of options for each part, subject to meeting production requirements. In the case of a coiling machine, for example, KINGREAL can provide options such as loading trolleys and support arms to help customers with the coiling process. Slitter knife holders can be selected from single or double knife holders for different slitting output requirements.
3. Easy to use
KINGREAL STEEL SLITTER Coil Slitting Machine is equipped with PLC control panel as well as monitoring system to help customers to perform simple slitting operation. So using our metal slitting line will be very easy.
The operator will easily have full control of our steel slitting line. In addition, with the optional second blade platform on our coil slitting line, changing the width of the cut on the coil slitter line will be faster.
As a manufacturer of Coil Slitting Machine, KINGREAL STEEL SLITTETR insists on serving every customer, we are not only the manufacturer of the machine, but also the partner of the customer for long term cooperation, and we strive to get the long term production benefit for the customer and improve the competitiveness of the industry.
Because KINGREAL STEEL SLITTER will customize design solutions for customers, based on production needs, budget and future development and other dimensions, to provide professional design solutions and exchange of views.
