Galvanized steel slitting machines are extensively used in the modern metalworking sector to slit many different metals, including cold-rolled and hot-rolled coils, stainless steel coils, color-coated coils, galvanized coils, and aluminum coils.
The significance of the snubber cannot be overstated because it is a major part of galvanized steel slitting lines.
In this article, KINGREAL STEEL SLITTER will explore in detail the role of the snubber in galvanized steel slitting machines, its operating principles, and its impact on overall production efficiency.
Typically fixed on the decoiler component of a galvanized steel slitting line, a snubber is a gadget used to compress the outside diameter of the coil. Its major purpose is to guarantee coil stability throughout processing, hence preventing it from sliding or coming free. Snubbers can be driven either pneumatically or hydraulically depending on the needs of production.
Usually providing more force and control, hydraulic snubbers are perfect for working with thicker or heavier coils.Using a hydraulic mechanism, these snubbers guarantee coil stability as it travels into next processing devices like straighteners or levelers by applying pressure.
Pneumatic buffers, however, fit lighter materials, are rather easy to control, and have quicker response times.Quick pressure adjustment with pneumatic buffers allows for different manufacturing circumstances.
As a premium manufacturer of galvanized steel slitting lines, KINGREAL STEEL SLITTER is committed to providing customers with efficient and reliable galvanized steel slitting machines. These galvanized steel slitting lines can process a wide range of metal materials and feature adjustable speed and size.
To date, KINGREAL STEEL SLITTER galvanized steel slitting machines have been exported to countries including Bangladesh, Nigeria, Russia, the United States, and Qatar, and are widely used in strip and coil processing across various industries.
KINGREAL STEEL SLITTER galvanized steel slitting lines offer the following notable features:
|
Various Types: |
Available in single-ring, double-ring, or ringless designs to meet diverse production needs. |
|
Adjustable Slitting Thickness: |
Suitable for coil thicknesses ranging from 0.20 mm to16.0 mm. |
|
Width Configurations: |
Coil widths range from 500 mm to 2000 mm. |
|
Coil Weight Capacity: |
Supports coil handling from 5.0 tons to 30 tons. |
|
Burr Control: |
Minimizes burrs on the strip, ensuring product quality. |
|
High-Precision Operation: |
The knives on the tool holder operate with high precision, ensuring cutting quality. |
|
Constant Parallel Distance: |
The parallel distance between the last guide roller and the coiler drum is constant, improving production stability. |
|
High Operating Speed: |
The maximum operating speed can reach 230m/min, significantly improving production efficiency. |
|
High Level of Automation: |
The automated design makes operation more economical and efficient, reducing labor costs. |

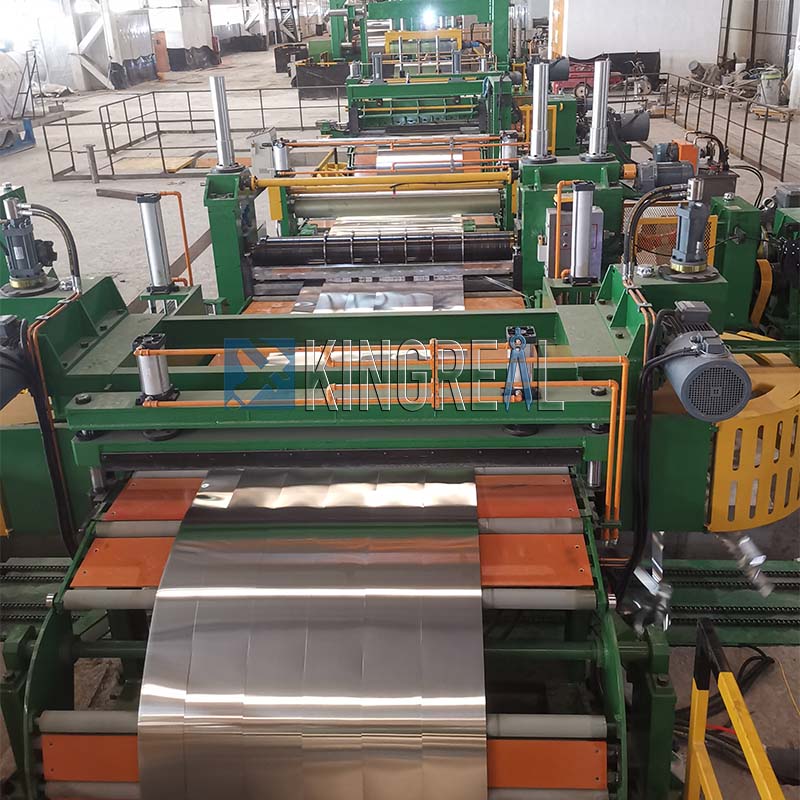

The efficient operation of a galvanized steel slitting line depends on the coordinated operation of its various components. The following are the main components and functions of a KINGREAL STEEL SLITTER galvanized steel slitting machine:
1. Decoiler for galvanized steel slitting line
The decoiler is the primary component of the galvanized steel slitting line. It is responsible for pre-positioning multiple coils onto the loading station and is available in single- or dual-head configurations to meet different needs. This unit's design ensures smooth coil flow into subsequent processing stages.
2. Buffer and Support Table Assembly for galvanized steel slitting line
As mentioned earlier, the buffer is used to hold the coil's outer diameter down, ensuring stability during the slitting process. Hydraulically or pneumatically operated buffers provide flexibility for varying production conditions, while support tables facilitate smooth sheet feed into the straightener or leveler.
3. Sheet Leveler for galvanized steel slitting line
The leveler is used to level coils to the desired flatness range, ensuring smooth subsequent processing. The feed roller design allows for easy entry and exit of the sheet into and out of the leveler, and offers a variety of manual, hydraulic, or electric adjustment options to suit varying production needs.
4. Shearing Unit for galvanized steel slitting line
The shearing unit provides infeed or outfeed shears, depending on customer requirements. This unit utilizes a hydraulic design, ensuring precise and efficient shearing.

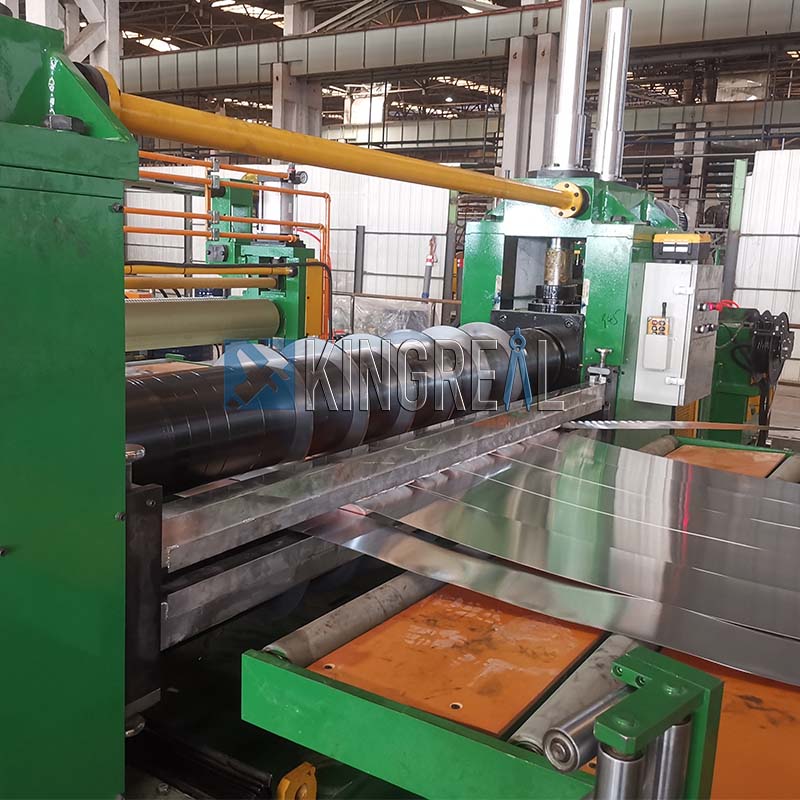

5. Slitting Assembly for galvanized steel slitting machine
The slitting assembly is a crucial component of the galvanized steel slitting line, where the coil is slit widthwise by a blade. This assembly features feed rollers that facilitate entry and exit of the sheet and provide the necessary clearance between slits.

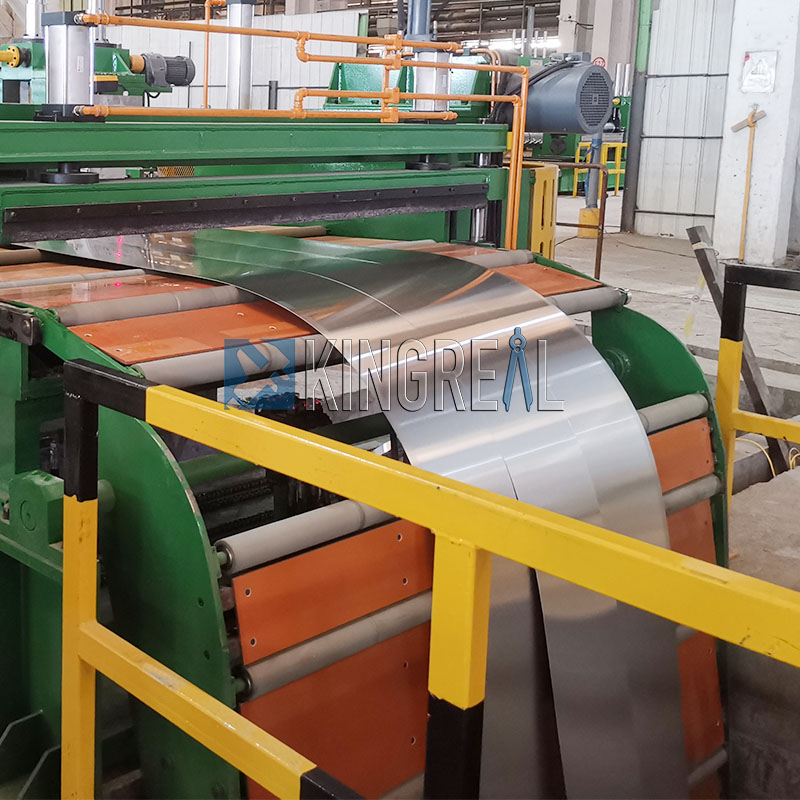

6. Hold-down Roller/Pad and Guide Roller for galvanized steel slitting machine
These components tighten and simplify rewinding of slit coils, ensuring high-quality and consistent end products.

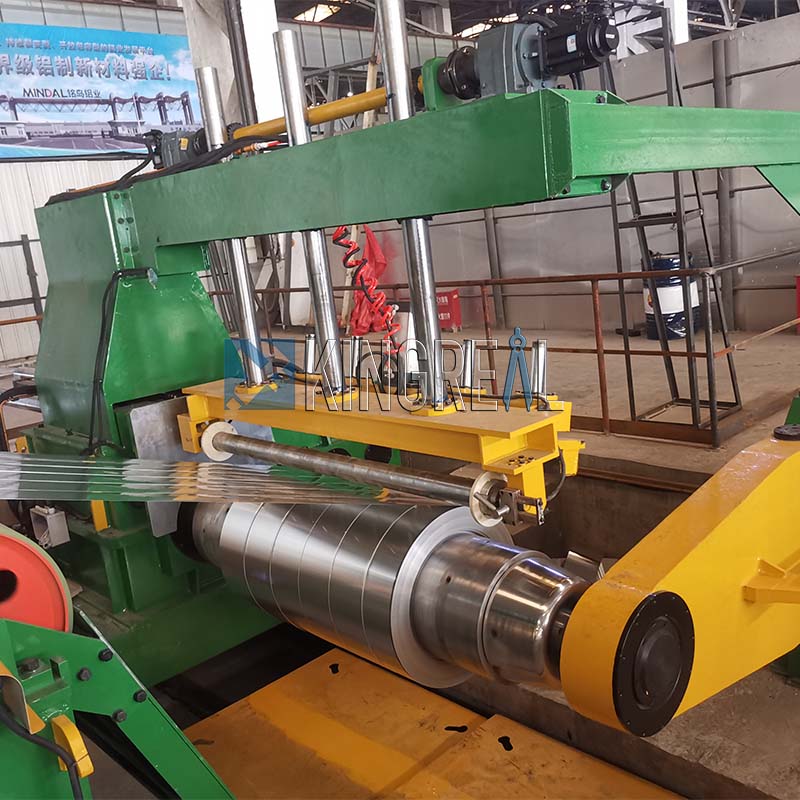

7. Winding Unit for galvanized steel slitting line
The winder unit rewinds slit coils into smaller coils and is equipped with a drive and slitting mechanism to ensure production flexibility.
8. Coil Carriage - Infeed and Outfeed for galvanized steel slitting machine
The coil trolley's design simplifies unloading slit coils from the coiler's jaws. Its electric drive and hydraulic cylinder-driven lifting mechanism make operation more convenient.
9. Scrap Winder for galvanized steel slitting line
The scrap winder, driven by an AC gear motor or hydraulic motor, winds scrap material, ensuring maximum resource utilization during production.
 |
 |
 |
Buffers play a crucial role in galvanized steel slitting machines. Besides minimizing material loss and increasing product yield, these assist to stabilize the outer diameter of the coil and so avoid material slipping during processing. Furthermore, a well-designed buffer improves overall manufacturing line efficiency and minimizes downtime.
Any buffer failure in a galvanized steel slitting line directly impacts the fluent feeding and unloading of the coils as well as the quality of following manufacturing. Therefore, regular maintenance and inspection of the buffers to ensure their proper function are key to ensuring efficient galvanized steel slitting machine operation.
