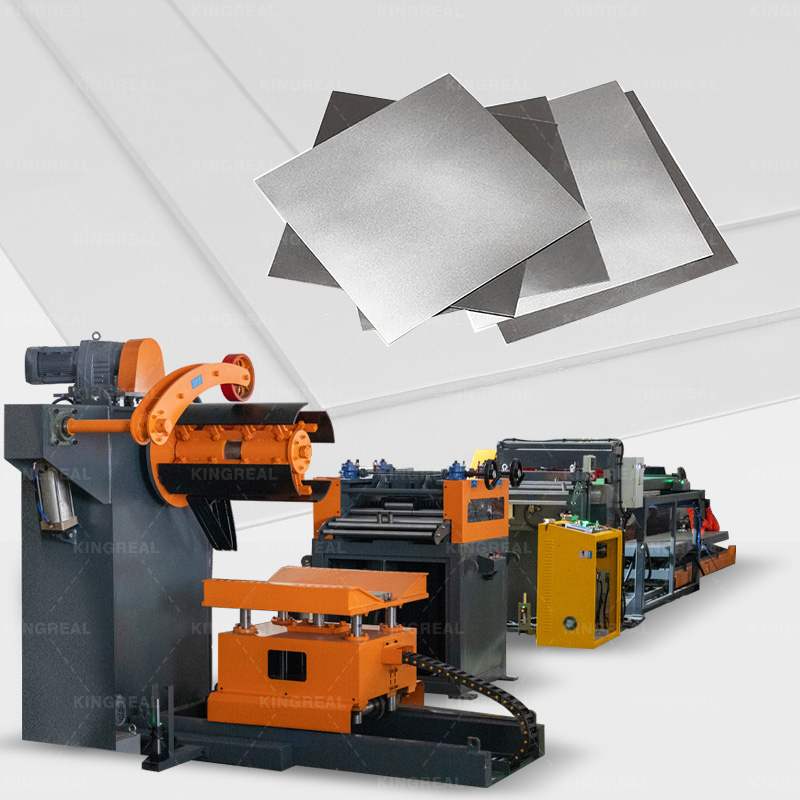

Simply Cut To Length Line

KINGREAL MANUFACTURER can provide the different type of coil cut to length machine. In order to meet the needs of customers with lower budget, KINGREAL specially designed a simple cut to length line, which can reduce the investment as much as possible while meeting the production demand, and reduce the production cost for customers. Welcome to order!

Send Inquiry    PDF Download

Product Description

Video About Simply Cut To length Line:

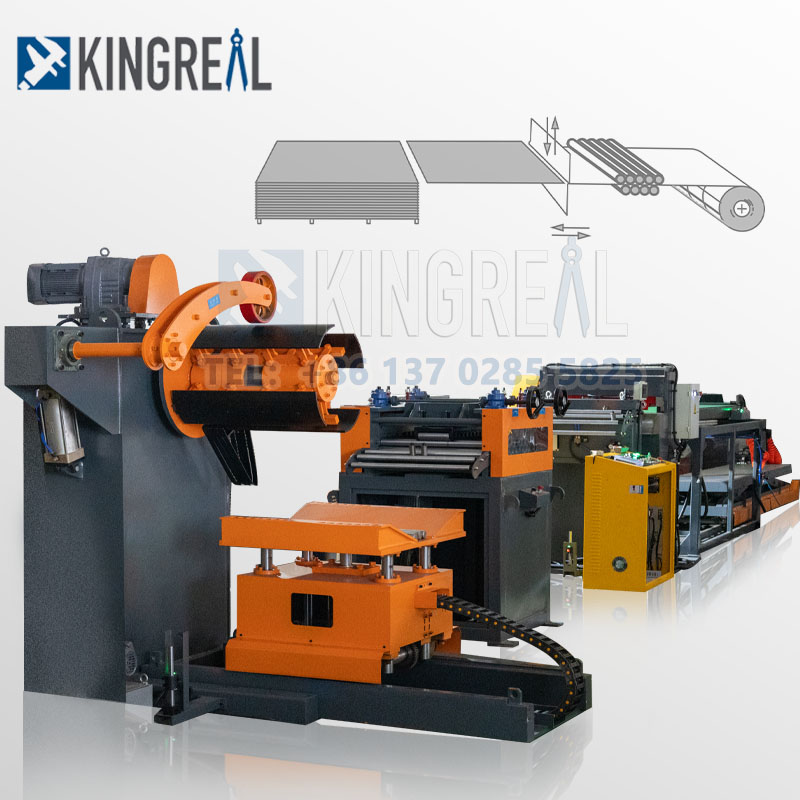

What Is Simply Cut To Length Line?

Cut To Length Production Lines are usually used to cut coils of different materials into specified widths, and finally perform stacking work.

Generally speaking, the investment cost of the factory area required by the cut to length production line is relatively high. In order to reduce the customer's budget as much as possible, KINGREAL specially designed this Simply Cut To Length Line.

KINGREAL simply cut to length committed to reducing the input cost of the machine as much as possible while retaining the basic capacity of the production line. This cut to length machine developed from ordinary cross cutting machine, but retains their functions and simplifies the structure to reduce costs.

What Is The Working Process Of Simply Cut To Length Line?

Hydraulic Decoiler -- Feeding Roller -- Straightener -- Shearing Machine -- Convey -- Automatic Stack

Specification Of The Compact Cut To Length Line

Raw material

Copper,Galvanized plate, Stainless and so on


0.3 mm to 1.0 mm

Shearing Width

80mm to 1250 mm

Working Speed

About 15 m/min

Slitting Blade

6 pcs

Main Motor Power


Hydraulic Motor Power


Total Power

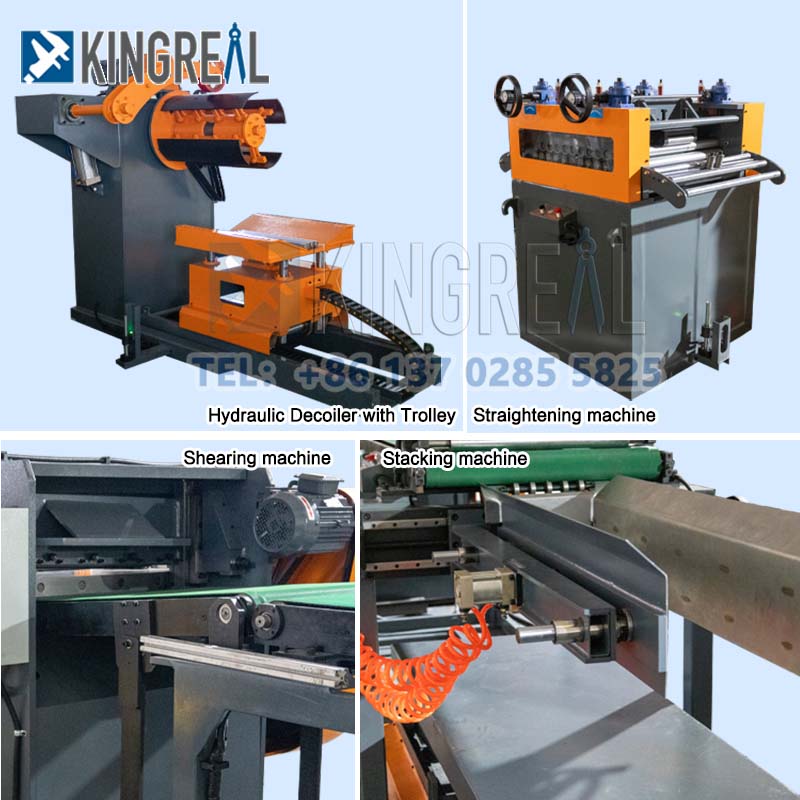

Feature Of This Cut To Length Machine

Hydraulic Decoiler

The decoiler equipped with this cut to length machine can realize the function of hydraulic uncoiling, which can greatly improve the production efficiency for large-size coils.


Straightener Machine

KINGREAL straightener machine is controlled by servo motor for high speed feed and precise length control adjustment. Operation is carried out on the control console with programmable control.


Stack Machine

KINGREAL has also configured automatic stacking equipment for this CTL production line, which can realize a series of production processes from uncoiling to shearing and stacking.

Advantage Of The Simply Cut To Length Machine

Simple structure and easy operation

KINGREAL specially designed this simple version of the CTL production line to minimize all complex equipment and retain basic equipment to meet production needs.

The whole production line realizes an integrated structure, and it is very easy to operate

Save factory area, low investment

One of the biggest advantages of this production line is that it can be produced without building foundations during factory installation.

This can save a large number of factory locations and reduce the production cost of the factory. That is to say, it can save customers' investment in production.

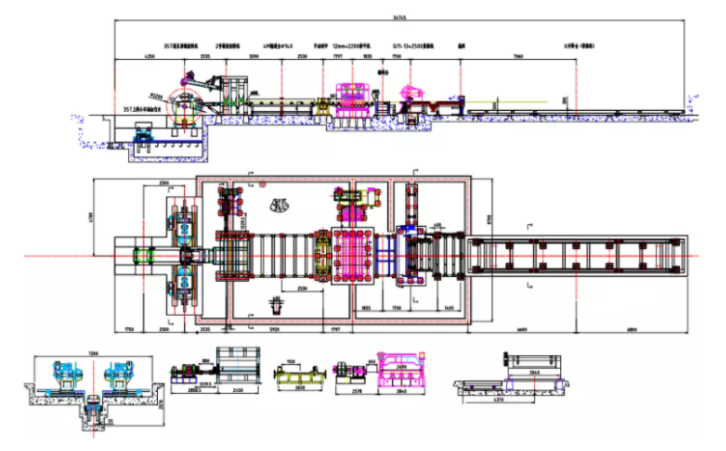

Normal Cut To Length Machine Working Process

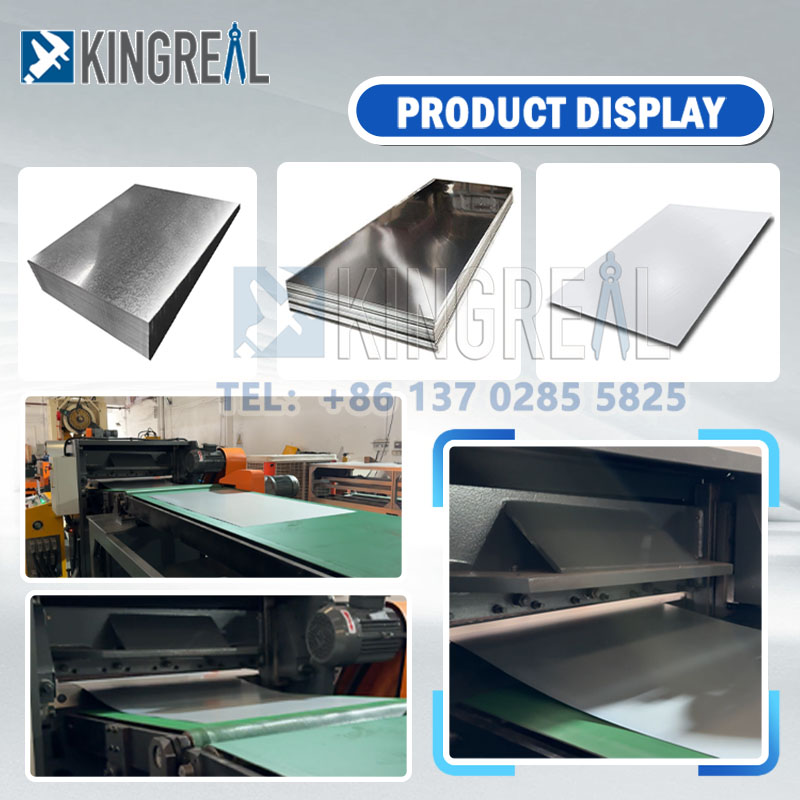

Display Of The Final Product


How to visit your company?

Our factory is located in Foshan city, Guangdong Province. So there are two ways to our city.

One is by flight, direct to Foshan or Guangzhou Airport. Another is by train, direct to Foshan or Guangzhou station.

We will pick you up at the station or airport.


What information do you have to provide for us to prepare a quote?

1. Thickness of the coil (min-max)?

2. Coil width (min-max)?

3. What is your steel material?

4. Coil weight (max)?

5. How many pieces of maximum thickness do you need to slit?

6. How many tons do you need per day or per month?


Are you a manufacturer?

Yes, we are a manufacturer. We have a factory and our own technical team, feel free to visit us.
