Full Automatic Steel Coil Slitting Machine

KINGREAL can provide the full automatic steel coil slitting machine, which is designed to automatically slit rolls of different materials into specific widths and rewind them.As a manufacturer focusing on the field of slitting machines in China for more than 20 years, KINGREAL can ensure the quality of the machines and provide customers with high-quality services.

Send Inquiry    PDF DownLoad

Product Description

sheet metal slitterVideo about Full Automatic Steel Coil Slitting Machinesheet metal slitter

coil slitting machineWhat is full automatic steel coil slitting machine?coil slitting machine

coil slitting machine

As a professional slitting machine manufacturer in China, KINGREAL is committed to helping customers solve all their needs. In terms of improving production efficiency, the fully automatic steel coil slitting machine designed by KINGREAL has both functionality and operability, which maximizes the automation of the machine and reduces manual operations.


KINGREAL full automatic steel coil slitting machine is our one of the most feature product, which biggest feature is to maximize the automation and improve the production efficiency of the machine.

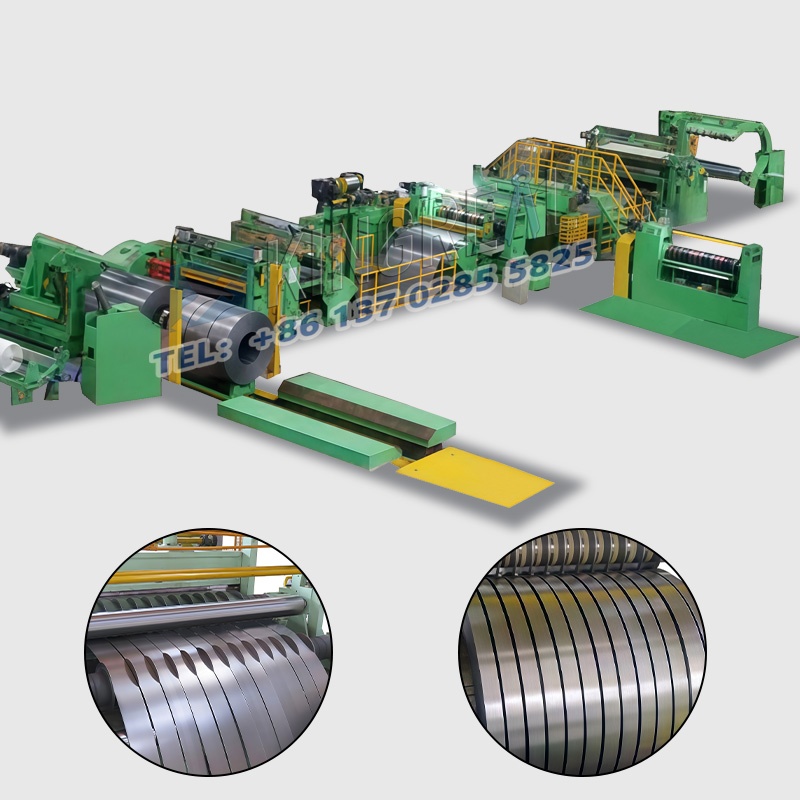

The coil slitting line is mainly consists of trolley for loading coil, hydraulic decoiler, guide clip device, slitting machine, side guide device, loop bridge, rewinding and other equipment. Applicable coil raw materials include HR, CR coil, aluminum, copper coil, silicon steel, stainless steel, color steel, AI and PPIG, etc.

slitting line machineFull Automatic Steel Coil Slitting Machine Working Processslitting line machine

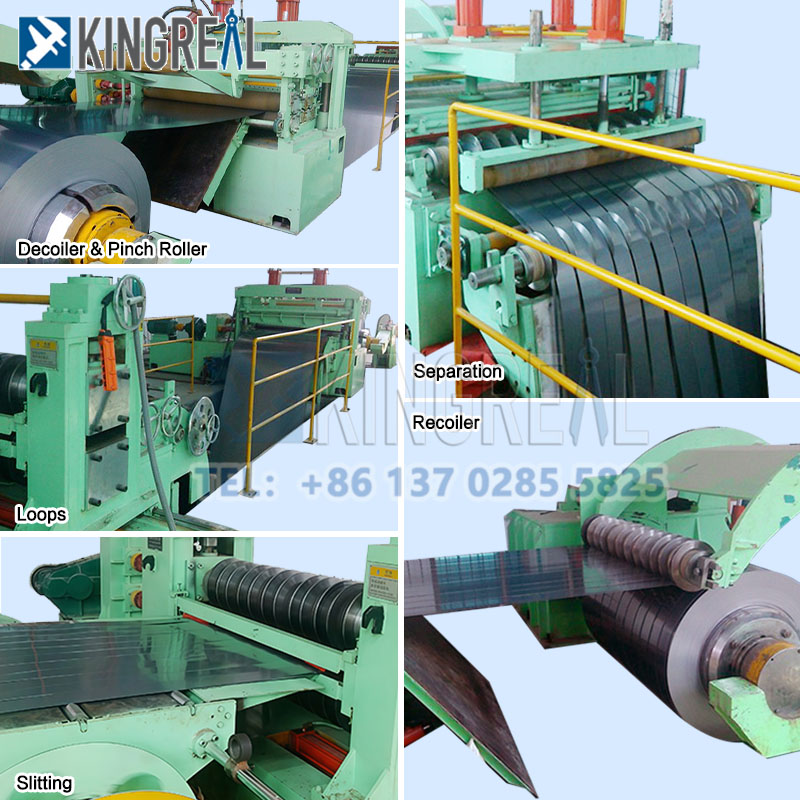

Trolley loading coil -- Hydraulic vertical centering of decoiler -- Feeding by decoiler -- Pinch and lever -- Plate head shears -- Loop bridge -- Slitting machine -- Tension station -- Separating -- Rewinding machine

slitting line machine

slitting line machineTechnical Parameter Of Full Automatic Steel Coil Slitting Machineslitting line machine

Machine Type

Full Automatic

Materials

GI, PPGI, PPGL, Galvanised steel coils,etc

CoilThickness

0.18-0.6mm

CoilWidth

1250mm

CoilWeight

12T

Steel slitting blade shaft

Φ120mm

Blade specification

Φ220×Φ120×10mm

SlittingLine speed

≤30 m/min

Width tolerance

≤±0.05 mm

Power of decoiler

11 KW

Power of slitter

15 KW

Power of recoiler

22 KW

cut to length machineFeature Of Full Automatic Steel Coil Slitting Machinecut to length machine

Fully automatic hydraulic uncoiling

For large-size coils (more than ten tons in weight), KINGREAL provides coiling trolleys to assist in uncoiling work.

At the same time, KINGREAL designed the Cantilever type for the unwinding part of the slitting machine to ensure that the uncoiler unwinds smoothly under heavy pressure.



Automatic adjustment of interval axes

KINGREAL automatic slitting machine production line will design an automatic solution for positioning the spacer shaft according to the number of cuts and its position. The system is fully automatic and configurable, so the operator can decide on the position and number of separators in each case.

metal slitting machine
Automatic blade change

The process of changing and adjusting the blade of KINGREAL automatic slitting machine is fully automatic, and it takes less than 4 minutes for the intelligent mobile turret. KINGREAL can provide automatic manipulators to assist.

metal slitting machine

metal slitting machineWhy Choose Us?metal slitting machine

Rich production experience
metal slitting machine

As a professional manufacturer in the field of slitting machines, KINGREAL has more than 20 years of production and sales experience, and has successfully shipped the machines to countries around the world, such as Russia, India, the United Arab Emirates, Vietnam and Turkey. Widely recognized by customers.



Professional team strength

KINGREAL has its own technical team, sales team and production team. From production and sales to transportation, we can complete the whole process professionally.

steel slitting machine


After-sale service provided
steel slitting machine

In order to ensure the normal installation and operation of the machine, KINGREAL provides online and offline after-sales installation services.

Online includes video tutorials and full online guidance from engineers;

Offline means that KINGREAL dispatches engineers to the customer's local factory for on-site installation guidance.

steel slitting machineFAQsteel slitting machine

How to visit your company?

Our factory is located in Foshan city, Guangdong Province. So there are two ways to our city.

One is by flight, direct toFoshan or Guangzhou Airport. Another is by train, direct to Foshan or Guangzhou station.

We will pick you up at the station or airport.



How do you do quality assurance?

We have a dedicated team to do strict QA, every machine, part and dimension will be inspected and tested to make sure it is within the tolerance.



How to order?

steel slitting machine
