KINGREAL STEEL SLITTER can provide metal cut to length machine, which is design to cutting the metal sheet into required length. KINGREAL STEEL SLITTER has been focusing on metal cut to length lines for more than 20 years and is a professional manufacturer and supplier in China. KINGREAL STEEL SLITTER metal cut to length machines have the advantages of high quality and customization,and look forward to long-term and stable cooperation with customers all over the world.
Video About Metal Cut To Length Machine
Description Of Metal Cut To Length Machine
KINGREAL STEEL SLITTER metal cut to length machine is design to shear metal coils of different thicknesses into sheets of specified width for the further metal processing.
Metal cut to length line usually includes multiple production equipment to ensure the efficient operation of the production line. Metal cut to length lines are usually used to process metal materials with a thickness of 0.3-12MM or thicker, , with a maximum thickness of 25mm. If you require coil processing of a specific thickness, please contact KINGREAL STEEL SLITTER. Our engineers will provide a customized metal cut to length machine solution after thorough consultation.
Typically, a metal cut to length line consists of precision components such as an decoiler, straightener, feeder, shearing unit, and stacking unit. Furthermore, the metal cut to length machine's PLC system displays information such as length, number of cuts, and speed. When the customer's set number of cuts is reached, the metal cut to length line automatically stops, demonstrating its exceptional intelligence.
In addition to metal cut to length lines, KINGREAL STEEL SLITTER also designs a variety of metal cut to length lines for different materials and different production characteristics and needs, such as
1. Stainless steel cut to length line
2. Steel cut to length line
3. Cut to Llngth line with trimming
4. Metal cut to length line with automatic stacking
5. Combining slitting and metal cut to length lines
Workflow Of Metal Cut To Length Machine

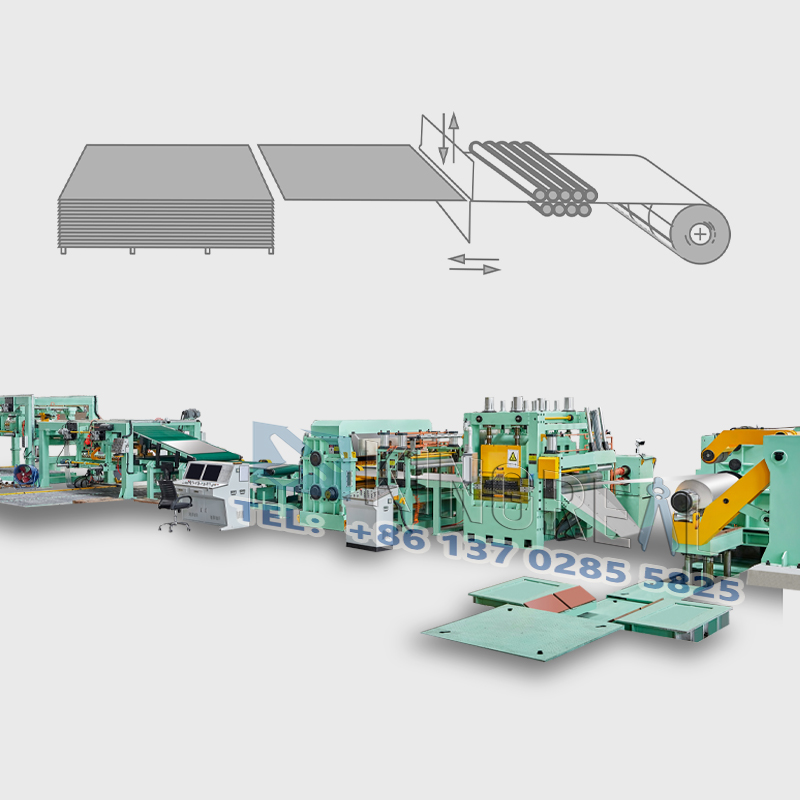

Coil trolley → Decoiler → Pinch feed roller feeding → High precision leveling device → Fixed length cutting → Unloading table / Automatic stacking table
Main Components Detail Of Metal Cut To Length Line
KINGREAL STEEL SLITTER hydraulic cantilever is design foe supports coil and performs uncoiling，which max capacity is 15 tons.
Hydraulic cylinders are used to make the decoiler retractable and suitable for the coil inside diameter. It is equipped with a cantilever arm.
KINGREAL STEEL SLITTER leveling machine is controlled by servo motor for high speed feed and precise length control adjustment. Operation is carried out on the control console with programmable control.
Drive method: 15KW servo motor, precision reduction drive, synchronized conveyor belt to feed rollers
Cutting mode including hydraulic up and down shear, with the feeder direct signal automatic shear. The use of gap adjustment design cutting materials, heat treatment can safely shear 2mm steel plate.
Pneumatic system consists of gas source (provided by the demander), gas source processing components, Salennoid, related pipelines and cylinders, etc.
Salennoid and other components are made of high quality products.
Technical parameters: Air source pressure: 0.4-0.6Mpa. capacity: 1m³/min.
Equipment list of metal cut to length machine
Hydraulic coil car
- Hydraulic decoiler
- Hydraulic entrance guide
- Four / six high leveling machine
- Ring bridge
- Side guide pulley
- CNC servo feeding straightening machine
- Measuring system
- Shearing machine
- Conveyor table
- Pneumatic unloading device
- Hydraulic lifting table
- Unstacking car
- Hydraulic system
- Pneumatic system
- Electrical system PLC control
Specification Of Metal Cut To Length Machine
|
Machine type |
Metal Cut to length line |
|
Coil material |
Metal coil（other can be customized |
|
Coil thickness |
0.5-10mm |
|
Coil width |
600-2000mm |
|
Coil Inner Diameter |
500/610 mm |
|
Coil Outer Diameter |
≤2000 mm |
|
Cutting Speed |
10-70m/min |
|
Cut to length Accuracy |
±1.5 mm |
|
Cut to Length Range |
500~4000mm |
|
Sheet Leveling Flatness |
≤±1.5mm/m² |
To provide metal cut to length lines that fully meet our customers' production needs, KINGREAL STEEL SLITTER customizes metal cut to length machine manufacturing solutions based on our customers' specific drawings and requirements, including material thickness, material, width, required speed, and production scale.
The following are some featured metal cut to length line manufacturing options:
Metal cut to length machine with laminating device
To meet our customers' stringent requirements for sheet metal surface smoothness, KINGREAL STEEL SLITTER can equip metal cut to length lines with a laminating device. Before the metal coil enters the shearing machine, a layer of film is applied to the surface, preventing it from being scratched by the sharp blades during the shearing process.
Metal cut to length machine with double levelers
To meet our customers' stringent requirements for sheet metal flatness and save time on subsequent secondary processing, KINGREAL STEEL SLITTER equips metal cut to length machines with double levelers. The metal coil undergoes two leveling steps, ensuring maximum flatness.
Metal cut to length line equipped with dual stacking tables
To improve overall efficiency throughout the metal cut to length machine's production process, KINGREAL STEEL SLITTER can equip metal cut to length line with dual stacking tables. This system increases the speed of stacking sheet metal while ensuring high quality.
Use and attention of metal cut to length line
1.Coil should be put right to keep the weight balance. The coil trolley must fix and tension the coil into the decoiler before it can be reset.
2.Press the coil head with the traction roller first, then open the coil package to prevent the coil head from popping open.
3.When the machine is running, the operator must not stand on the coil.
