KINGREAL STEEL SLITTER can provide complete solution for cut to length line. As a professional manufacturer in China's coil processing industry, KINGREAL STEEL SLITTER has more than 20 years of production and sales experience. Successfully manufactured and shipped different types of metal slitting machines and metal cut to length line to all over the world, welcome to contact us
Video About Cut To Length Line

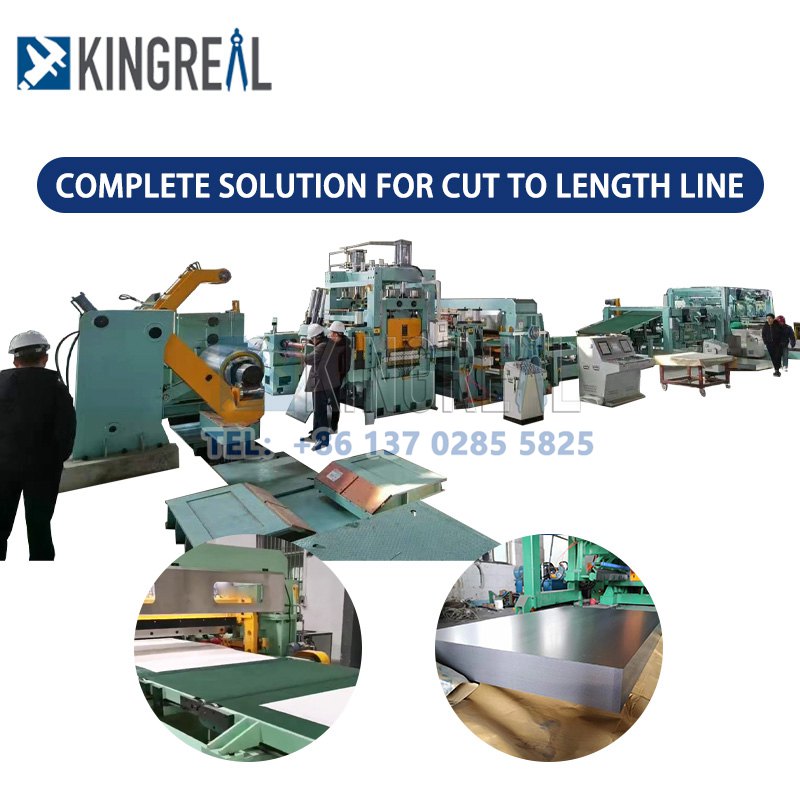

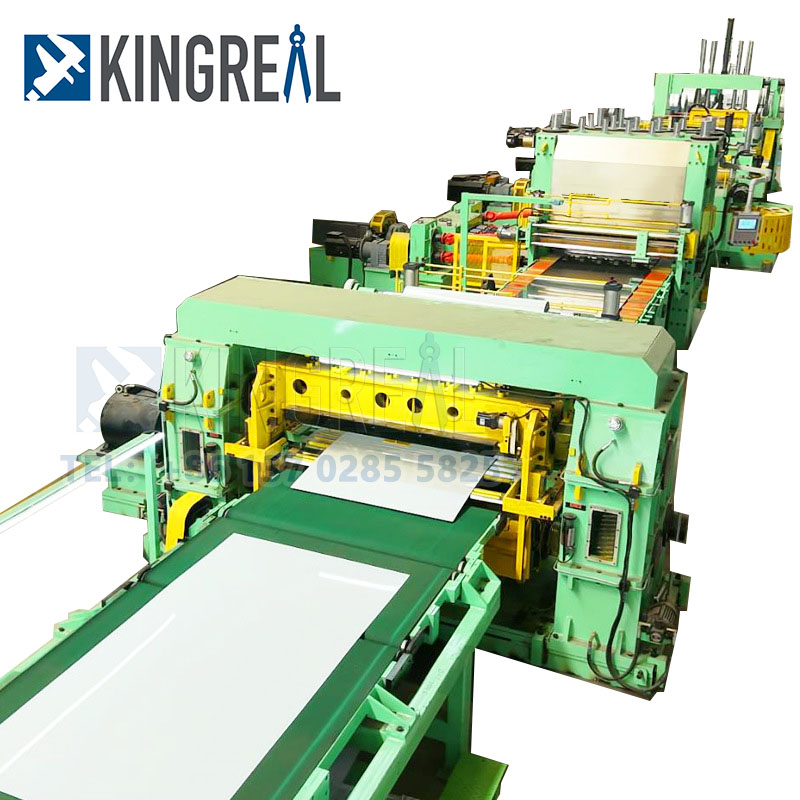

Description Of Complete Solution For Cut To Length Line
KINGREAL STEEL SLITTER cut to length line cuts different metal materials into products of specified width through basic processes such as uncoiling, leveling, cutting and stacking, and automatically stacks them. This cut to length line is ideal for cutting tough or thick materials such as steel, stainless steel, and aluminum. Its high speed and precise measurement make it suitable for a wide range of applications. This cut to length line is ideal for cutting tough or thick materials such as steel, stainless steel, and aluminum. Its high speed and precise measurement make it suitable for a wide range of applications.
Each KINGREAL STEEL SLITTER cut to length production line is designed according to the needs of customers, so the construction of the production line is different, custom design and construction, some details will be considered when choosing a suitable cut to length line, such as production capacity, operating speed, material thickness and width, etc.
In the process of the entire metal cut to length production line from the determination of the drawings to the casting in the factory to the completion of assembly, the customer can get timely feedback, and can come to the site for inspection and adjustment as soon as the final manufacturing is completed.
The Whole Solution Of Cut To Length Machine As Follow:

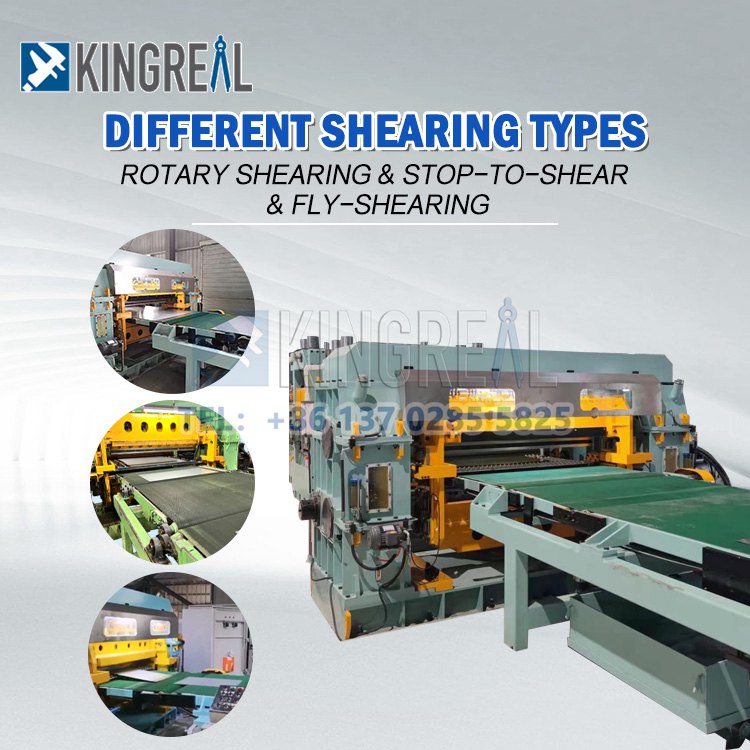

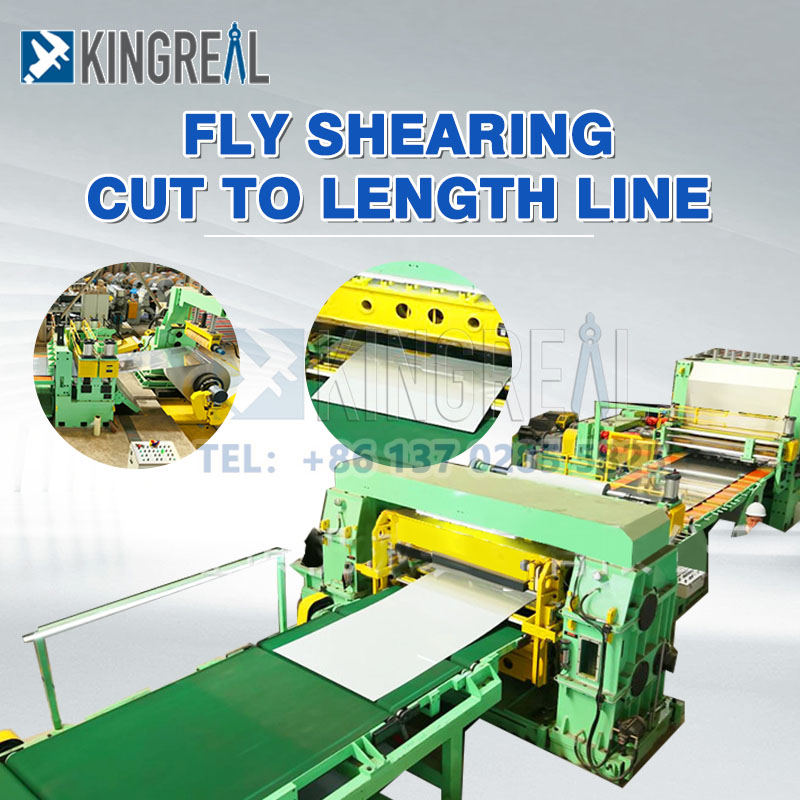

Fly Shearing Cut-To-Length Line
A flying shear cut to length line synchronizes the cutting process with the movement of the metal sheet. As the sheet moves along the cut to length line, the shear accelerates to match the line speed, achieving a seamless cut. Speeds can reach up to 80 m/min.
Rotary Shearing Cut To Length Line
A rotary shear cut to length line uses a rotary cutting mechanism, eliminating the risk of marking the material during cutting. This system is designed to achieve high-speed, zero-mark cutting and is particularly suitable for materials requiring a perfect surface finish. This cut to length machine has a production speed of up to 80 m/min.
Fixed Shearing Cut To Length Line
A fixed shearing cut cut to length line stops the machine during cutting. cut to length machine’s maximum production speed is limited to 50 m/min.
Heavy Gauge Cut To Length Machine
The heavy gauge cut to length machine is designed for processing heavy metal coils ranging in thickness from 6 to 20 mm. This heavy gauge cut to length line efficiently handles thick gauge material, making it an essential tool for the structural steel and other heavy metal industries.
Controlled by precision components, this fully automatic cut to length line automates all operations, from uncoiling and leveling to feeding, cutting, and stacking. Operators simply set production parameters on the control panel, making operation simple and highly efficient.

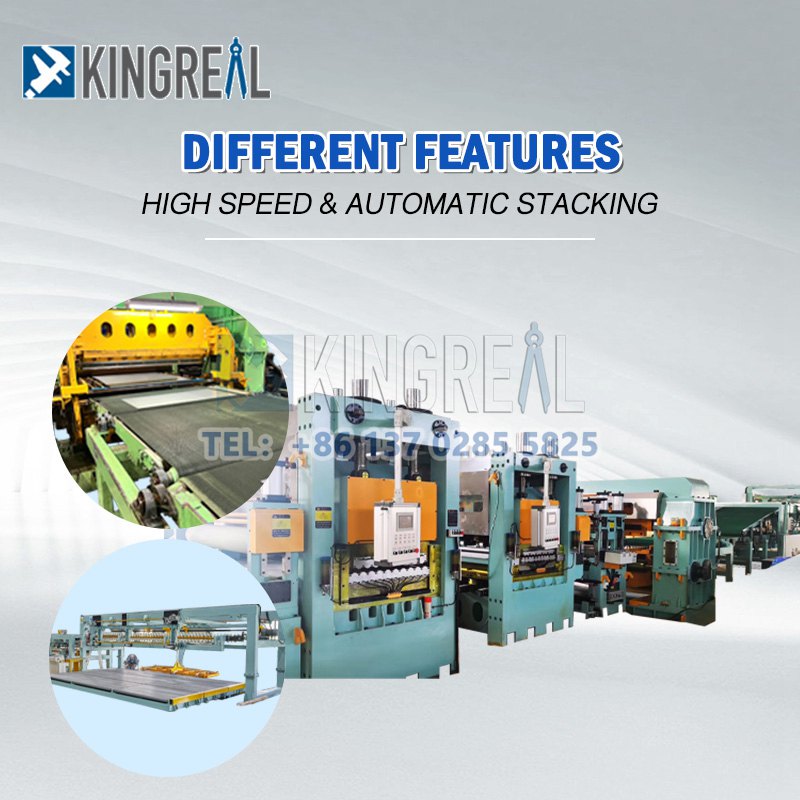

The high speed cut to length line is designed for fast processing and high precision. It cuts at high speeds without scratches or defects on the sheet surface.

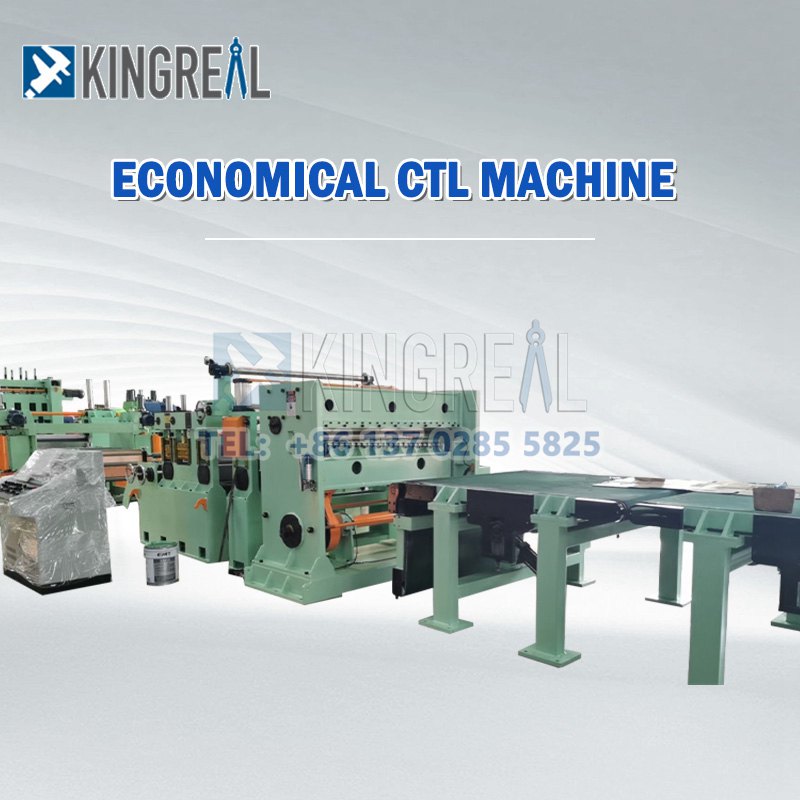

Economical Cut To Length Machine
Economical cut to length machines provide basic cutting capabilities for a variety of metal materials, but with reduced speed and accuracy compared to more advanced systems. This cut to length machine is suitable for businesses that require basic cutting functionality without advanced features.
Working Process Of Cut To Length Line:

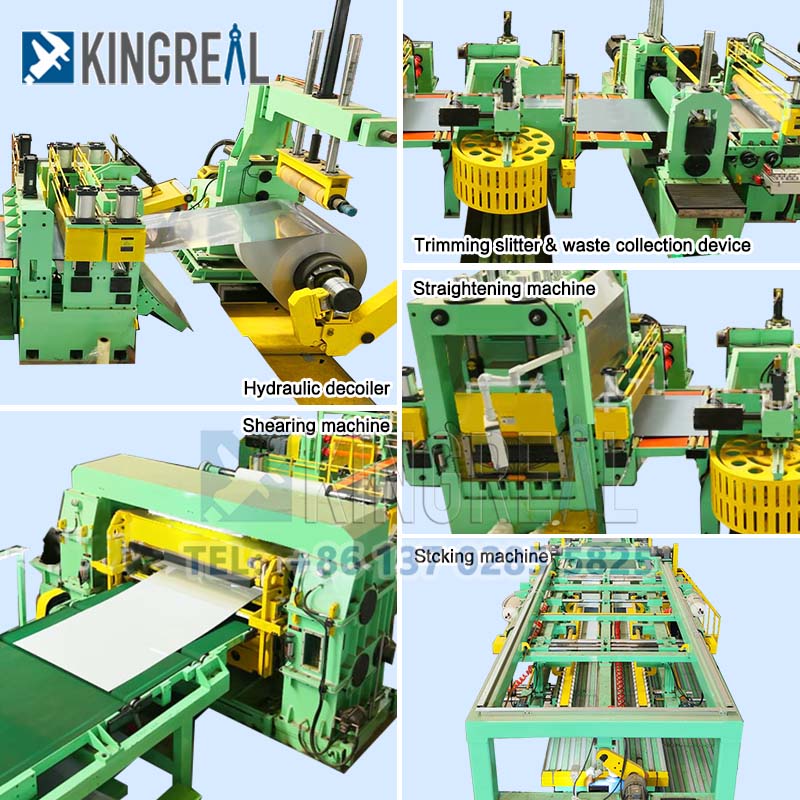

Trolley Of Loading Coil -- Hydraulic Decoiler -- Feeding Device -- High Precision Straightener -- Loop Bridge -- Servo Feeder -- Shearing Machine -- Auto Stack
Feature Of Cut To Length Machine:
The coil slitting line's decoiler unit adopts hydraulic collapsible roller, no harm to the bottom layer of material.
It can be stretch uncoiling or manual unloading, effectively prevent the material from deflection and scratching.
KINGREAL STEEL SLITTER design the hydraulic cantilever decoiler to supports coils and performs uncoiling.
Hydraulic cylinders are used to make the decoiler retractable and suitable for the coil inside diameter. It is equipped with a cantilever arm.

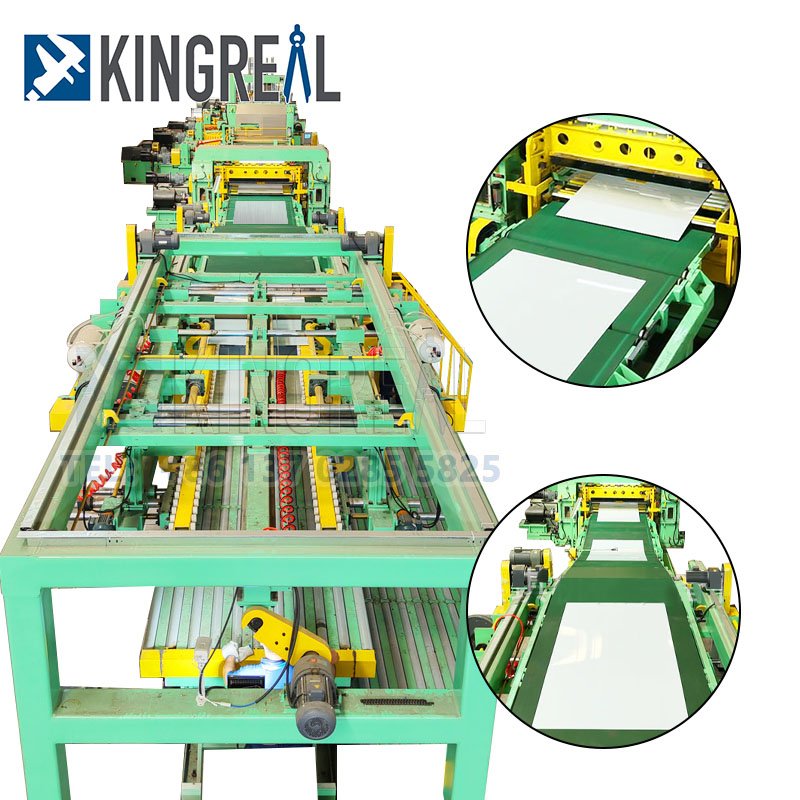

KINGREAL STEEL SLITTER designs automatic stacking machine configuration the cut to length production line to realize automatic stacking production.
Reference Specification Of Cut To Length Machine
|
Coil Width |
25.4mm-3.65mm |
|
Coil Thickness |
0.12mm-25.4mm |
|
Coil Weight |
up to 60,000 |
|
Speeds |
up to 70m/min |
|
Materials |
Hot-rolled, Cold-rolled, PPGI, Silicon steel, Aluminum, Galvanized, Pre-painted |
|
Shaft Diameter |
110mm |
|
Machine Frame |
350H steel welding |
|
Drive Motor Power |
5.5kw |
|
Leveling Rollers |
up layer 5 rollers down layer 6 rollers |
|
Cut Power |
Hydraulic power |
(The parameters of the cut to length line will be modified according to the different production needs of customers)
Why Choose Us:
Complete cut to length production line solutions
Rich experience in production and sales
Machine quality and safety assurance
Professional technical team and after-sales team
FAQ:
KINGREAL STEEL SLITTER factory is located in Foshan city, Guangdong Province. So there are two ways to our city.
One is by flight, direct to Foshan or Guangzhou Airport. Another is by train, direct to Foshan or Guangzhou station.
KINGREAL STEEL SLITTER will pick you up at the station or airport.
In order to help our customers to solve cut to length machine installation problems, KINGREAL STEEL SLITTER will provide both online and local installation services FOR FREE!
