Complete Coil Punching Blanking Line Solution

Complete Coil Punching Blanking Line Solution are available from KINGREAL Machinery. These coil perforation lines can handle a variety of material kinds and perforation patterns. As a skilled coil process equipment maker, KINGREAL will expertly develop drawings in accordance with clients' requirements.

Send Inquiry    PDF DownLoad

Product Description

Video About One Of The Complete Coil Punching Blanking Line Solution

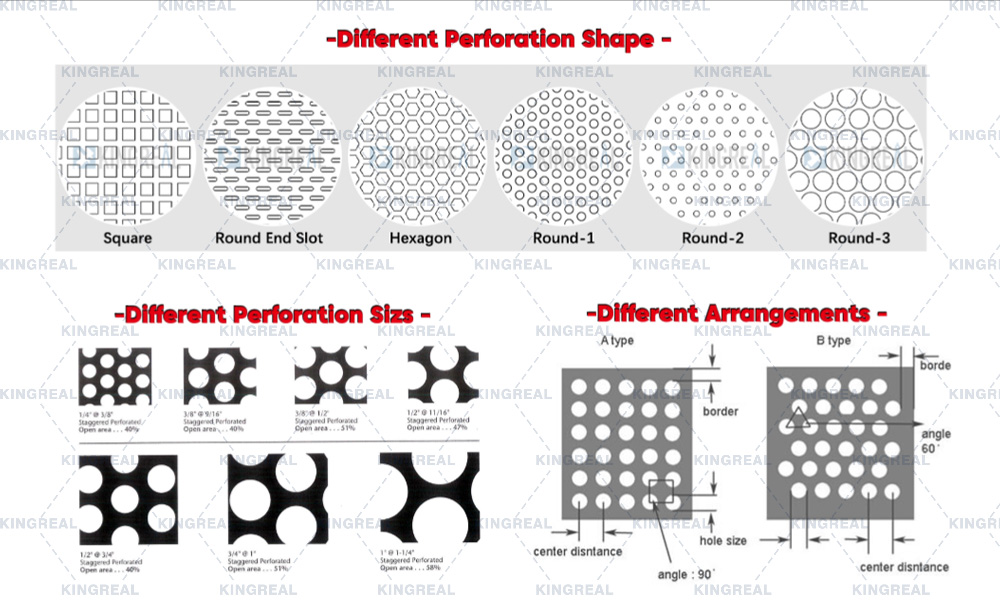

KINGREAL can supply different solution of perforated production line


perforated sheet making machine

What Is Complete Coil Punching Blanking Line Solution?

perforated sheet punching machine

The use of perforated coils offers even more advantages than regular raw panels. The ability to punch holes in the coil rather than just the sheet greatly reduces raw material costs.

Perforated coils are also commonly used in industry, such as partitions, enclosures, signage, security protection, screens, etc.


With the increasing demand for perforated coils in the market, demand-related factories are constantly seeking perforation lines that match their products. Therefore, KINGREAL will provide complete perforated coil production line solutions to meet different customers' production needs.

perforated platesFor example:metal perforating machine

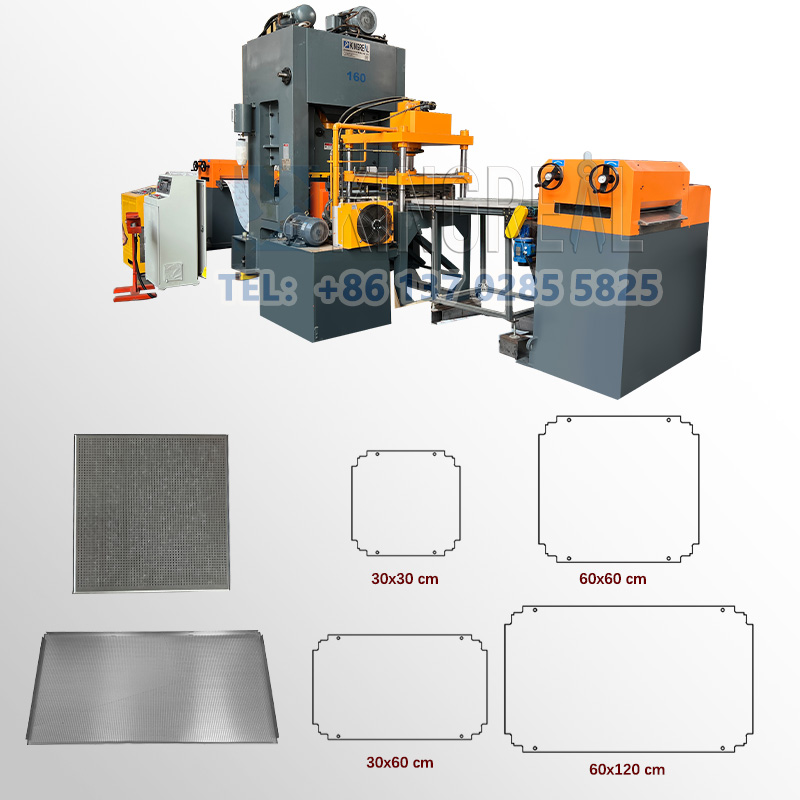

Metal Ceiling Perforated Production Line

For the sheet forming or suspended ceiling factory to produce perforated metal ceiling tile or other relate panel.

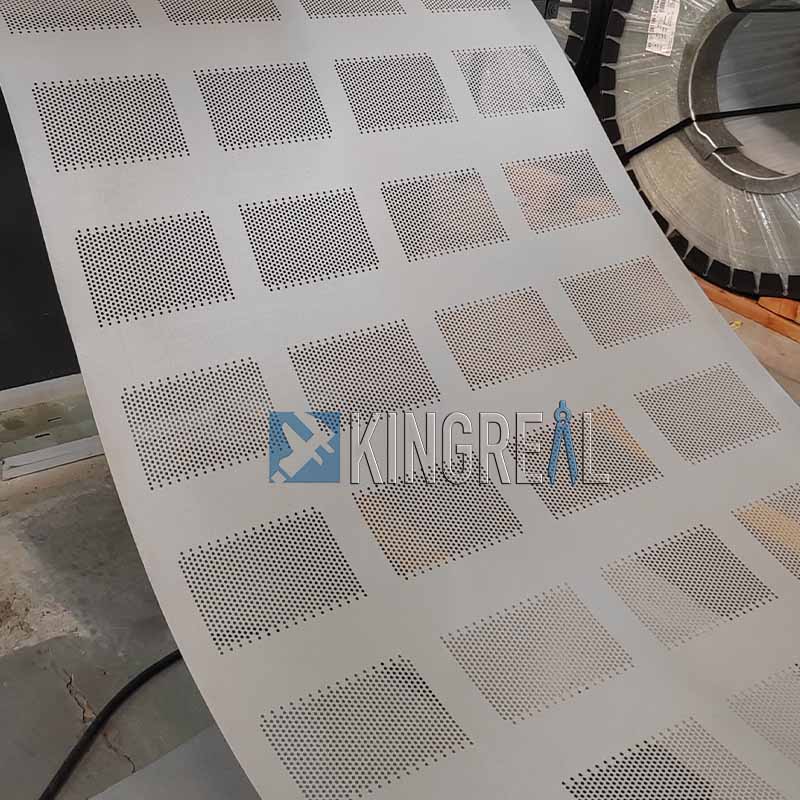

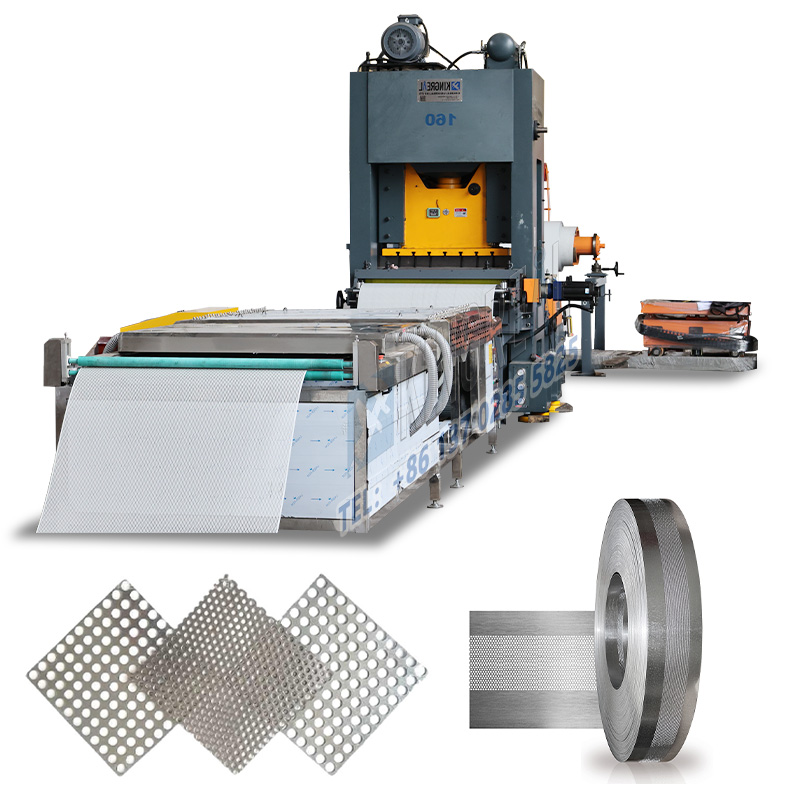

Sheet Coil Perforated And Rewind Production Line

The Coil Perforation Line is specially designed for the production of perforated coil raw materials. The basic process is by unrolling and punching the coil and finally winding it up into perforated coil raw materials. The coil perforated raw material is put into use in a variety of industries.



Other Customized punching lines with different combination types

For different production needs, KINGREAL will also have engineers dedicated to custom design. The whole punching line can be used in combination, for example, with metal sheet degrease machine and acoustic fleece sticking machine, etc.

metal punching machine

perforated steel platesMain Component Detail Of The Coil Perforated Production Line:

Mechanical decoiler

We offer a hydraulic decoiler and a manual decoiler with an integrated hydraulic core expansion system to adapt to changing demands.

Additionally, a trolley option is available for fully automatic metal loading.



The High Precision Straightener

The device offers highly accurate straightening. We increased the number of accuracy rolls by two to verify that the materials are straight. The precision of the final items is thereby increased.

Leveling rollers are made of 40Cr round bars that have undergone thermal refinement, high frequency quenching, double electroplating, and precise grinding. They are smooth, free of blemishes, harder than HRC 62, and controlled by four threaded rods.

steel hole punch machine

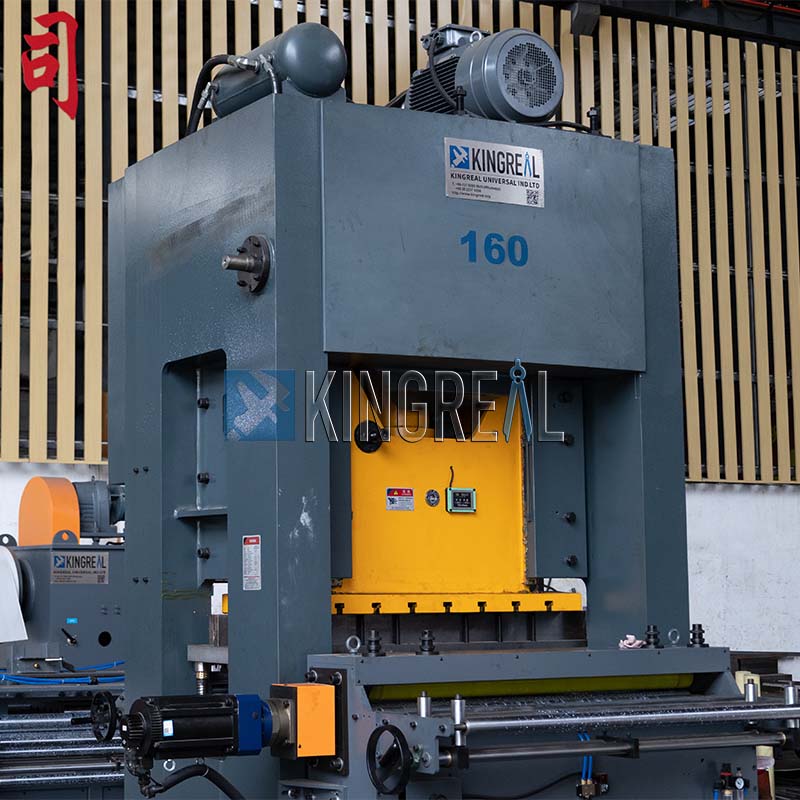

Punching Machine

Using pressure on a die that the workpiece is held in, a punch press can alter the size or shape of a piece of material, often sheet metal. The shape that is created on the workpiece is determined by the die's design and structure.



A punch press includes two cooperating parts: the punch, which is coupled to the machine's reciprocating ram, and the die, which is secured onto a flat bed or anvil that is parallel to the ram's path.



KINGREAL Punching dies can be custom designed to meet different hole requirements of customers and can be replaced.

sheet metal punch press

perforated metal machineTechnical Specification Of  Coil Punching Blanking Line

Maximum stamping width

1.25m

Punching speed

45-70 times/min

Maximum stamping thickness

2.0mm

Aspect

2500x1800x2000mm

Control way

digital control

Power

7.5kW

Weight

5500kg

metal perforated panelWorking Process Of Metal Ceiling Tile Perforation Line

Hydraulic Decoiler → High Precision Straightener → High Speed Gantry Perforation Machine → Notching And Shearing Press → Output Table

aluminium punching machine

Advantage Of The Punching Blanking Line

1.Superior Electrical Application

KINGREAL employ top-notch foreign electrical appliances, like Japanese Yaskawa NC servo feeders, FATEK PLC, and MCGS touch screens, to assure the steady and uninterrupted operation of our equipment.


Self-developed software and support for multiple languages

Self-developed software that we integrated onto our computers makes them more capable and professional. Additionally, we are able to offer a multilingual operation interface in languages including English, Spanish, Russian, and others.

Because of this, our devices are simpler to use and offer a better user experience.

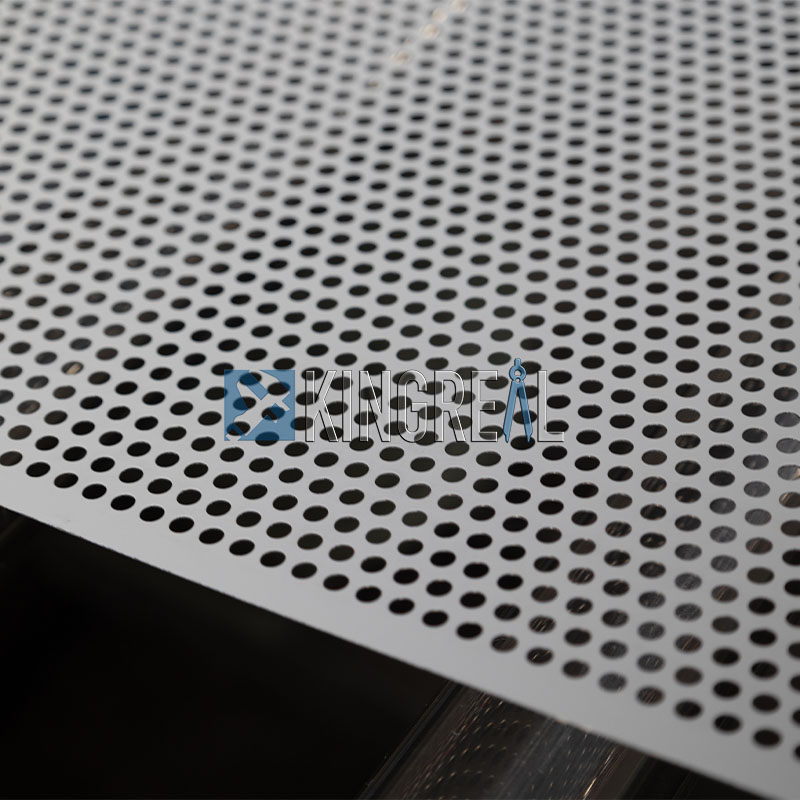

Product Display:

perforated sheet metal panels

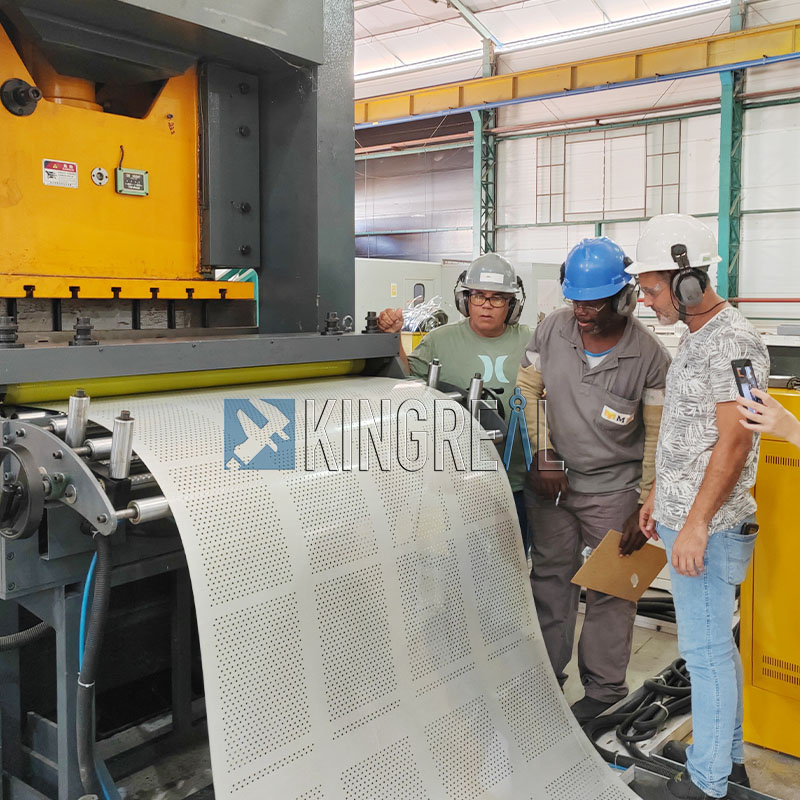

Our Project:

punching press machine


Metal Perforated Making Machine Manufacturing Process
