Video About Metal Cross-Cutting Line

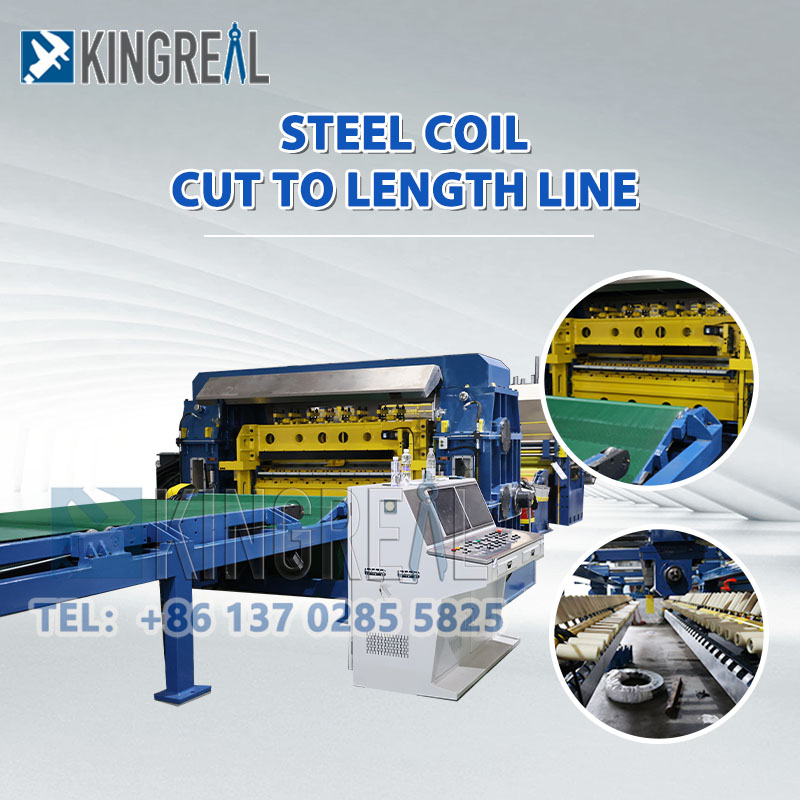

Definition of Metal Cross-Cutting Line

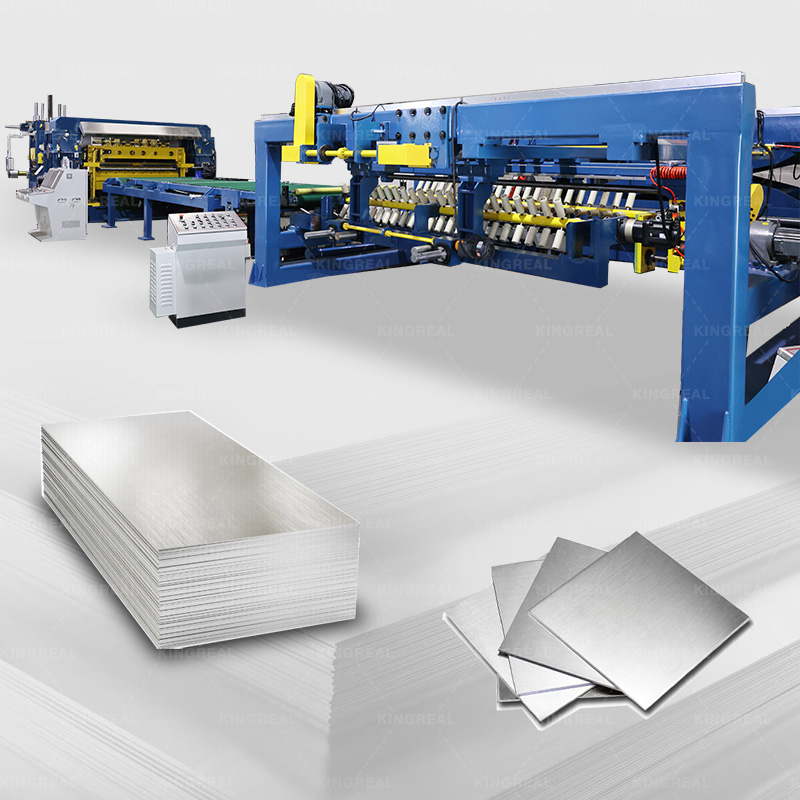

The metal cross-cutting line is capable of performing processes such as uncoiling, leveling, length measurement, shearing, and stacking. This metal sheet cross-cutting line primarily consists of a decoiler, a leveler, a length-measuring device, a cut-to-length machine, conveyors, a stacker, as well as hydraulic, pneumatic, and electrical control systems; together, these components ensure high precision in both material feeding and shearing operations. This metal cross-cutting line is widely applicable to cold-rolled or hot-rolled carbon steel, tinplate, stainless steel, and various metal materials featuring surface coatings.

Technical Parameters of Metal Cross-Cutting Line

Features of Metal Cross-Cutting Line

●Precision Cutting: The KINGREAL STEEL SLITTER metal sheet cross-cutting line is equipped with a high-precision length-measuring device and a servo control system, enabling millimeter-level positioning accuracy. Cut sheets are guaranteed uniform lengths and clean, flat edges free from burrs or deformation thanks in this way guaranteeing product quality consistency from the start. This improves general production efficiency and helps to eliminate the requirement for further treatment processes. The cutting accuracy of this metal cross-cutting line is improved by more than 30% compared to conventional manual cutting techniques, hence reducing the scrap rate resulting from dimensional variances and reducing unwanted material waste for the business. ●Wide Applicability: The KINGREAL STEEL SLITTER metal sheet cross-cutting line can efficiently process a diverse range of metal materials—including steel, stainless steel, aluminum, and copper—covering various specifications ranging from thin sheets to medium-to-thick plates. The system offers steady and dependable cutting performance whether managing regular metal sheets or those with particular surface treatments. Moreover, the metal cross-cutting line gives the flexibility to change processing parameters based on the specific manufacturing standards of several sectors, hence fitting a large range of production demands. Processing of several sheet types is possible in one unit, therefore eliminating the need for regular machine switches and hence lowering the enterprise's capital expenditure expenses.

●Enhanced Efficiency: The KINGREAL STEEL SLITTER metal sheet cross-cutting line achieves fully automated operation across the entire workflow—from coil unwinding and leveling to precise length measurement, shearing, and stacking. Eliminating manual handling steps totally, it significantly lowers manual cutting time—usually by more than 60%—and demands no physical intervention along the whole procedure. Making it ideally suited for high-volume manufacturing environments, a single metal cross-cutting line can help companies quickly fulfill orders by five to eight times more than conventional manual methods in terms of daily output. ●Cost Savings: Leveraging precise cutting technology, the KINGREAL STEEL SLITTER metal sheet cross-cutting line minimizes sheet metal waste, boosting material utilization rates by 10% to 15%. Over the long term, this translates into substantial savings on raw material costs for the enterprise. Furthermore, automated operation reduces labor requirements and mitigates losses caused by human error. With its stable performance, low failure rate, and minimal maintenance costs, the system helps enterprises reduce overall operational costs by over 20% compared to traditional processing methods, thereby achieving a dual enhancement in both economic benefits and production efficiency. ●Customization Services: Recognizing that processing requirements vary across different enterprises, the KINGREAL STEEL SLITTER metal cross-cutting line offers fully customizable designs. We can tailor exclusive metal sheet cross-cutting line solutions based on specific client requirements regarding sheet length, width, and thickness, as well as the practical demands of their production environment. Whether for batch production in small processing workshops or large-scale processing operations within major enterprises, our metal cross-cutting line solutions provide a precise and perfect fit.

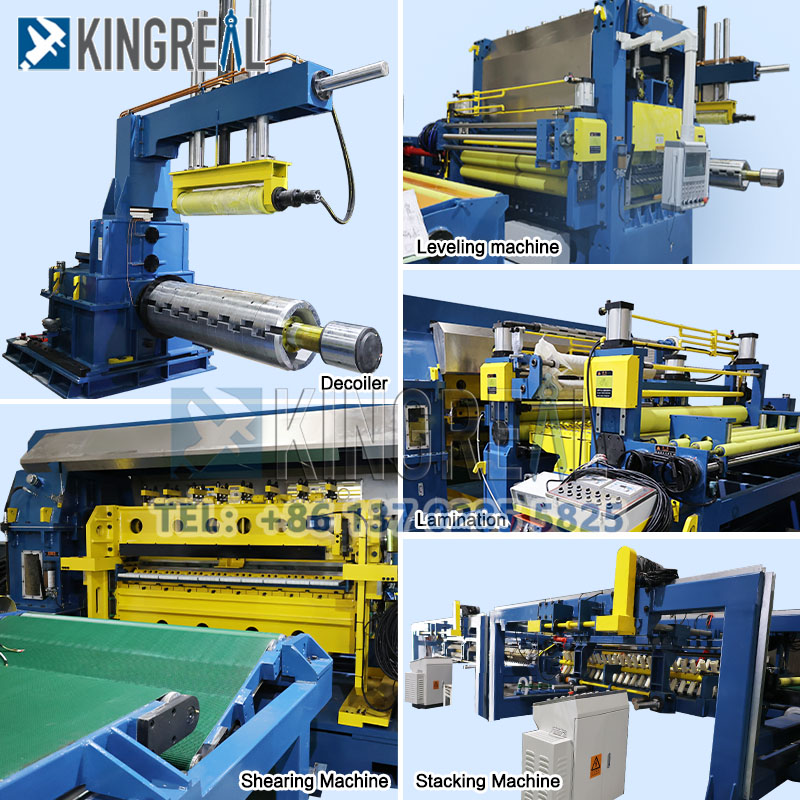

Main Components of Metal Cross-Cutting Line

Decoiler: The decoiler allows multiple coils awaiting processing to be pre-loaded at the loading station, eliminating the need for frequent production stoppages to switch coils and significantly enhancing production continuity. This unit is available in single-head or double-head configurations, offering flexible options based on the client's production volume and coil specifications; the double-head configuration enables simultaneous processing of one coil while the next is being prepared, facilitating uninterrupted 24-hour production.

Leveler: Sheet metal in its coiled state is prone to issues such as curvature and wrinkling, which can compromise subsequent cutting precision. The leveler integrated into the KINGREAL STEEL SLITTER metal sheet cross-cutting line features a variety of design options—including 2HI, 4HI, and 6HI roller structures—allowing for flexible selection based on the specific thickness and material properties of the sheet metal being processed. The leveling rollers undergo a specialized hardening treatment, achieving a hardness of HRC 55-60. This endows them with exceptional wear resistance and a long service life, ensuring they are highly resistant to abrasion and deformation. Furthermore, the gap adjustment mechanism for the leveling rollers offers selectable options—manual, hydraulic, or motor-driven—providing convenient operation. This allows for the precise elimination of wrinkles and curvature in the sheet metal, ensuring absolute flatness and laying a solid foundation for subsequent precision cutting.

NC Servo Feeding Rollers / Encoder: Feeding accuracy directly determines the cutting precision of a metal cross-cutting line. KINGREAL STEEL SLITTER metal sheet cross-cutting lines utilize a pair of high-precision feeding rollers, driven by an AC servo motor (or AC variable frequency drive). These rollers execute precise sheet feeding based on preset length parameters, offering rapid positioning and extremely high accuracy, with feeding errors controlled within ±0.1 mm. The gap between the feeding rollers is controlled by pneumatic cylinders, which automatically adjust to accommodate varying sheet thicknesses, thereby preventing any damage to the material. When operating in "tensioning" mode, sheet length measurement is handled by an encoder assembly; this component monitors the feeding length in real-time, ensuring that the dimensions of every cut sheet segment are precise and error-free.

Shearing Unit: As the core processing component of the metal cross-cutting line, this unit is responsible for cutting coiled metal into individual sheets of the required length, thereby directly determining the final quality of the product. KINGREAL STEEL SLITTER offers a variety of shearing methods for this unit—including fly shearing, swing shearinng, rotary shearing, and fixed shearing—allowing for flexible selection based on the material type, thickness, and required cutting speed. Whether performing high-speed cutting or precision cutting, the unit consistently produces clean, flat edges free of burrs and deformation. The blades within the shearing unit are crafted from high-strength, wear-resistant materials and undergo precision machining; this ensures a long service life, reduces the frequency of blade replacements, and lowers maintenance costs.

Conveying Unit: The conveying unit within the KINGREAL STEEL SLITTER metal sheet cross-cutting line operates smoothly and features adjustable speeds, effectively preventing issues such as scratching or collision of the sheet metal during transit. The conveying unit operates fully automatically—requiring no manual intervention—to rapidly transport the cut sheets away from the shearing station. This ensures the operational continuity of the metal cross-cutting line and further enhances overall production efficiency.

Stacking Unit: The stacking stage directly impacts the storage and subsequent utilization of finished metal sheets. KINGREAL STEEL SLITTER metal sheet cross-cutting lines offer optional pneumatic or electromagnetic stacking units—selectable based on client requirements—to accommodate the stacking of sheets of varying materials and specifications. This unit is equipped with a specialized air-blowing mechanism that effectively prevents surface scratches during the stacking process, thereby preserving the surface finish of the sheets; this feature is particularly well-suited for processing metal sheets with surface coatings. Furthermore, the system supports both longitudinal and transverse stacking modes, allowing for flexible adjustment based on available storage space and sheet dimensions. The resulting stacks are neat and secure, facilitating subsequent warehousing, transportation, and usage.

Advantages of Choosing KINGREAL STEEL SLITTER Metal Cross-Cutting Line

Profound Industry Experience: Leveraging over two decades of experience in metal sheet cross-cutting line design and manufacturing, KINGREAL STEEL SLITTER has deeply cultivated the field of metal cross-cutting line. We possess a profound understanding of each client's production requirements and industry pain points, enabling us to accurately anticipate technological trends in metal sheet cross-cutting lines and engineer high-quality equipment that precisely aligns with industry demands.

Rigorous Quality Assurance: Every component and production step within KINGREAL STEEL SLITTER metal cross-cutting lines undergoes rigorous inspection. From raw material procurement through equipment assembly and commissioning, we enforce high-standard quality control throughout the entire process. This ensures that every metal sheet cross-cutting line operates stably and offers exceptional durability, thereby minimizing equipment failure rates and reducing production downtime losses for our clients.

Global Service: KINGREAL STEEL SLITTER provides high-quality metal cross-cutting line and a comprehensive suite of supporting services to clients across various countries and regions worldwide. Whether the need involves equipment consultation, model selection, installation, commissioning, or maintenance, we respond swiftly to ensure there are absolutely no delays in our clients' production schedules, thereby offering them complete peace of mind.

Cost-Effective Solutions: While uncompromising on the quality and performance of our metal sheet cross-cutting lines, KINGREAL STEEL SLITTER optimizes production processes and reduces manufacturing costs to deliver highly cost-effective metal cross-cutting line solutions. This enables enterprises to acquire high-quality metal sheet cross-cutting lines at affordable prices, thereby significantly lowering their initial capital investment in metal cross-cutting line.

Comprehensive Technical Support: KINGREAL STEEL SLITTER maintains a dedicated technical team ready to provide immediate assistance regarding the installation, commissioning, and maintenance of our metal sheet cross-cutting lines. We also provide periodic operational training and maintenance guidance to help clients quickly master equipment operation techniques and standardize maintenance procedures, ensuring that the metal cross-cutting lines consistently operate at peak performance and deliver their full operational potential.

FAQ About Metal Cross-Cutting Line

Q1: Do you offer metal sheet cross-cutting line installation assistance services?

A1: Yes. The KINGREAL STEEL SLITTER team provides on-site metal cross-cutting line installation services for our clients. Our professional technicians will visit your factory to provide guidance, taking full responsibility for the installation and commissioning of the metal sheet cross-cutting line to ensure it operates smoothly and without faults. Additionally, we provide basic operational training to help clients quickly get up to speed with using the metal cross-cutting line.

Q2: Do you offer customized metal sheet cross-cutting line services?

A2: Yes. With years of deep expertise in the industry, KINGREAL STEEL SLITTER possesses extensive experience in customized metal cross-cutting line design. We have successfully designed exclusive metal sheet cross-cutting line manufacturing solutions for clients across numerous countries and regions—including Russia and Indonesia—to meet their specific industrial production requirements. Whether the need involves specific dimensions, material compatibility, or functional upgrades, our solutions are precisely tailored to align with our clients' exact needs.

Q3: What measures should be taken to ensure the metal cross-cutting line is utilized fully and efficiently?

A3: The preventive maintenance required for KINGREAL STEEL SLITTER metal sheet cross-cutting lines primarily includes: regularly cleaning machine components to remove metal shavings and dust from both the surface and interior of the metal cross-cutting line, thereby preventing component wear; making precise adjustments to various assemblies when necessary to ensure operational accuracy; and ensuring that all moving parts are adequately lubricated to extend their service life. The KINGREAL STEEL SLITTER technical team provides detailed operational guidelines and offers robust assistance regarding system maintenance, helping clients standardize their maintenance procedures to maximize the performance of their metal sheet cross-cutting lines.

Q4: Is the metal cross-cutting line suitable for large-scale mass production operations?

A4: Yes. When designing our metal sheet cross-cutting lines, KINGREAL STEEL SLITTER focuses not only on achieving high efficiency and high production capacity but also on ensuring exceptional precision and repeatability throughout the production process. This metal cross-cutting line features fully automated operations that require minimal manual intervention, enabling continuous production and significantly boosting manufacturing efficiency. It is perfectly suited for use across a wide range of industries involved in large-scale processing and manufacturing.
