Cut To Length Machine - Swing Shearing is design for high speed shearing process, which speed up to 80M/Min. Provide whole solution of cut to length line, welcome to contact us!

Model:KR-CTLSS

Send Inquiry    PDF DownLoad

Product Description

Video Of Cut To Length Line Machine


Cut To Length Machine - Swing Shearing Description:

Swing Shearing Cut To Length Line is one of the most distinctive products in the metal

cut-to-length line. By customizing the design of the shear, it successfully realizes the

production of continuous swing cutting without stopping during the production process.


It is mainly suitable for CR SS AL and other common materials, and can accurately cut

according to the customer's production size requirements. Compared with the common

stop shear production line, this rotary shear cut-to-length line has the effect of faster

production speed (20M/Min & 80M/Min), higher precision and better cutting surface quality.

It has become oneof the most popular products recently.


At the same time, compared with the common metal cut-to-length line, this Swing

Shearing cut-to-length line can cut the metal plate (trapezoidal metal plate) without

specifications, and then a large proportion of the demand for automotive parts production

and manufacturing.


cut to length line


Working Process:


metal cut to length line

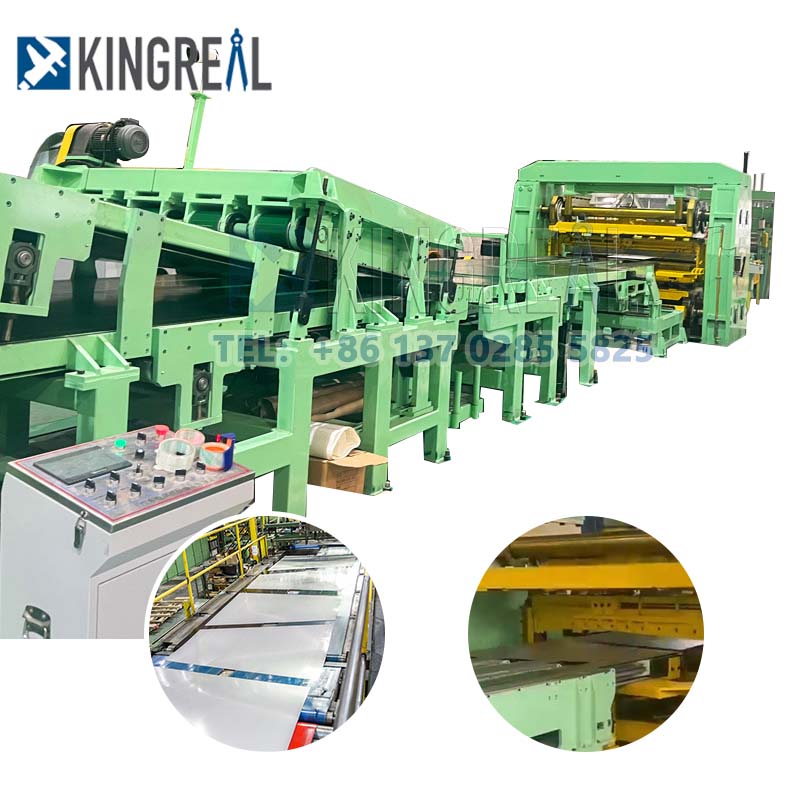

Hydraulic Decoiler -- Pinch&Straightener -- Servo Cut Length -- Rotary Shearing Machine -- Conveyor Belt --Auto Stack


Technical Specification:

Raw Material
Steel/Aluminum/CR/HR
Coil Thickness
0.3-3MM
Coil Width
400-1600
Coil Weight
20 Ton
Cutting Accurate
±0.3MM
Working Speed
80M/Min
Number Of Shears
150PS

Optional Configuration Requirements


steel cut to length line
metal cutting machine
steel cutting machine
Double Straightener Trimming Device Double Stack

Machine Feature

  • A single machine that uses 21 sets of upper and lower double rollers to provide a high degree of precision in the leveling of materials;
  • High-precision shearing can be achieved with an automatic gap adjustment precision rotary shear;
  • High-efficiency material stacking with a high-capacity indexed servo stacker;
  • Maximum line speed of 80 m/min: to guarantee rapid production;
  • Minimum tolerances for length: to guarantee precise shear lengths;
  • Eliminating the necessity for a circulation pit reduces line length and frees up more room for goods.
  • Equipping already-existing start-stop lines with a retrofit increases the functionality of the machinery.

Main Component Detail:

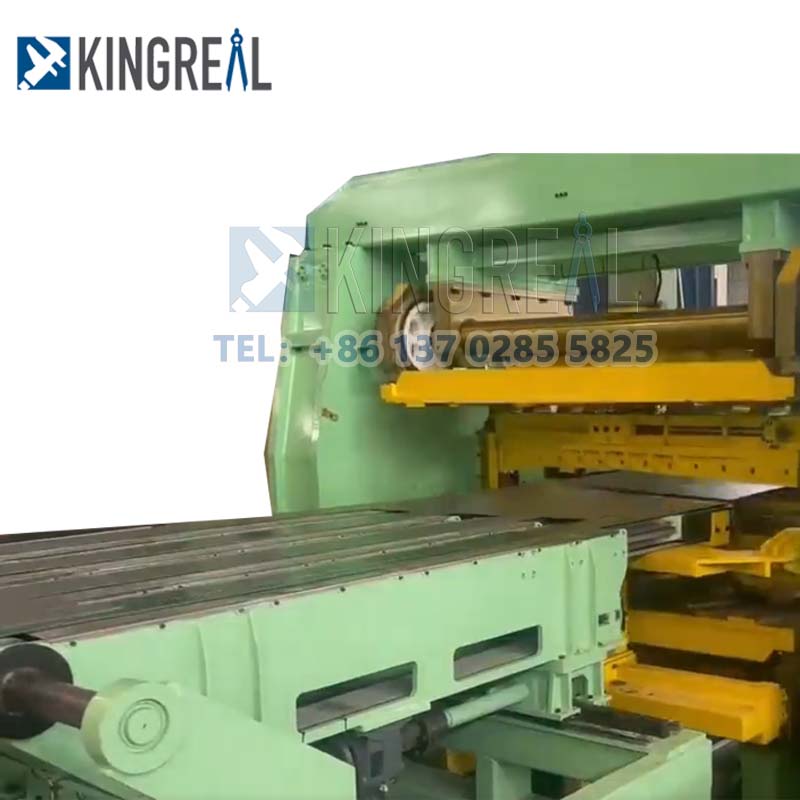

Ø Swing shear Machine


A cylindrical structure set coaxially: the internal shearing mechanism and the external shearing mechanism are set coaxially to provide a stable shearing environment.

Passageway and shearing edge: the external shearing mechanism can be socketed on the outer periphery of the internal shearing mechanism to form a passageway for the raw material to be sheared to pass through, and a shearing edge is formed on the side of the passageway.

Rotary drive mechanism: Used to drive the relative rotation between the internal and external shear mechanism, so that the shear blade to act on the raw material to be cut and shear.

Low shear resistance and uniform rotating shear gap: this design makes the shear stability greatly improved, low mold loss and long service life.

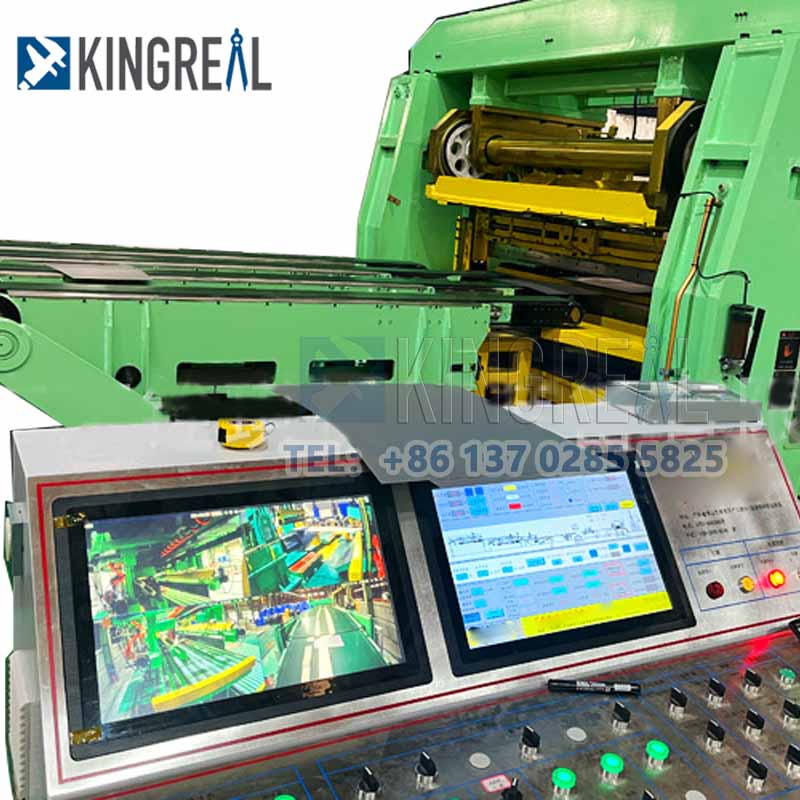

Simple and convenient operation: the control of the cutting process is on the same device, simplifying the workflow and facilitating operation and maintenance.


metal cut to length machine
cut to length metal

Ø Leveler Machine

Removing corrugations and distortions of the material: eliminating unevenness of the metal strip produced during the winding process through multi-roll leveling.

Adjustment of material straightness: Ensure that metal strips maintain good straightness before and after shearing, avoiding subsequent processing due to material bending.

Improve shear accuracy: Flat material helps to improve the shear accuracy of the rotary shear and reduce the production scrap rate.


Ø Double Stacker

Highly efficient stacking: the double stack can handle two different stacking positions at the same time, increasing production efficiency.

High-speed operation: Matched with the high-speed shearing of the rotary shear, it ensures continuous operation of the entire production line.

Reduced manual intervention: automated stacking reduces the need for manual handling and reduces labor intensity.

Improve product quality: automated stacking reduces sheet damage during handling and maintains product integrity and quality.

Save space: the double stack design makes the line more compact and saves factory space.



coil cut to length machine

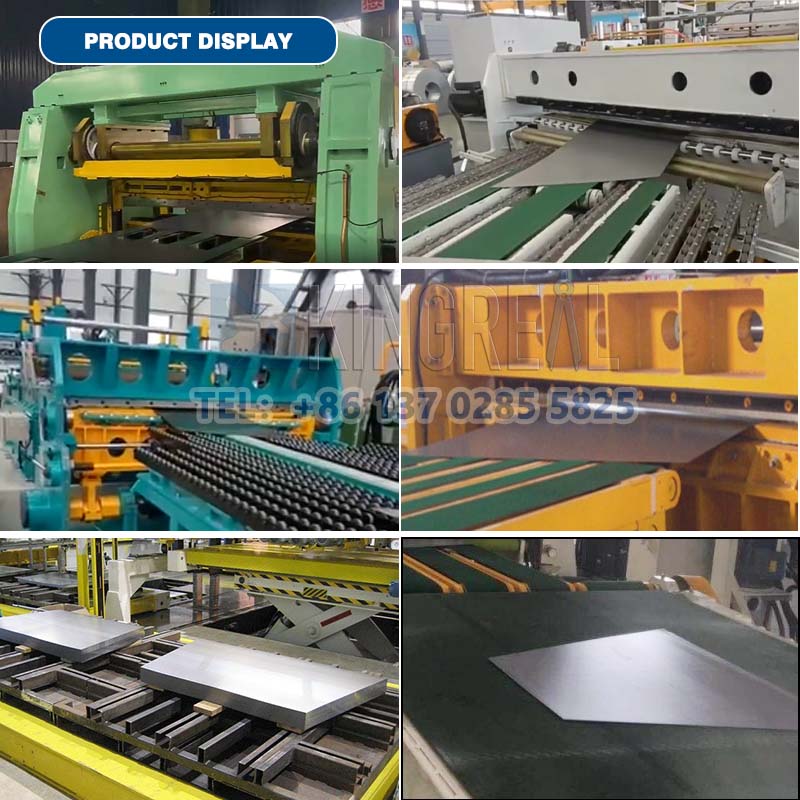

Final Product Display:



coil cut to length


Related Articles:


1. What is the production principle of cut to length machine?

2. Key configuration features of metal cut to length line?

3.How to control the product precision of KINGREAL metal shearing line?



About Us:

Coil-slitting machine factory


KINGREAL SLITTER is a professional manufacturer of coil processing equipment in China, the main products include Coil Slitting Machine, Cut To Length Line and Coil Perforated Machine, from the design, production, assembly to the inspection and installation of the machine, KINGREAL SLITTER is a professional manufacturer of coil processing equipment in China, the main products include Coil Slitting Machine, Cut To Length Line and Coil Perforated Machine. KINGREAL SLITTER has more than 20 years of experience in manufacturing and sales, and we have been insisting on the concept of professional technical ability and providing the best solution for our customers.
