Metal Sheet Decoiler Leveling And Punching Production Line

As a professional coil process equipment manufacturer, KINGREAL can provide completely solution, such as coil slitting machine and coil cut to length machine. And also can provide Metal Sheet Decoiler Leveling And Punching Production Line for customer.

Send Inquiry    PDF DownLoad

Product Description

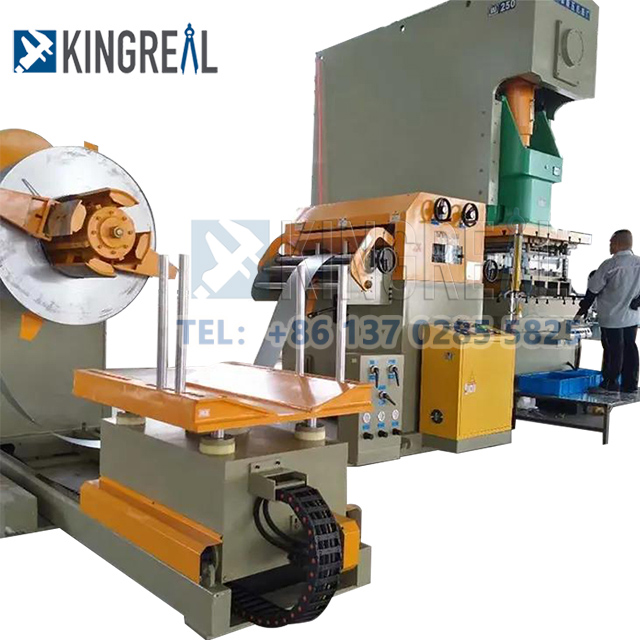

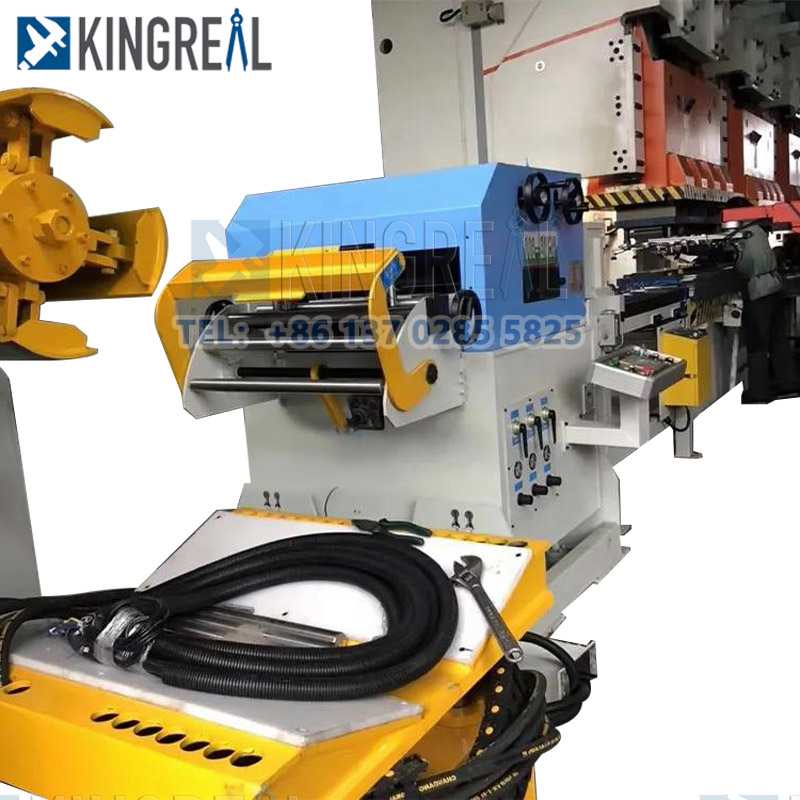

Description Of Metal Sheet Decoiler Leveling And Punching Production Line

KINGREAL decoiler leveling and punching production line is a manufacturing process that involves leveling and punching materials such as metal sheets.

The process begins with uncoiling and feeding the materials into the leveling machine which removes any curvature and achieves a flat surface. The material is then transferred to the punching machine where holes are punched according to specific needs or patterns.The finished product is then cut to size and stacked for further processing or shipping.


In addition to this line, KINGREAL, as a specialized manufacturer of sheet processing equipment in China, can custom design different lines according to customer needs, including:





①Combine Decoiler And Leveling 2 In 1 Machine

②Combine Decoiler Straightener And Feeder 2 In 1 Machine

③Coil Slitting Machine

④Coil Cut To Length Production Line

Technical Specification

Des.

Specification

Model

NCMB-1300 /NCMB-1500 /NCMB-2000

Material Width

6000/ 7000-10000-15000/ 8000-1000-15000 mm

Material Thickness

0.5-2 mm

Coil I.D

D508-610MM

 Speed of feed

16m/min

Drive Roll

Feed 2

Uncoil Expansion

Hydraulic

Straightener Motor(HP)

4.4 / 5.5 / 7

Advantage Of This Decoiler Straightener And Perforation Line

High flexibility:



The whole perforated production line can be customized according to different needs, including material size, hole type, hole diameter, etc., to realize the production of personalized and customized punching products.



Automated operation:



KINGREAL Blanking Line Process is automated, which can reduce human intervention, lower employee labor intensity, improve production efficiency and reduce the risk of accidents.

Efficient production:



The uncoiling and leveling punching line can realize automatic production, which greatly improves production efficiency and reduces labor cost at the same time.



High precision:

The whole production line can automatically measure and correct material errors to ensure punching precision and product quality.



Application Of Decoiler Leveling And Punching Machine

The uncoiling and leveling punching line is mainly used for leveling, cutting and punching metal plates such as steel plates, stainless steel plates, aluminum plates, copper plates, etc. It is widely used in the processing industry of metal materials, such as automobiles


metallurgy, construction and machinery manufacturing.

Why Choose Us:

Provide Installation services

KINGREAL will offer both online and local installation services to assist our customers in resolving machine installation issues.

Our Professiona Team

KINGREAL has a dedicated technical staff of experts.

KINGREAL engineers can develop machines in accordance with the drawings supplied by customers and the associated production needs thanks to their strong professional aptitude and wealth of design expertise.

During the machine's creation, installation, and operation, resolve all technical issues.

Technical Support

Customers can get technical after-sales support from KINGREAL.

KINGREAL will make arrangements to send engineers to the customer's project for technical guidance in order to ensure the smooth installation and operation of the machines.

Up till this point, KINGREAL has assisted clients from Saudi Arabia, Russia, Mexico, and India in efficiently using the equipment.
