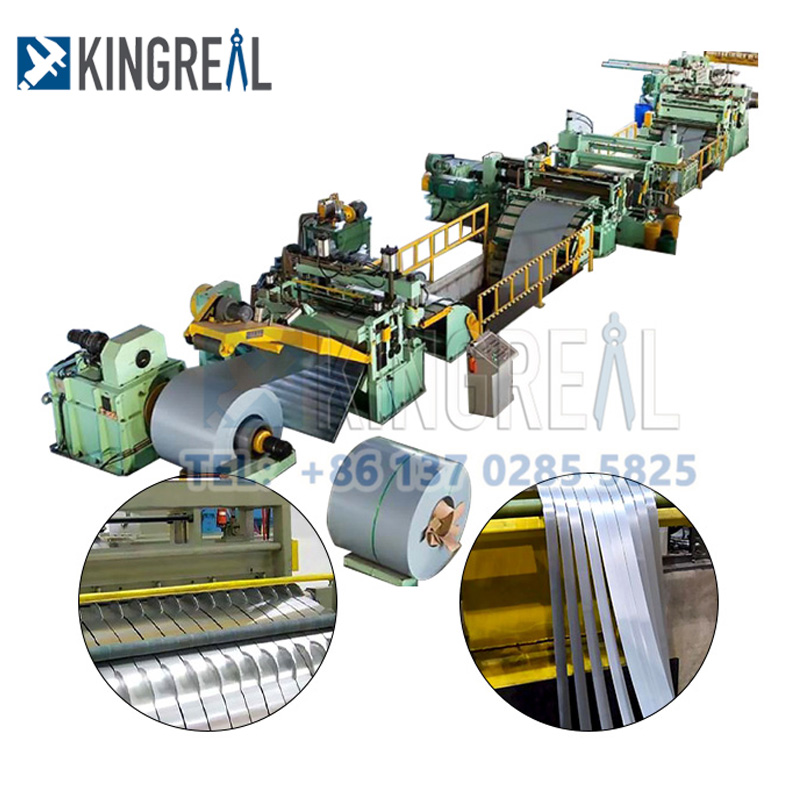

Full Auto CR Coil Slitter Rewinding Machine
  • Full Auto CR Coil Slitter Rewinding MachineFull Auto CR Coil Slitter Rewinding Machine

Full Auto CR Coil Slitter Rewinding Machine

KINGREAL has designed Full Auto CR Coil Slitter Rewinding Machine that can skillfully slit coils of different materials, including cold rolled steel, and is capable of realizing high-precision slitting results. As one of the professional manufacturers in China, KINGREAL slitting machine equipment has been successfully sold to many countries such as Saudi Arabia and India, welcome to contact us.

Send Inquiry    PDF DownLoad

Product Description

KINGREAL Coil Slitting Machine Running In Customer’s Factory:


Machine Description:

The Full Auto CR Coil Slitter Rewinding Machine is one of our feature product, as a professional coil process equipment manufacturer, KINGREAL has been focusing on the research and development of coil slitting machine manufacturing up to 20 years of time, has a wealth of experience in production and sales, can be customized according to customer needs to design different production lines.

Don't hesitate to provide us with your production requirements and we will immediately design a customized solution for you.


To produce high quality slitter cold rolled steel products, the KINGREAL cold rolled steel slitting machine primarily consists of a hydraulic decoiler, slitter, and rewind machine.Steel that has been cold rolled is known as cold rolled steel. The No. 1 steel plate is subsequently rolled to the desired thickness at room temperature to create a steel plate known as cold rolling. Cold-rolled steel sheets provide improved mechanical features than hot-rolled steel sheets, including more accurate thickness measurement, a smooth, beautiful surface, and better processing capabilities.


full auto coil slitting machine


Working Process:

steel coil slitting


Coil Car -- Hydraulic Decoiler -- Pinch & Pre-Straightener -- Side Guide -- High Quality Slitter -- Scrap Winder -- Loop Bridge -- Separator -- Rewinding


Technical Specification Of Full Auto Slitting Machine:

Material

Raw Material
Cold Rolled Steel And So On
Material Thickness
0.3-3mm
Material Width Range
1800-2000MM
Coil Weight
20Ton
Coil I.D
Φ508 mm/610mm
Coil O.D
φ1800mm(Max)
Production Line

Working Speed
0-220M/Min
Slitting Strips
2-15
Max slit quantity
8 pcs (3mm), 30 pcs(0.3mm)
Product Precision
±0.15MM


Main Components Details


Hydraulic decoiler and Rewinding device

Technology parements:


1. Structure Steel plate welded frame, hydraulic expansion and contraction mandrel

2. Load-bearing 15T

3. Steel coil inner diameter Φ508mm

4. Steel coil outer diameter MAX: Φ1800mm

5. Unwinding arc plate structure Cantilever type, four-piece curved plate structure

6. Expansion and contraction range of arc plate Φ470mm-Φ508mm

7. Feeding method Passive feeding;

8. unwinding power 11KW motor;


steel coil slitting machine

Main slitting machine

Technical Parameters


1. Structure Steel plate welded base, power gearbox, archway and frame

2. Slitting speed 120m/min

3. Tool shaft diameter Φ160mm×1600mm

4. Material 42CrMo

5. Cutter size Φ280mm×Φ160mm×15mm(Outter diameter*inner diameter*thickness)

6. Main motor power AC75Kw

7. Mobile archway motor Installed outside the rack, does not affect the installation of knives


metal slitting machine

Pre-separation frame tension machine

Technical Parameters:


1. Structure Steel plate welded base and frame

2. Quantity 2 sets

3. Spacer size Φ100×Φ200*3

4. Spacer size Φ100×Φ130×&

5. Intermediate pressure roller vertical lift


steel slitting equipment

Why Choose Us?

1.Whole Solution For Coil Slitting Machine


stainless steel slitting coil


KINGREAL can offer different solutions for the production of slitting machines according to the customer's needs. For example, according to different production materials, stainless steel and iron plate; according to different slitting requirements, adjusting the blade design; according to different speed requirements, providing double knife block to realize 220M/min high speed production.


2.Machine Quality Control


stainless steel slitting machine

To guarantee that each stage of the production process complies with the norms and specifications, KINGREAL has built a rigorous quality control method. This comprises acquiring raw materials, the manufacturing procedure, assembly, testing, etc. to make certain that the machine's components all adhere to quality standards.


Additionally, KINGREAL coil slitting machine has obtained a global CE certified certification.


3.Technical Support


stainless steel slitting machine

Technical Support in Saudi Arabia

KINGREAL will arrange engineers to go abroad to install the machine at the customer's place to ensure the normal operation of the machine, and will provide all technical guidance. Exact costs to be negotiated.
