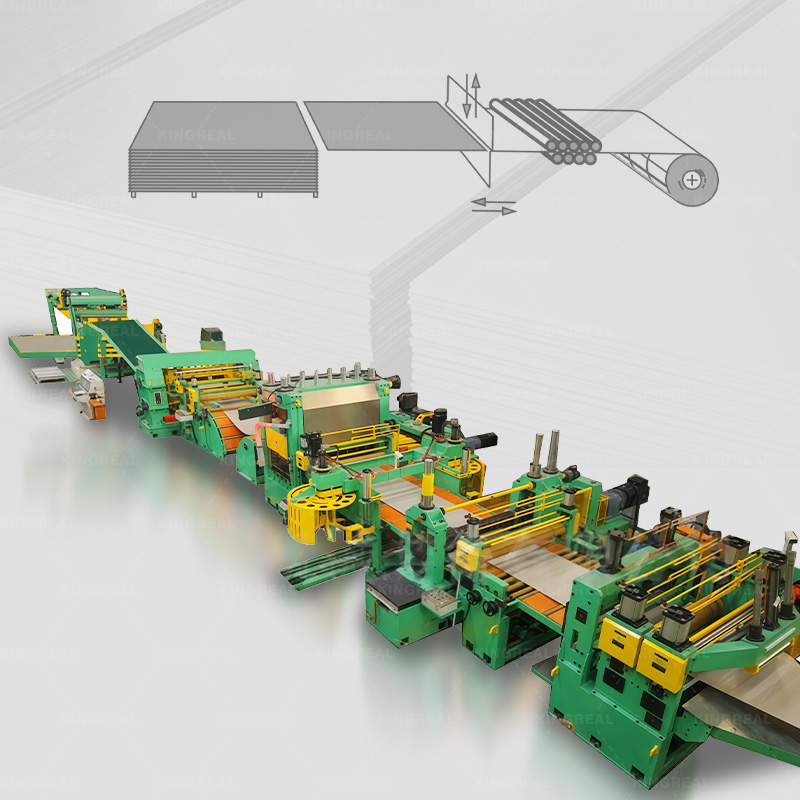

Coil to sheet cut to length machines enhance efficiency by precisely cutting large-format metal coils to specific lengths, providing rapid and accurate coil-to-sheet conversion services for industries such as construction, automotive, and home appliances.
|
KINGREAL STEEL SLITTER coil to sheet cut to length machines are dedicated to achieving precise coil-to-sheet cutting. From coil unwinding to the final shearing of finished sheets, the coil to sheet cut to length line ensures high-speed, accurate, and efficient operation, eliminating cutting deviations and guaranteeing that every sheet meets rigorous production standards. This coil to sheet cut to length machine offers broad compatibility, capable of easily processing a wide variety of common metal materials—including steel, stainless steel, silicon steel, copper, and aluminum. The coil to sheet cut to length line can process thin sheets as fine as 0.2 mm or thick-gauge plates up to 25 mm, therefore satisfying the several demands of several sectors. KINGREAL STEEL SLITTER coil to sheet cut to length machines ensure consistent flatness in the cut sheets while effectively minimizing edge burrs and material deformation, thereby ensuring that every inch of metal material is fully utilized. Consequently, these coil to sheet cut to length lines are widely adopted across numerous core industries, including automotive manufacturing, construction materials, and home appliance production. As a globally recognized professional manufacturer and supplier specializing in custom-designed coil to sheet cut to length machine solutions, KINGREAL STEEL SLITTER has cultivated deep expertise in the metal cutting sector over many years, providing clients worldwide with advanced and comprehensive coil to sheet cut to length line solutions. |
 |
Customized according to customer requirements
|
Model |
Material Width (mm) |
Thickness Range (mm) |
Speed (m/min) |
|
Model 1 |
120-600 |
0.3-2.0 |
10-120 |
|
Model 2 |
120-800 |
0.7-3.5 |
10-80 |
|
Model 3 |
400-1300 |
0.8-4.5 |
10-60 |
|
Model 4 |
600-1600 |
2.0-6.0 |
10-60 |
|
Model 5 |
900-1800 |
3.0-8.0 |
10-60 |
|
Model 6 |
1000-2000 |
6.0-16.0 |
10-30 |
|
Model 7 |
1000-2200 |
8.0-20.0 |
10-20 |
|
Model 8 |
1000-2500 |
8.0-20.0 |
10-20 |
|
High-Precision Cutting Equipped with an advanced hydraulic cutting system to ensure accurate sheet lengths and smooth, burr-free edges. |
Customizable Design Coil width, thickness, cutting length, and speed can be customized to meet specific production requirements. |
High Automation Integrates automatic feeding, uncoiling, cutting, and stacking to reduce manual labor and boost production efficiency. |
|
Stability and Durability Key coil to sheet cut to length line components are manufactured from high-strength materials, ensuring stable and reliable long-term operation. |
Multi-Material Compatibility Suitable for processing various metal coils, including steel, stainless steel, hot-rolled steel, cold-rolled steel, galvanized steel, and aluminum. |
High-Efficiency Production Supports continuous, high-speed cutting and stacking, making it ideal for large-volume coil processing and significantly increasing output. |
1. Processing of Materials with Varying Thicknesses
The KINGREAL STEEL SLITTER coil to sheet cut to length line is capable of processing materials ranging in thickness from 0.2 mm to 25 mm. Whether handling thin, precision metal coils or heavy-gauge industrial metal plates, this coil to sheet cut to length machine performs precise cutting in a single pass—eliminating the need for secondary processing and effectively reducing procedural redundancy. The coil to sheet cut to length line significantly enhances processing flexibility, accommodating production demands involving a wide variety of materials and specifications, thereby saving enterprises on equipment investment costs.
2. High-Speed Production Efficiency
The KINGREAL STEEL SLITTER coil to sheet cut to length machine boasts a maximum cutting speed of up to 80m/min. Powered by a stable transmission system and a precise control system, it achieves high-speed cutting while consistently maintaining uncompromised cutting accuracy. Compared to traditional manual cutting methods, the KINGREAL STEEL SLITTER coil to sheet cut to length line boosts production capacity by over 30%. It effectively resolves the inherent drawbacks of manual cutting—such as low efficiency, high error rates, and high labor intensity—while simultaneously reducing labor costs.
3. Modular Design

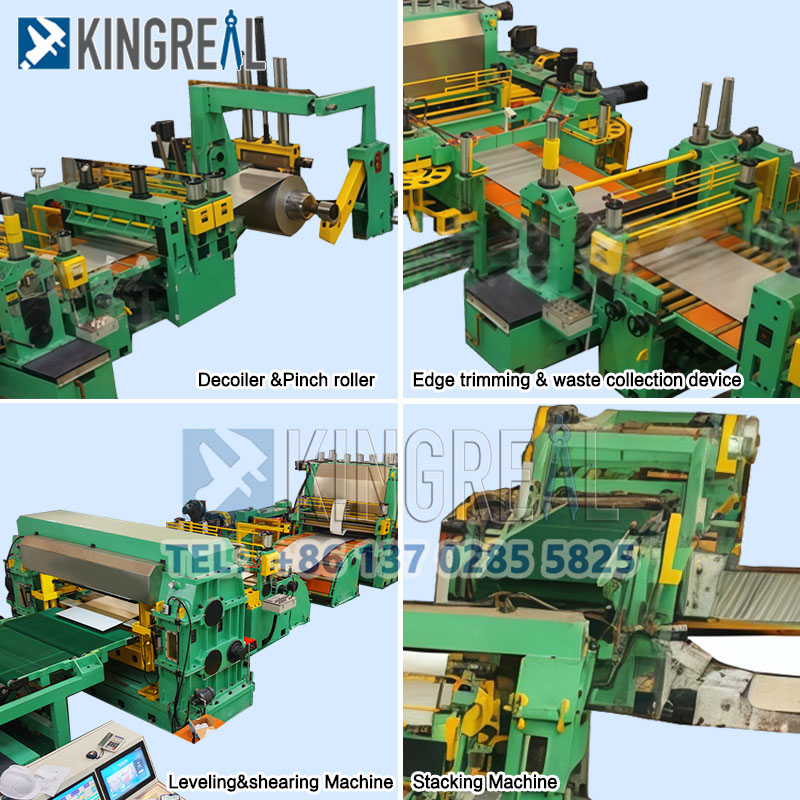

The KINGREAL STEEL SLITTER coil to sheet cut to length machine consists of four core units: a decoiler, a straightener, a cut-to-length machine, and a stacker. Each unit can operate independently and be flexibly combined; this configuration not only fulfills the requirements for fully automated cutting workflows but also allows for flexible adjustments based on specific production scenarios, enabling customized processing. The modular structural design of the coil to sheet cut to length line makes for simpler part replacement, lowers equipment maintenance expenses, lengthens the service life of the coil to sheet cut to length machine, and guarantees the equipment runs steadily over the long run.
 |
 |
Decoiler
|
Parameter |
Light Gauge Cut to Length Line |
Heavy Gauge Cut to Length Line |
|
Coil weight |
5–15 tons |
15–30 tons |
|
Coil width |
Up to 1,600 mm |
Up to 2,500 mm |
|
Drive |
AC motor with inverter |
Hydraulic |
Leveler
|
Type |
Rolls |
Gauge Range |
Flatness Achieved |
|
Roller leveler |
5–9 rolls |
2–12 mm |
±3 mm/m |
|
Precision leveler |
11–17 rolls |
0.3–6 mm |
±1 mm/m |
|
Temper pass leveler |
17–23 rolls |
0.1–3 mm |
±0.5 mm/m |
Cut-to-length machine
|
Cutting Method |
Fly Shearing |
|
Swing Shearing |
|
|
Rotary Shearing |
|
|
Fixed Shearing |
Stacker
|
Type |
Best For |
Speed |
|
Drop stacker |
Light gauge, short sheets |
Fast, simple |
|
Magnetic conveyor stacker |
Ferrous metals, medium gauge |
Gentle sheet handling |
|
Vacuum stacker |
Non-ferrous (aluminum, copper), coated surfaces |
Prevents surface damage |
|
In 2025, KINGREAL STEEL SLITTER dispatched a team of professional engineers to a client's factory in Indonesia to provide comprehensive on-site services, including installation, commissioning, and operational training. Drawing upon their extensive experience, the KINGREAL STEEL SLITTER engineers precisely completed the assembly and commissioning of the coil to sheet cut to length machine. They patiently guided the Indonesian staff, familiarizing them with coil to sheet cut to length line operation, routine maintenance, and troubleshooting techniques to ensure they could quickly master the use of the coil to sheet cut to length machine. Currently, this KINGREAL STEEL SLITTER coil to sheet cut to length line is operating stably at the Indonesian client's factory. It has completely resolved the client's previous issues regarding low cutting efficiency, insufficient sheet precision, and significant material waste. The coil to sheet cut to length machine has not only substantially boosted the client's production efficiency but also enabled the production of high-quality metal sheets with superior flatness, earning KINGREAL STEEL SLITTER high recognition and acclaim from the Indonesian client. |
|
Get Your Personalized Coil to Sheet Cut to Length Line Quote
KINGREAL STEEL SLITTER coil to sheet cut to length machine solutions cover a full spectrum of material thicknesses—ranging from light-gauge to heavy-gauge—and are equipped with precision levelers and servo feeding systems. Whether you are processing low-carbon steel, stainless steel, aluminum, or other types of metal materials:
● Request a Custom Quote — Let KINGREAL STEEL SLITTER team know your material type, specifications, and volume requirements; we will recommend the ideal configuration for your needs.
● Explore the Coil to Sheet Cut to Length Machines — View detailed specifications, images, and videos.
● Schedule a Factory Tour — Witness the coil to sheet cut to length machine construction process firsthand.
