In the metalworking industry, metal cut to length lines play a vital role in converting coils of metal into flat sheets of precisely defined lengths. Whether used in automotive, appliance manufacturing, construction, or steel distribution, metal cut to length machines significantly improve production efficiency, processing accuracy, and material utilization. This article provides a detailed introduction to metal cut to length lines to help readers better understand this important piece of metalworking equipment.

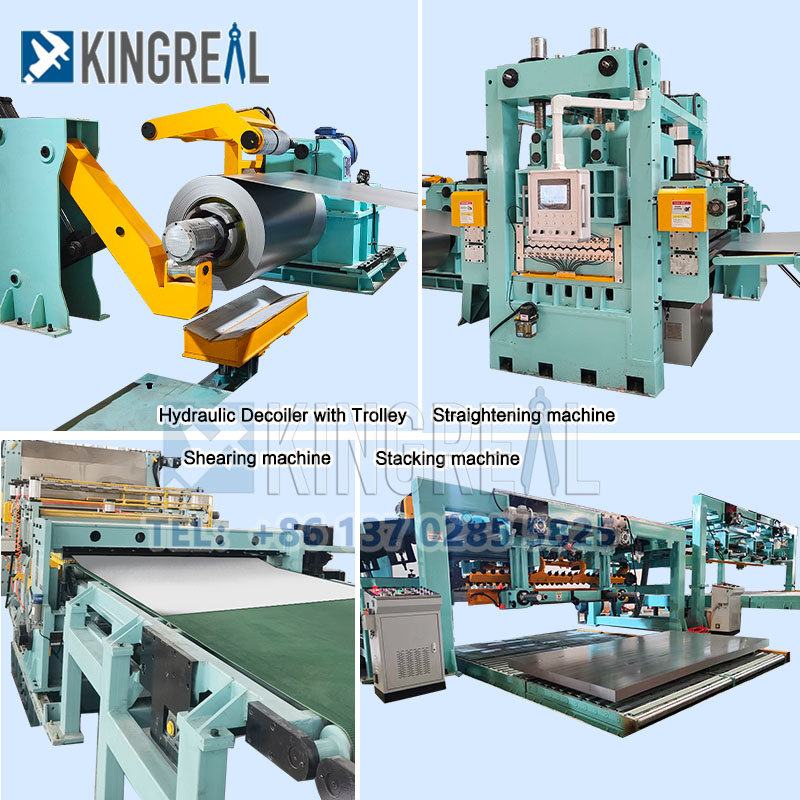

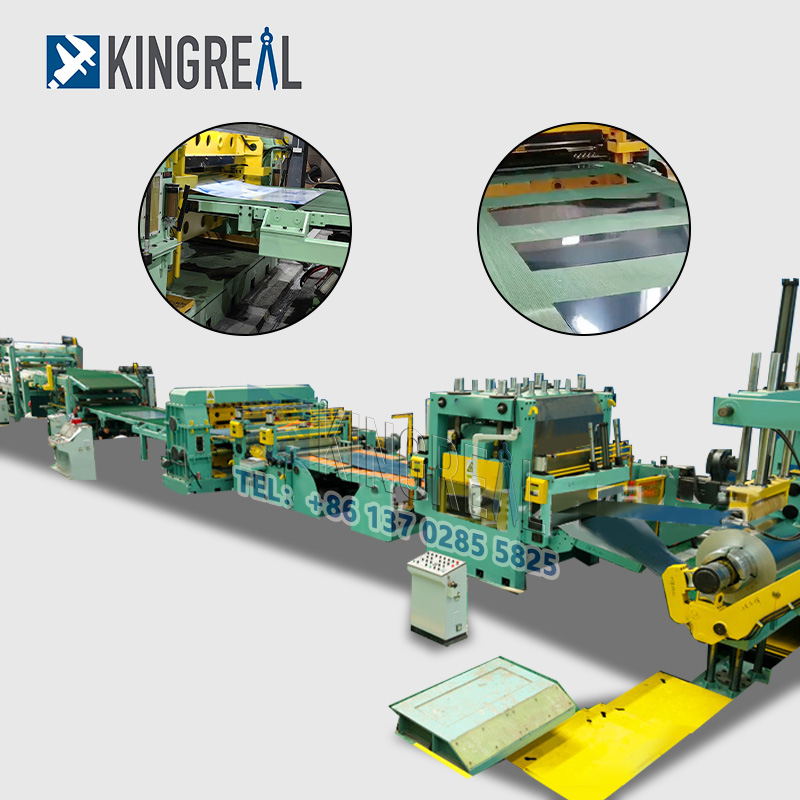

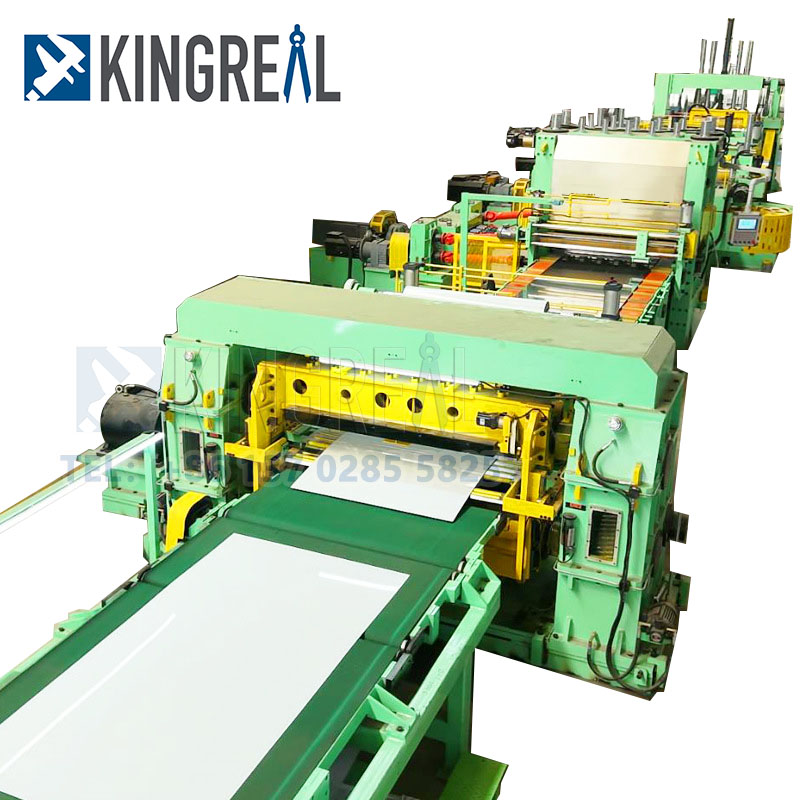

A metal cut to length line is a type of equipment specifically designed to unwind, flatten, and cut metal coils, aiming to precisely cut the coils into flat sheets of the desired length. A metal cut to length machine typically consists of a series of precision components, including:
-Decoiler for metal cut to length line: Unwinds the metal coil and feeds it to the processing area.

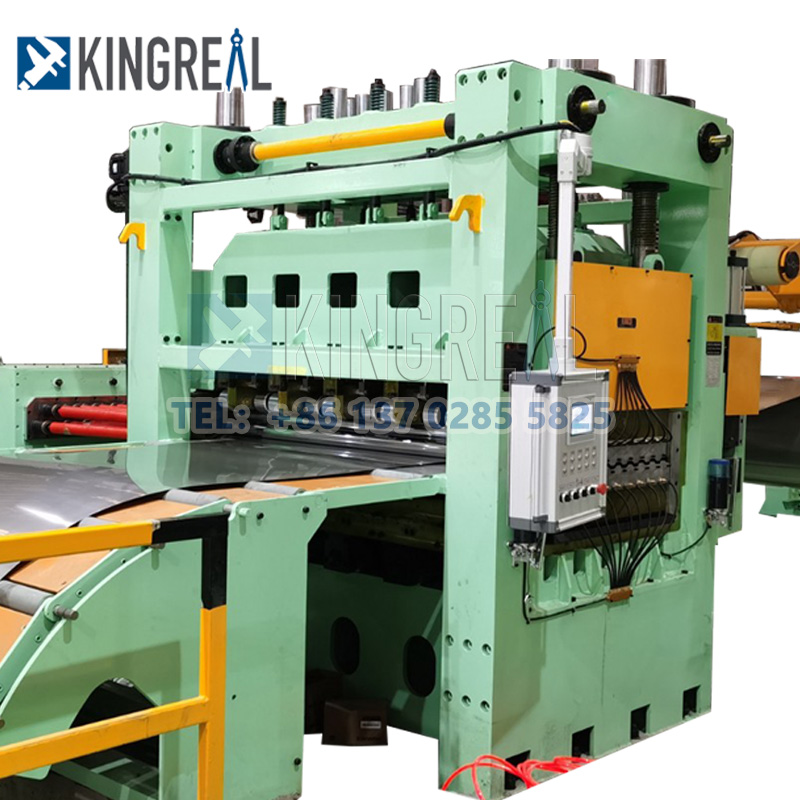

-Straightener for metal cut to length line: Removes internal stresses in the metal material, smoothing its surface.
-Servo feeder for metal cut to length line: Precisely controls the advance of the sheet using an encoder to ensure it reaches the desired length.

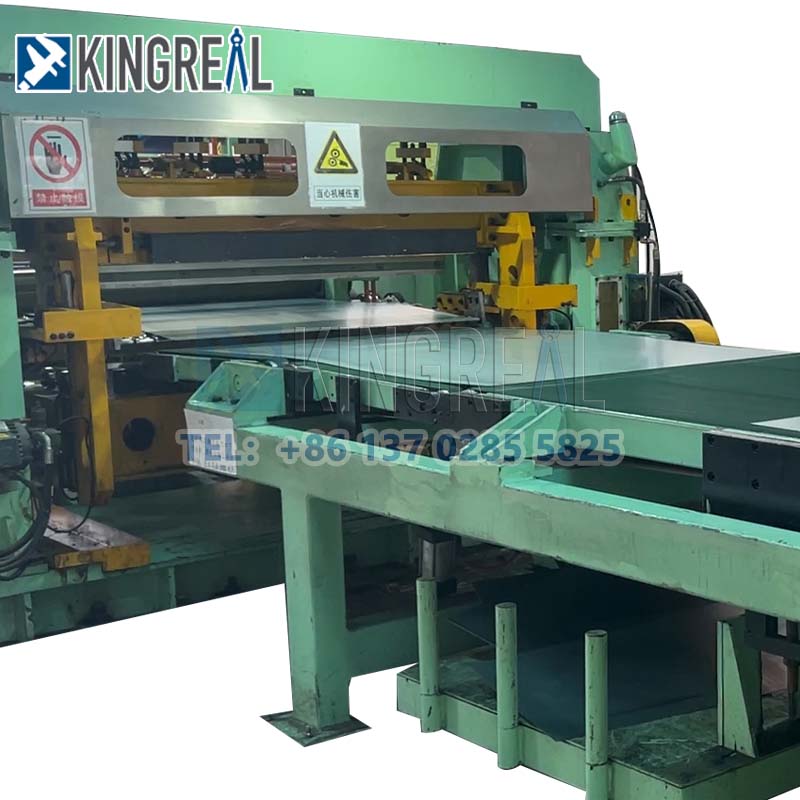

-Shearing machine for metal cut to length line: Cuts the sheet to a predetermined length using a selected shearing type (e.g., rotary, oscillating, flying, or fixed shear).
-Stacker for metal cut to length line: Responsible for collecting and stacking finished plates for subsequent processing or packaging.
Q 1: Can I switch shear types within a metal cut to length machine?
A1: In most cases, each metal cut to length machine has a fixed shear type. This is because different shearing systems require different metal cut to length line design and manufacturing requirements. Dual-head systems can be used for greater flexibility, but this typically significantly increases costs.
Q 2: What material thickness range can a metal cut to length machine handle?
A2: KINGREAL STEEL SLITTER metal cut to length lines can handle material thicknesses from 0.2 mm to 25 mm, depending on the metal cut to length machine design. Some specialized metal cut to length lines can even handle thicker plates. This allows the metal cut to length machine to meet the needs of a wide variety of applications.
Q3: Are fly shearing cut to length lines safe for high-strength metals?
A3: Fly shearing cut to length lines can effectively cut high-strength metals, but the design must consider sufficient power, high-quality blades, and a precise control system. These are key factors in ensuring safety and cut quality.
Metal cut to length lines feature various shearing systems, each with its own unique operating principles and features. Below are several common shearing systems and their detailed descriptions.
Fly shearing cut to length machine
Operating Principle: A fly shearing cut to length machine is used to shear steel plates. As the feed rollers feed the sheet, the shears synchronize the shearing process based on the precise length measurement of the sheet by a measuring device. This design ensures shearing accuracy and improves efficiency, while also ensuring surface quality and saving energy.
Main features of fly shearing cut to length machine:
High Efficiency: The fly shearing cut to length machine synchronizes the shearing process with the feeding process, significantly improving production efficiency.
High Precision: A servo motor drives the system, ensuring cutting accuracy.
User-Friendly HMI: The user-friendly interface facilitates operator adjustments and settings.
Rotary shearing cut to length line
Operating Principle: A rotary shearing cut to length line uses a rotating blade for cutting. As the blade rotates, it cuts the metal sheet quickly and accurately.
Main features of rotary shearing cut to length line:
-Continuous Shearing: Rotary shears enable continuous shearing, making them suitable for large-scale production.
-Strong Adaptability: Capable of processing a wide range of sheet metal thicknesses and materials.
-Easy Maintenance: Rotary shear blade replacement and maintenance are relatively simple.
Swing shearing cut to length line
Working Principle: Swing shearing cut to length lines use a blade mounted on a rotating arm that swings to cut the sheet metal. The blade's swinging motion allows for more flexible cutting.
Main features of swing shearing cut to length line:
-High Flexibility: Suitable for shearing a wide range of sheet metal, especially those with complex shapes, including parallelograms and trapezoids.
-Wide Applicability: Capable of processing a wide range of metal thicknesses and types.
-Easy Operation: The user-friendly interface allows operators to quickly master the process.
Fixed shearing cut to length machine
Working Principle: During shearing, the machine must be stopped for processing. This method ensures accurate cutting, but is relatively slow.
Main features of fixed shearing cut to length machine:
-Strong Stability: The fixed shearing cut to length machine offers increased stability during the shearing process, effectively minimizing material deformation.
-Suitable for Small Batch Production: Although slower, it is suitable for small batch production needs.
 |
 |
 |
 |
Metal cut to length lines have a wide range of applications, covering nearly every industry that requires cutting metal coils. The following are some key applications:
-Metal cut to length line in automotive manufacturing: In automotive manufacturing, metal cut to length machines are used to produce body shells, chassis components, and interior trim. Precision cutting ensures the precise fit of components, improving the quality and safety of the vehicle.
-Metal cut to length line in home appliance manufacturing: Metal cut to length machines are also widely used in the home appliance industry, for example, in the production of housings and interior structures for products like refrigerators, washing machines, and air conditioners. Metal cut to length lines enable manufacturers to effectively control material costs and quality.
-Metal cut to length line in construction industry: In the construction industry, metal cut to length machines are used to process building materials such as steel and aluminum. These materials play a vital structural role in building construction, and precision cutting enhances overall building safety.
-Metal cut to length line in steel distribution: Steel distributors use metal cut to length machines to cut large steel coils into custom lengths, providing more flexible service. Metal cut to length lines enable distributors to quickly respond to market demands and enhance their competitiveness.
 |
 |
