KINGREAL SLITTER SLITTER 1650mm Coil Slitting Machine is most feature metal slitting line, which can slit 0.3-3mm thickness sheet coil and rewind the slit coil.KINGREAL SLITTER SLITTER havs manufactured 1650mm Coil Slitting Machines for customers in the United States, Mexico, Canada, Brazil, Turkey and Saudi Arabia. Contact us for the latest quote program!
KINGREAL STEEL SLITTER 1650MM Coil Slitting Machine is designed for slitting and rewinding various types of materials, such steel, aluminum, GI, copper and silicon. This 1600mm coil slitting line is one of the most common designs of metal slitting line and will meet the needs of most plants for coil processing slitting. The coil thicknesses handled range from 0.3mm-3mm and widths up to 1650mm.
1. Dual slitter head coil slitting machine
2. Light gauge slitting machine
3. Medium gauge slitting machine
4. Heavy gauge slitting machine
5. High speed coil slitting machine
|
Raw Material |
||
|
No. |
Name |
Specification |
|
1 |
Material |
CR, Steel, Aluminum |
|
2 |
Coil Thickness |
0.3-3MM |
|
3 |
Coil Width |
500-1650MM |
|
4 |
Coil I.D |
≤Φ2000mm |
|
5 |
Coil O.D |
Φ508mm、Φ610mm |
|
6 |
Coil Weight |
25T |
|
Production Line Specification |
||
|
1 |
Slit Strip |
25 Max |
|
2 |
Slitting Machine |
0-200M/Min |
|
3 |
Power |
380V/50Hz/3Ph |
|
4 |
Width Tolerance |
≤±0.05mm |
|
5 |
Scrap edge width range |
2-10mm |
|
6 |
Finished product burrs |
≤0.03mm |

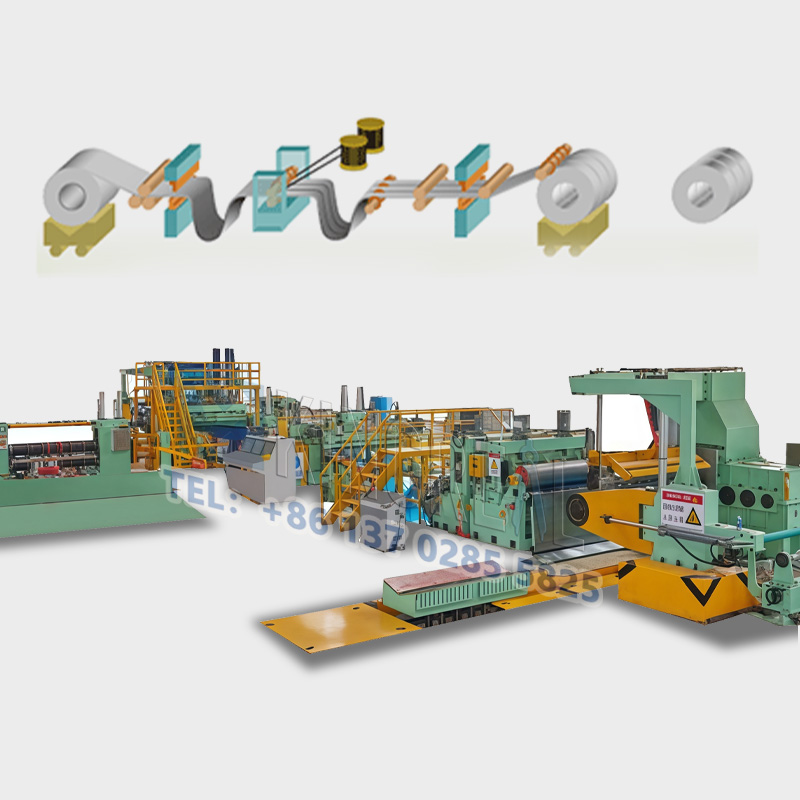

Trolley loading coil -- Hydraulic vertical centering of decoiler -- Hydraulic decoiler -- Pinch and lever -- Plate head shears -- Loop bridge -- Slitting machine -- Tension station -- Separating -- Rewinding machine
Structure and use: Used to feed the uncoiler, transporting the steel coil from the storage table to the reel of the uncoiler, the trolley is controlled by the hydraulic motor, and the lifting is controlled by the hydraulic cylinder.
Lifting mechanism: hydraulic cylinder and sliding four-guide column structure, lifting power provided by the cylinder, the cylinder to promote the V-type bearer table lifting, to achieve the function of up and down the steel coil.
Traveling mechanism: hydraulic motor and parallel guide rail structure, traveling power is provided by the hydraulic motor, so that the trolley moves horizontally along the axial direction of the spindle of the uncoiler. Each end of the rail has a limit block to prevent the trolley from derailing.
A. Function:
Carrying steel coils, expanding and tightening the inner diameter of coils, uncoiling and discharging or recycling coils.
Supporting the coil plate and providing tension to the steel strip, it consists of frame, spindle, expanding and contracting reel, unwinding and pressing device, auxiliary support, braking device, and power part.
B. Construction
a) Main frame: made of steel, A3 steel plate, #45 steel forging bearing seat after welding, through the annealing qualitative treatment is not deformed;
b) Spindle: drilled from 40Cr round steel with a diameter of 85mm holes, tempered and then fine-turned into a working surface diameter of 190mm, load-bearing capacity of 25 tons.
c) rise and shrink the reel: the use of slider-type push-pull expansion reel form; four curved plate (No. 45 steel), wire-cutting slider pairs, expansion diameter: Ф470mm-520mm (plus rubber sleeve to reach Ф610mm); the effective working length of the reel 1650mm, the overall mandrel to ensure that the reel up and down when the concentricity.
|

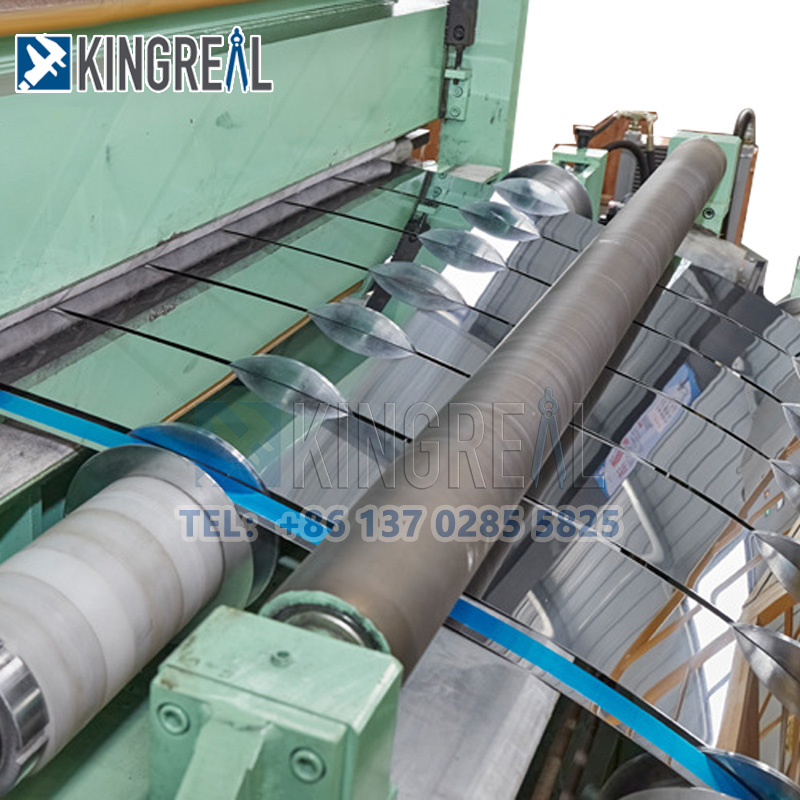

Structures |
Steel plate welded base, power gearbox, plaque and frame |
|
Quantities |
1 Set |
|
Slitting Speed |
200M/Min |
|
Diameter of cutter shaft |
Φ220mm×1900mm |
|
Material |
42CrMo |
|
Blade size |
Φ350mm×Φ220mm×10mm |
|
Main motor power |
AC110Kw |
1.What does a galvanized steel slitting machine do?
2.What is the function of narrow strip coil slitting machine?
3.What is the snubber in a Galvanized Steel Slitting Machine?
4.How to evaluate cost performance of metal coil slitting line？
5.How to maintain stainless steel coil slitting line?
