In the sheet metal processing industry, high speed cut to length lines enhance productivity and reduce costs through their efficiency, precision, and automation, making them suitable for sectors such as modern sheet metal fabrication, steel structure manufacturing, and hardware production.

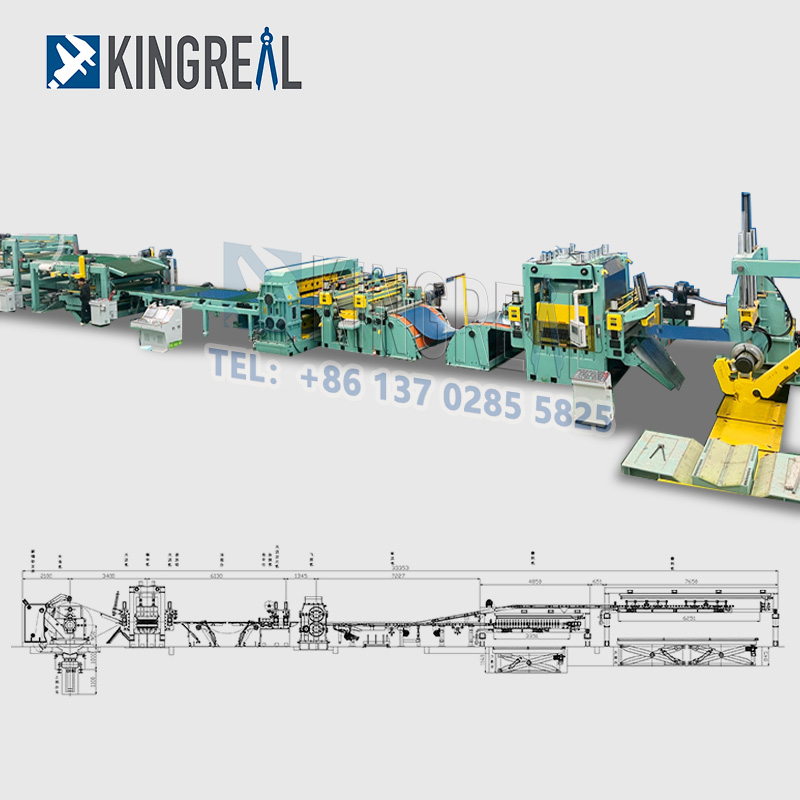

A high speed cut to length machine can achieve processing speeds of up to 80 m/min, handling the entire workflow—from uncoiling large metal rolls and leveling to precision shearing and automatic stacking—in a single, integrated process. Furthermore, these high speed cut to length lines offer exceptional versatility, accommodating a wide range of materials such as steel, stainless steel, aluminum, galvanized sheet, cold-rolled sheet, and copper, thereby covering the vast majority of small-to-medium-scale metal processing applications.
|
1)High-Speed Mass Production Equipped with a specialized fly shearing system, the high speed cut to length line enables continuous material feeding and dynamic, synchronized shearing without the need for pauses. This uninterrupted operation significantly boosts daily output, allowing for the easy handling of large-volume orders and effectively resolving bottlenecks and capacity shortages in mass production.
2)High-Precision Length Cutting The high speed cut to length machine features an advanced NC length-cutting system that monitors strip length and conveying speed in real-time. Through dynamic distance measurement and intelligent deviation correction, it fundamentally guarantees cutting precision. Sheets processed on these high speed cut to length lines are flat and uniform, free from uneven edges, misalignment, or dimensional errors. This results in a significantly higher yield of quality products, fully meeting the standards for high-precision sheet metal processing. |
 |
 |
3)Low Waste and Energy Efficiency The system employs precision leveling and shearing processes. The leveling stage leaves no indentation or stretching deformation, while the shearing process produces smooth, clean edges free from burrs or chipping, resulting in minimal scrap generation. This not only effectively reduces raw material waste but also eliminates the need for secondary trimming or grinding—steps often required in traditional processing—thereby significantly cutting labor and auxiliary material costs and helping enterprises minimize raw material loss over the long term.
4) Fully Automated Operation The high speed cut to length machine achieves fully automated operations—spanning coil loading, uncoiling and leveling, CNC precision cutting, and finished product stacking. A single operator can monitor the entire high speed cut to length line to complete all production tasks, significantly reducing staffing requirements and long-term labor costs for the enterprise. |
The production process is standardized and systematic, featuring seamless integration and smooth operation across all stages. Every step is meticulously designed to ensure high-speed, stable equipment performance and the output of high-quality finished products. The complete process comprises six key steps:
Step 1: Coil Loading and Pre-alignment
At the start of production, an operator uses an overhead crane or forklift to load the metal coil onto the high speed cut to length machine's storage saddle, placing it securely in the designated position on the decoiler. Manual assistance is used to perform vertical alignment and remove the coil strapping.
The high speed cut to length line is equipped with a high-precision, specialized alignment mechanism that effectively prevents material shifting or drifting during processing, thereby avoiding quality issues such as cutting defects or dimensional inaccuracies at the source. It accommodates standard 15-ton coils and is compatible with a wide range of metal coil specifications and sizes, offering exceptional versatility.
Step 2: Automatic Uncoiling with Hold-down Stabilization
Following pre-alignment, the high speed cut to length machine’s hold-down roller automatically clamps the coil. Working in tandem with an intelligent constant-speed control system, it ensures smooth, uniform uncoiling and steady transport of the metal strip.
The high speed cut to length line precisely regulates uncoiling tension, maintaining consistent stability throughout the process to prevent issues such as loosening, wrinkling, or slippage. Whether handling thin or thick sheets, it ensures smooth transport and eliminates stretching deformation, meeting the uncoiling needs of various material types.
Step 3: Precision Leveling and Correction
After uncoiling, the metal strip is automatically fed into a 4-hi roller or 6-hi roller leveling machine. This stage comprehensively corrects defects inherent to the coil, such as curvature, warping, and surface irregularities.
The high-precision leveling unit integrated into the high speed cut to length machine applies uniform corrective force with refined processing capabilities. The leveled sheets are perfectly flat, free from indentation or deformation, effectively eliminating issues common to traditional methods—such as warping, uneven cuts, and surface defects—thereby meeting the rigorous standards required for high-precision finished products.
Step 4: Precision NC Length Control
Powered by an intelligent NC system, the line dynamically monitors the strip's conveying length and speed in real-time. It automatically inputs preset cutting dimensions and utilizes continuous data feedback and intelligent adjustments to lock in precise cutting specifications.
The system supports dynamic error compensation, eliminating the need for repetitive manual calibration; this ensures stable, reliable length accuracy and allows for flexible customization of non-standard sizes, meeting the demand for diverse, multi-specification production runs.
Step 5: High-Speed Synchronous Flying Shear
As the core process of the high speed cut to length line, the cutting stage employs a dynamic flying shear technology. While the strip is conveyed at a constant speed, the flying shear system automatically accelerates to match the material's velocity, enabling synchronous, dynamic cutting without stopping the high speed cut to length machine, thus ensuring continuous operation.
Step 6: Conveying and Automatic Stacking

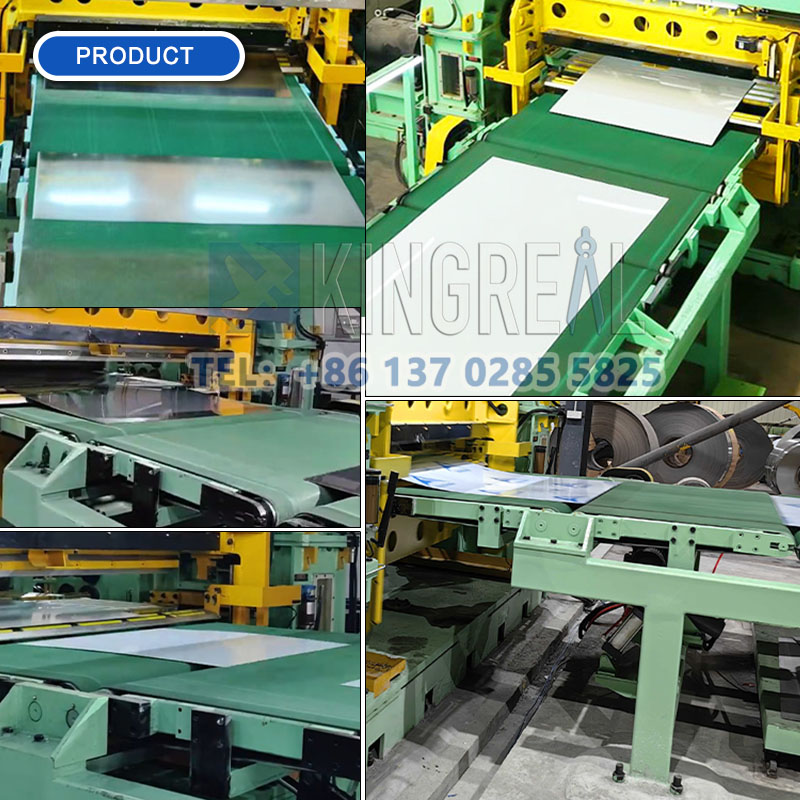

Once cut, the qualified sheets are smoothly transported via a specialized conveyor belt to a fully automatic stacking system, which organizes them into neat, layered stacks. The unmanned stacking design effectively prevents damage such as dents, scratches, or deformation. The finished stacks are orderly and uniform, requiring no manual sorting or handling, and are ready for immediate packaging and shipment.
KINGREAL STEEL SLITTER high speed cut to length machine is specifically designed for enterprises requiring batch sheet cutting, such as those in hardware processing, sheet metal fabrication, steel structure manufacturing, and construction engineering.
Operating at speeds three to five times faster than standard lines, it reduces labor costs by over 80%. The system ensures seamless, uninterrupted mass production without jams or material stoppages, maintaining exceptional operational continuity.
Furthermore, the high speed cut to length line offers superior length precision, minimizes material waste, and boasts an extremely low equipment failure rate. It supports stable, high-volume production over extended periods, perfectly meeting the demands of round-the-clock manufacturing operations. Through the automated, high-precision operation of high speed cut to length machines, enterprises can achieve multiple benefits: reduced labor costs, increased production capacity, minimized waste, and higher product yield rates. Long-term, large-scale production significantly lowers overall manufacturing costs and enhances market competitiveness.
●Customization: KINGREAL STEEL SLITTER high speed cut to length lines support full-specification customization. Cutting dimensions and operating speeds can be tailored to specific material types, production capacities, and dimensional standards, fully meeting the unique production needs of different enterprises.
●Material Compatibility: These high speed cut to length machines offer exceptional versatility, capable of stably processing various metals—including stainless steel, galvanized sheet, cold-rolled sheet, aluminum, and copper—across a wide range of thicknesses (thin, medium, and thick plates), making them suitable for diverse applications.
●Operation: The high speed cut to length line features a user-friendly, one-touch CNC control system with a simple interface, ensuring a short learning curve. KINGREAL STEEL SLITTER also provides on-site practical training and comprehensive instructional videos to help staff quickly master equipment operation and routine maintenance.
●Installation & After-Sales Support: KINGREAL STEEL SLITTER offers integrated services covering on-site installation, commissioning, and personnel training, backed by lifetime after-sales support to ensure stable, uninterrupted production for your enterprise.
To learn more about equipment specifications, customization options, and pricing for high speed cut to length machines, please contact KINGREAL STEEL SLITTER anytime to receive a personalized, one-on-one solution for your sheet metal processing needs!
