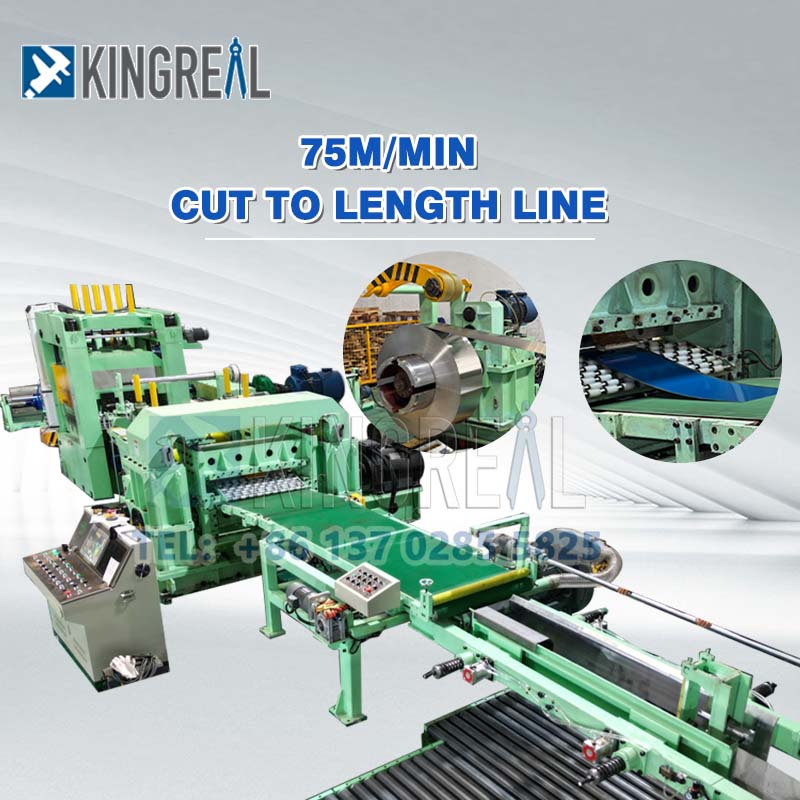

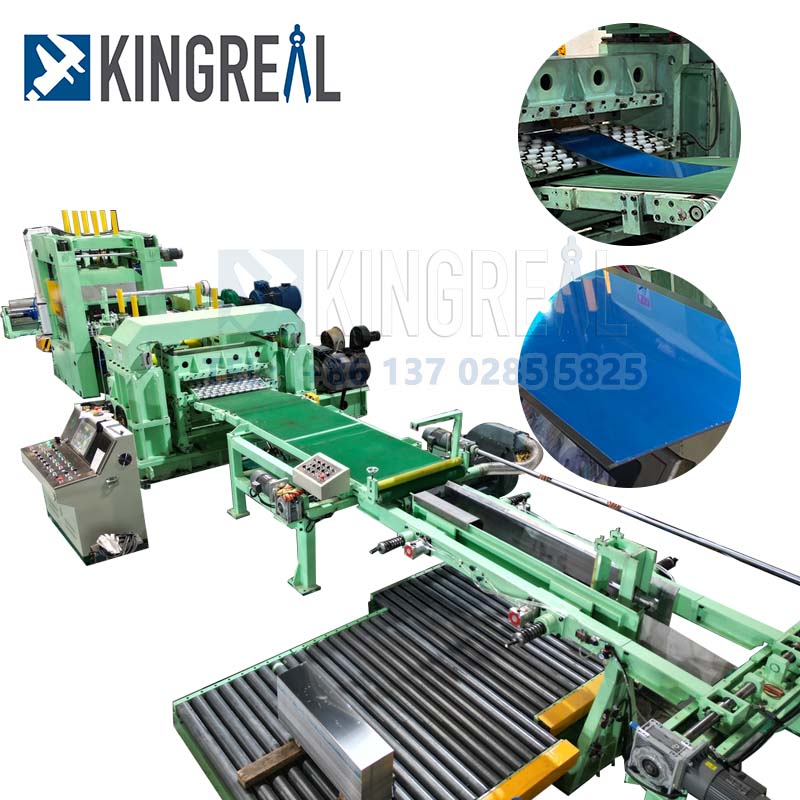

KINGREAL STEEL SLITTER Coil Cut To Length Line can accurately cut the size of the plate required by the customer, and is suitable for coils of different specifications and materials according to the customer's needs. KINGREAL STEEL SLITTER Coil Cut To Length Line is used for cutting the sheet metals from coil to sheet in cross section, straightening the sheets and after cutting to length operation stacking the sheet on Coil Cut To Length Line.Standard Coil Cut To Length Line is contained as machinery units on Coil Cut To Length Line are decoiler, straightening, feeding, shearing unit and stacking unit.
Video About Coil Cut To Length Line
Description Of Coil Cut To Length Line

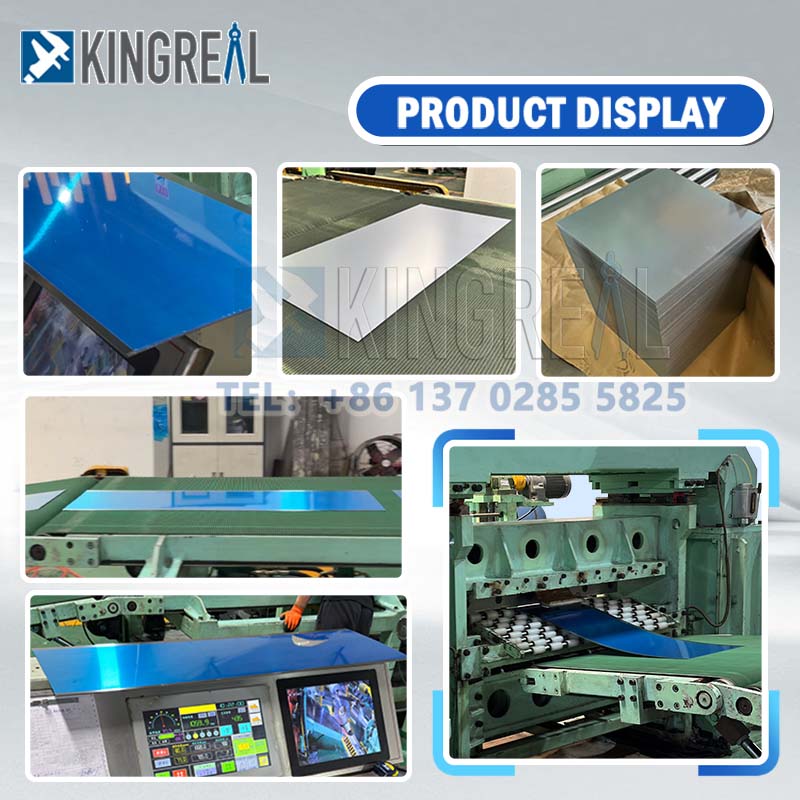

KINGREAL STEEL SLITTER provides coil cut to length line to accurately cut into specified length plates according to different needs, which can suitable for different specifications and materials coil, such as stainless steel, metal steel, silicon, hot-rolled and cold-rolled, etc,.
KINGREAL STEEL SLITTER Coil Cut To Length Line feeding trolley, decoiler, straightener, servo feeder, fly shearing machine, unloading table and automatic stacking table, etc,. The equipment configured in the coil cut to length line is not fixed, KINGREAL STEEL SLITTER can produce customized production machines according to customer’s needs.
Coil Cut to Length Line Composition
- Hydraulic coil car
- Hydraulic uncoiler
- Hydraulic entrance guide
- Four / six high leveling machine
- Side guide pulley
- CNC servo feeding straightening machine
- Cutting machine
-Conveyor table
- Hydraulic lifting table
- Unstacking car

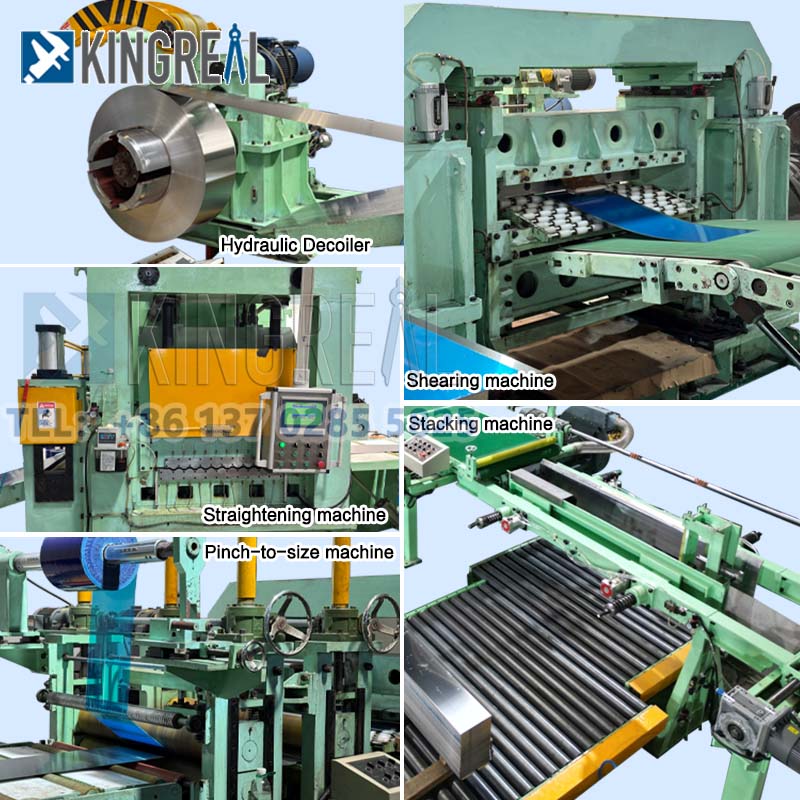

Mainly Components of Coil Cut To Length Line
For the heavy coil material, KINGREAL STEEL SLITTER can provide the trolley for the coil laoding, which can be moved horizontally and vertically to facilitate putting the steel coils into the uncoiler.
The coil cut to length line decoiler part is driven vertically by a hydraulic cylinder with four guide pillars.Horizontal movement is driven by an oscillating motor. It can carry a capacity of 1 5 tons (maximum).
Straightening of rough boards and guides can be done immediately after entering the process.
Mechanical structure: consists of two rows of leveling rollers, two rows of intermediate rollers, 2 groups of rollers, drive unit, 2 pinch feed rollers and frame.
Both the end of each roll with drive roll pin bearings, 17 leveling rolls all main drive rolls small size, diameter 65, roll er distance is 70; 19 intermediate rolls, diameter 65; 2 pinch rolls ERS coated with upper surface polyurethane, which prevents sheet. Two groups of support rollers, in each group, each three and of small size.
Vertical rollers on both sides are used to guide the strip into the straightening device and the cutting machine.
The vertical rollers on both sides are adjusted by screws. The width range is 500-1500mm.

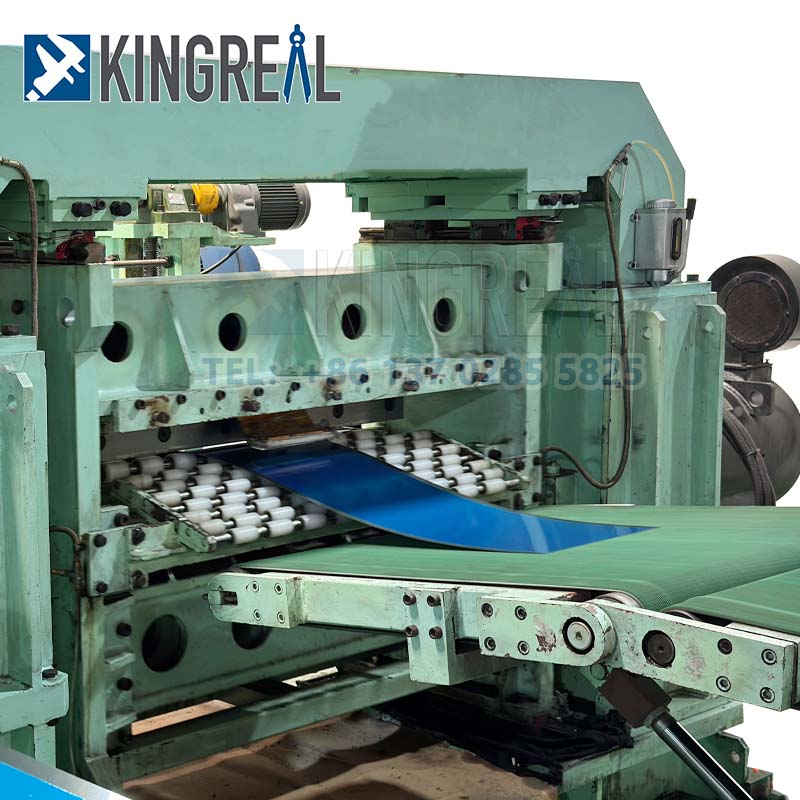

Cut To Length Shearing mode: hydraulic up and down shear, with the feeder direct signal automatic shear
The use of gap adjustment design cutting materials, heat treatment can safely shear 2mm steel plate
Advantage Of Coil Cut To Length Line
KINGREAL STEEL SLITTER has been doing our best to design and manufacture higher cost performance coil cut to length machine for our customers, because we understand that this is one of the key factors for them to gain a leading position in the market competition.
With more than 20 years of R&D expertise in metal coil slitting line and coil cut to length machines, KINGREAL STEEL SLITTER are committed to designing and manufacturing stronger and more durable coil cut to length machines that will run for 10-20 years for our customers.
KINGREAL STEEL SLITTER has a professional team support, including a technical team to assist customers in the design of drawings, a production workshop to ensure the smooth progress of coil cut to length machine production, and an after-sales team to help customers solve any difficult problems.
KINGREAL STEEL SLITTER Coil Cut To Length Line Parameter
|
Coil Width |
25.4mm-3.65mm |
|
Coil Thickness |
0.12mm-25.4mm |
|
Coil Weight |
up to 60,000 |
|
Speeds |
up to 80m/min |
|
Materials |
Hot-rolled, Cold-rolled, PPGI, Silicon steel, Aluminum, Galvanized, Pre-painted |
|
Shaft Diameter |
110mm |
|
MachineFrame |
350H steel welding |
|
DriveMotorPower |
5.5kw |
|
Leveling Rollers |
up layer 5 rollers down layer 6 rollers |
|
Cut Power |
Hydraulic power |
