In the modern metalworking industry, the press feeding system plays a vital role in high-speed, precision stamping, enabling the stamping, leveling, and forming of metal materials.
Through fully automated process control, the press feed line feeds metal coils into stamping machine stably, continuously, and precisely. This ensures the press operates continuously at high speeds, significantly reducing the need for manual intervention and labor costs while vastly improving production efficiency and product yield rates.

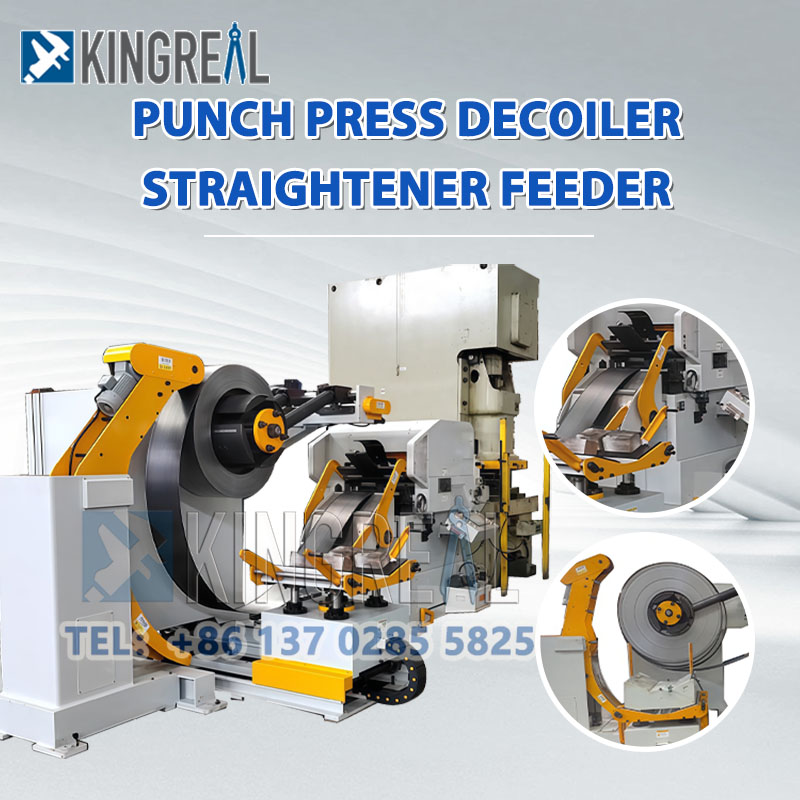

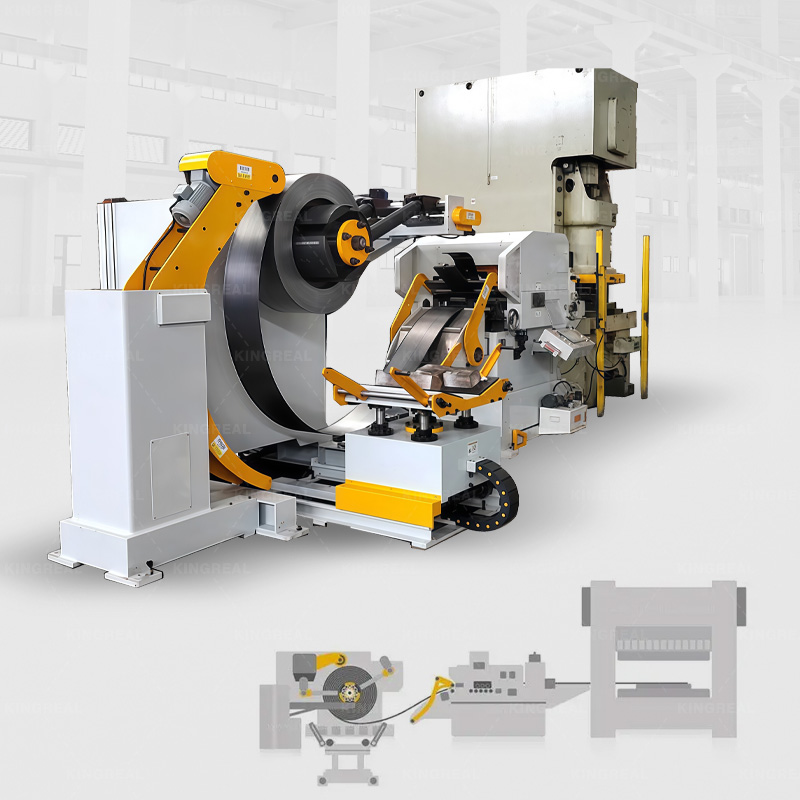

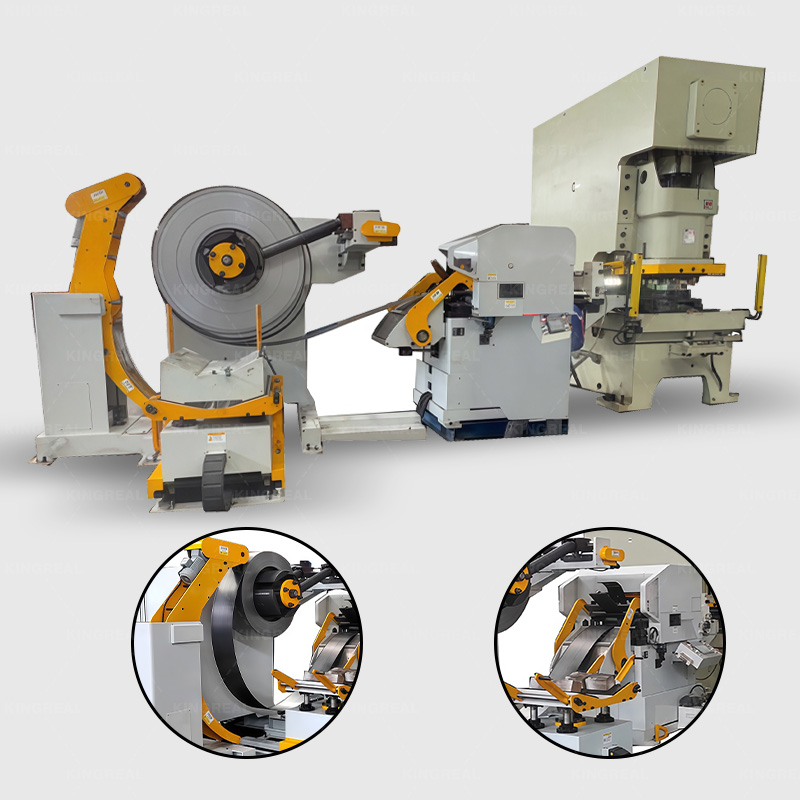

The press feeding system integrates three core functions—automatic uncoiling, precision leveling, and precise servo feeding. Utilizing an integrated structural design and synchronized electronic control technology, it automates the entire process—from raw material release and flatness correction to precise feeding and stamping—perfectly meeting the demands of various high-speed stamping applications. |
 |
1. Automatic Uncoiling
Upon startup, the press feed line's uncoiling module activates. Relying on precise pressure control from the hold-down arm, it constrains the metal coil, effectively preventing issues such as loosening, drifting, irregular winding, or coil collapse.
Simultaneously, the press feeding system synchronizes in real-time with the leveling machine's speed, dynamically aligning the uncoiling pace with the leveling and feeding cycles. This ensures the metal coil enters the next processing stage in a stable, steady state.
2. Leveling and Correction
Under the press feed line's control, the metal material passes through multiple sets of high-precision leveling rollers arranged symmetrically (top and bottom). Through repeated rolling and correction, internal residual stresses in the coil are thoroughly eliminated.
Operators can flexibly adjust roller gaps and pressure based on parameters such as material thickness, type, and hardness. This precision allows the system to meet the leveling requirements of various material specifications, ensuring that the material entering the stamping stage is flat, uniform, and stable.
3. Precision Servo Feeding
Equipped with a high-performance servo motor and a closed-loop control system, the press feeding system precisely regulates feeding speed, step length, and positioning. It automatically and accurately feeds the material into the press die to complete the stamping process.
Furthermore, the press feed line features an intelligent multi-stage feeding function. Process parameters for various molds can be pre-programmed, allowing the system to automatically adjust feeding pitch and operating cadence based on specific product processing requirements—making it perfectly suited for complex, multi-stage, high-speed stamping operations.
4. Integrated System Coordination and Synchronized Operation
Equipped with an intelligent electronic control linkage system, the press feeding system enables integrated, synchronized control across the press machine, feeding mechanism, and the leveling unit.
The entire press feed line operates with the press machine's cycle time as the core reference, automatically synchronizing the speeds of uncoiling, leveling, and feeding.
Through modular coordination and closed-loop control, it achieves fully automated, continuous production—spanning raw material loading, uncoiling, leveling, and feeding through to the final stamping and forming.
The press feeding system is designed to optimize material handling, enhance stamping precision, and stabilize production operations, thereby ensuring high consistency in product dimensions and forming quality during mass production.
1/Save production space
By integrating the functions of uncoiling, leveling, and feeding into a single, compact unit, the press feed line offers a streamlined footprint.
Compared to traditional configurations using separate decoilers, levelers, and feeders, it reduces workshop floor space requirements by over 30%.
This effectively optimizes production line layouts, accommodates the spatial constraints of various small-to-medium-sized stamping workshops, and improves overall space utilization.
2/High degree of automation
The press feeding system requires minimal personnel for startup/shutdown, parameter adjustment, and routine inspections.
This significantly reduces the need for manual intervention, lowers labor costs, and minimizes product waste caused by human error, all while ensuring stable, continuous operation over long periods.
 |
 |
3/Exceptional feeding precision
Utilizing servo-driven, closed-loop precision control technology, the press feed line accurately locks in feeding positions and pitches. With feeding accuracy reaching ±0.1mm, it ensures consistent dimensional precision for every stamped part, significantly boosts the product yield rate, and perfectly meets the demands for high-precision hardware and electronic component stamping.
4/Well-suited for mass production
The press feeding system comes standard with a dedicated loading trolley, streamlining the processes of coil lifting, alignment, securing, and material preparation.
This minimizes material changeover times and equipment downtime, effectively boosting overall production line efficiency—making it ideal for high-frequency, high-volume continuous stamping operations.
5/Strong industry versatility
The press feed line is compatible with a wide range of metal coils, including cold-rolled steel, galvanized sheet, stainless steel, aluminum, and copper. It meets stamping requirements for materials of varying thicknesses—from thin to medium-thick and heavy-gauge—and is widely used across industries such as automotive parts, home appliance hardware, 3C electronics, furniture hardware, and precision hardware components.
KINGREAL STEEL SLITTER press feed line is fully adaptable to the stamping needs of all metal material specifications, precisely handling high-speed stamping for thin, medium, and thick metal coils alike.
Equipped with an upgraded servo control system and a high-precision leveling mechanism, the equipment ensures stable, ultra-precise feeding and matches the maximum production speeds of high-speed presses.
It perfectly meets the modern stamping industry's demands for high precision, high speed, and superior stability.
For detailed press feeding system specifications, customized solutions, or industry application examples, please contact KINGREAL STEEL SLITTER directly for a personalized consultation.
