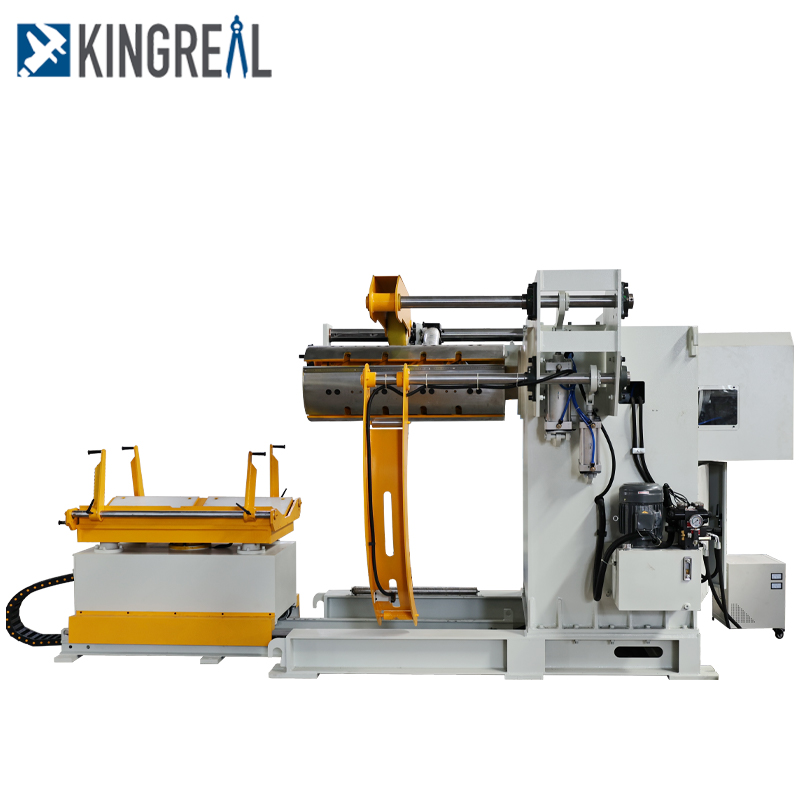

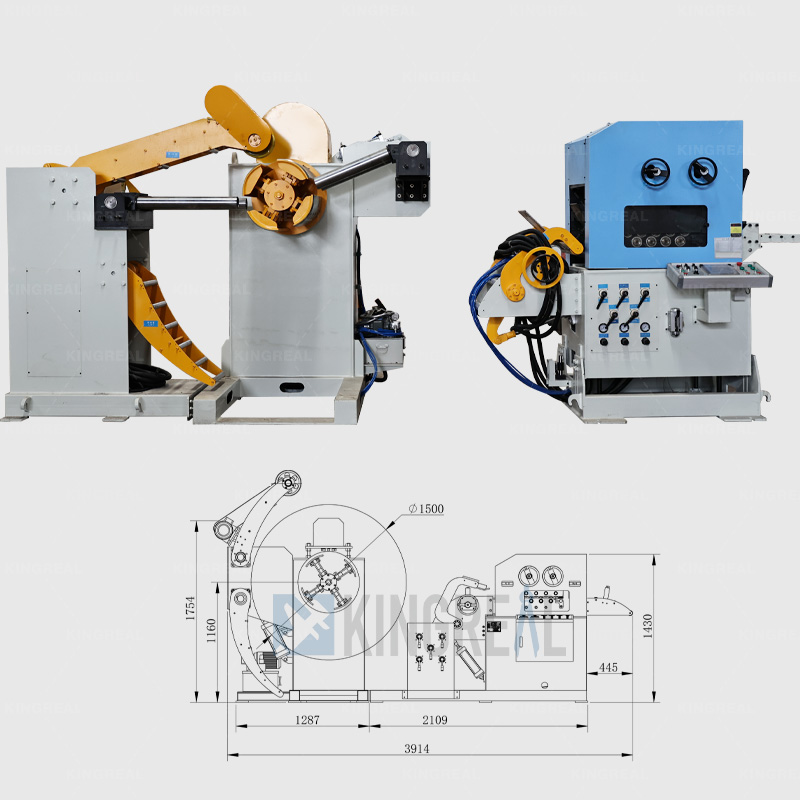

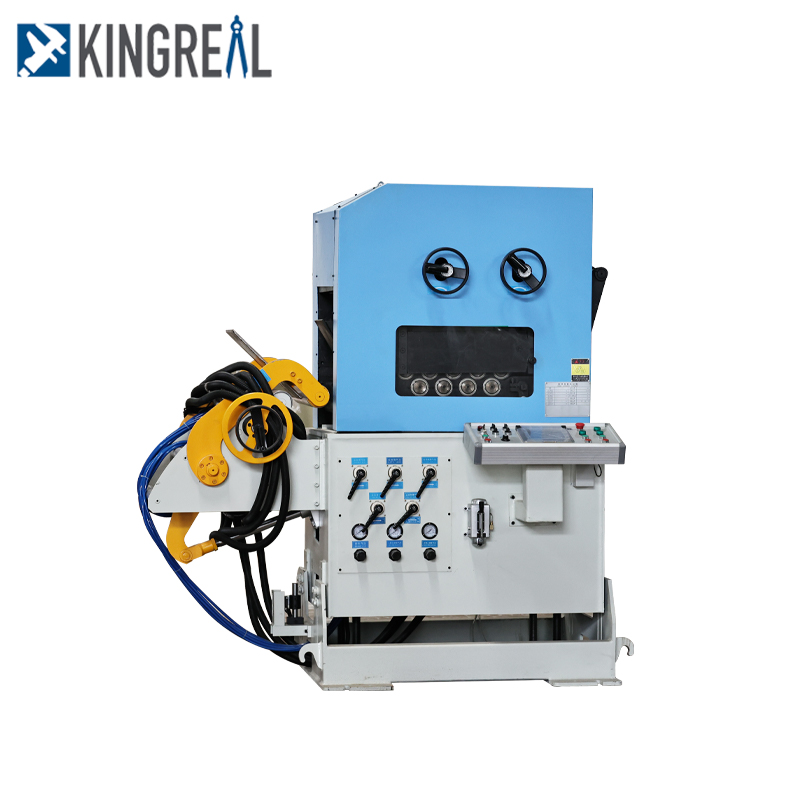

By integrating the three key functions of uncoiling, leveling, and feeding into a single unit, the 3-in-1 feeder machine has become a standard component of automated production lines. It not only resolves synchronization challenges between multiple standalone machines but also significantly optimizes factory layouts.
However, the structural requirements for equipment differ vastly depending on whether the material is thin aluminum sheet or high-strength steel.
Consequently, KINGREAL STEEL SLITTER has designed four standardized 3 in 1 decoiler straightener feeder solutions tailored to specific material thicknesses and physical properties. |
 |
Many people believe that one feeder machine can manage all material thicknesses. In reality, the internal shape and drive mechanism of the equipment have to be matched to the material's resistance to deformation in order to guarantee feeding accuracy and avoid material damage. KINGREAL STEEL SLITTER offers the following four standard configurations:
3 in 1 Decoiler Straightener Feeder for Thin-Sheet (0.3 – 3.2mm):
Designed specifically for precision electronics, home appliances, and light hardware components. This model focuses on delicate handling to prevent edge deformation; it features a high-density leveling roll assembly to ensure thin coiled material achieves perfect flatness before entering the press.
3-in-1 Feeder Machine for Medium-Sheet (0.5 – 4.5mm):
This is the most widely used model in KINGREAL STEEL SLITTER product line, suitable for general hardware, furniture fittings, and standard industrial parts.
It strikes an ideal balance between high-speed feeding and the structural rigidity required to process medium-thickness materials.
3-in-1 Feeder Machine for Heavy-Sheet (1.0 – 6.0mm):
Designed for heavy-duty applications, such as structural components and thick-walled hardware.
This 3 in 1 decoiler straightener feeder utilizes reinforced rollers and a high-torque servo system to overcome the significant internal stresses found in thick steel plates.
3-in-1 Feeder Machine for High-Strength Sheet (0.5 – 6.0mm):
Developed specifically for materials with high yield strength. Although the thickness range overlaps with other models, the internal components are significantly reinforced to withstand the material's powerful "spring-back" effect and the extreme pressure required for leveling.
To ensure stable operation within the designed material thickness range, KINGREAL STEEL SLITTER employs differentiated engineering designs across four core dimensions:
|
Leveling Roll Configuration: The diameter and quantity of leveling rolls are scientifically calculated based on material thickness. Thin sheets require a greater number of small-diameter rolls for fine correction, whereas thick plates require large-diameter, heavy-duty rolls to exert sufficient pressure.
Servo Torque Optimization : Rather than a one-size-fits-all approach, KINGREAL STEEL SLITTER synchronizes the drive system’s power output with the specific resistance of the material. We use high-torque servo motors from market leaders like Yaskawa or Mitsubishi for heavy-gauge and high-tensile coils. This focused engineering guarantees constant micron-level accuracy throughout the feeding cycle by preventing motor stall and slippage even under maximum load circumstances. |
 |
|
Decoiler Hold-down Mechanism: Safety and material control are critical when managing high-tension coils. The KINGREAL STEEL SLITTER 3 in 1 decoiler straightener feeder features heavy-duty hydraulic or pneumatic hold-down arms. These arms exert constant pressure to counteract the "clock-spring" effect of the metal, keeping the coil secure during unbanding and ensuring the material head is guided into the leveling stage in a controlled, safe manner.
Structural Integrity & Vibration Control: Precision feeding requires a perfectly stable platform. We have reinforced the 3-in-1 feeder machine base and side plates to absorb the inertial shocks of high-speed stamping. The chassis is made of welded thick-section steel that has been heat annealed to release internal stresses for models working with strong or thick-plate materials. This produces a stiff frame with zero-vibration performance at high speed following exact machining. |
 |
Optimized Floorplan Utilization: The integrated design reclaims over 50% of factory real estate compared to traditional distributed lines. This compact footprint allows manufacturers to maximize their production density by fitting more lines into existing facilities.
Reduced Labor Overhead: High-level automation significantly cuts down on manual intervention. By streamlining the workflow—from coil loading to automatic threading—the system enables a single operator to manage multiple production cells simultaneously.
Maximum Production Uptime: By eliminating the mechanical and signal lags found between standalone machines, the KINGREAL STEEL SLITTER system prevents synchronization errors. This seamless operation shortens cycle times and reduces the frequency of maintenance-related downtime.
Reliable Process Precision: Utilizing advanced PLC logic paired with high-resolution rotary encoders, the equipment maintains strict feed-length consistency. This reliability is key to lowering part rejection rates and maintaining high quality throughout the run.
Increased Coil Yield: Engineering the straightener and feeder into a single unit shortens the material path. Combined with optimized leveling logic, this minimizes the amount of scrap generated at the head and tail of each coil, directly improving the bottom line.
Q1: What is a 3-in-1 feeder machine?
A1: It is a highly integrated system that combines a decoiler, a straightener, and an NC servo feeder into a single, compact unit.
Q2: Is the 3 in 1 decoiler straightener feeder easy to operate?
A2: Yes. KINGREAL STEEL SLITTER 3-in-1 feeder machine features a user-friendly HMI (touchscreen) interface; operators simply input the feed length, speed, and number of cycles. Operation is highly intuitive, resulting in minimal training requirements.
Q3: Can the 3 in 1 decoiler straightener feeder be customized to meet production needs?
A3: Absolutely. In addition to standard thickness ranges, KINGREAL STEEL SLITTER offers customized configurations based on factors such as material width, coil weight, and specific press connection requirements.
Q4: What kind of after-sales support do you provide?
A4: KINGREAL STEEL SLITTER offers comprehensive services—including technical support, installation guidance, operational training, and rapid spare parts supply—to ensure the stable operation of your production line.
Choosing the appropriate 3-in-1 feeder machine settings is very important to guarantee the quality of finished items and increase die life. KINGREAL STEEL SLITTER provides proven technical answers whether you are working with precision foil as thin as 0.3mm or high-strength steel plate up to 6.0mm thick.
Directly get in touch with KINGREAL STEEL SLITTER; our experts will advise the best 3 in 1 decoiler straightener feeder fit for your project needs and material properties.
