In industrial sectors such as metal processing and stamping, the press feeding system ensures stable production line operation while enhancing processing precision and efficiency. By integrating the three core functions of coil uncoiling, material leveling, and precision feeding into a single unit, the system significantly simplifies workflows and reduces both labor requirements and the equipment's physical footprint.
In modern precision stamping, proper operation of the press feeding machine is critical to product quality, equipment longevity, and workplace safety.
This article details the equipment characteristics, complete operating procedures, and application advantages of press feeding systems, providing a comprehensive overview of key operational points.
|

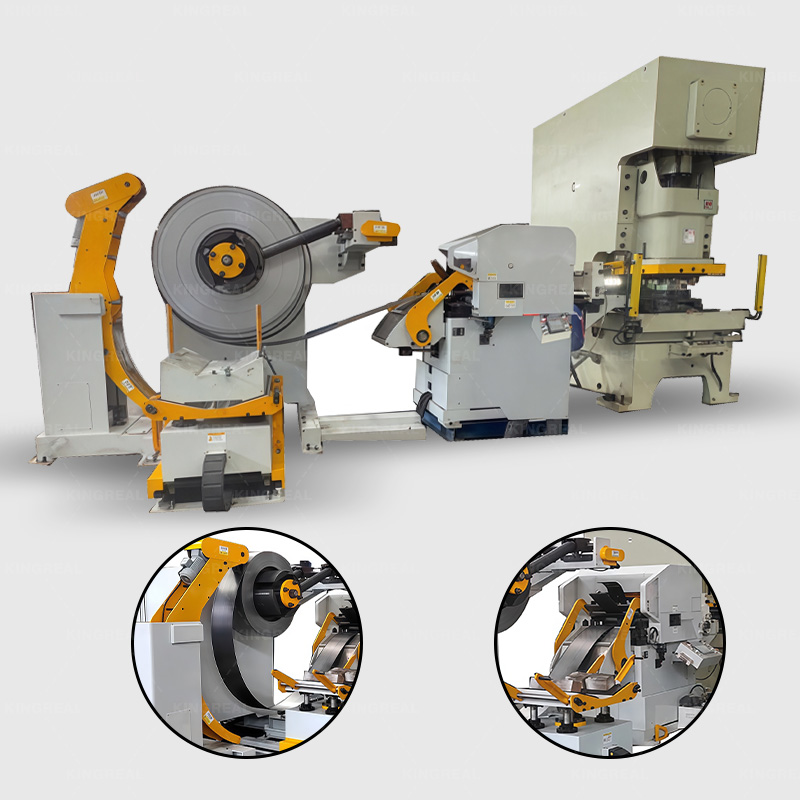

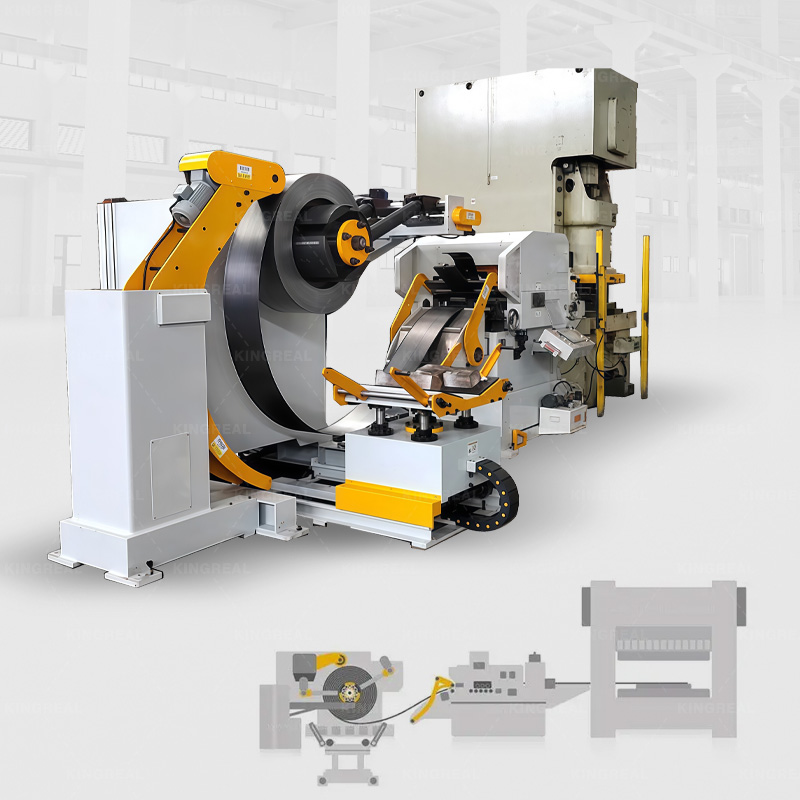

A press feeding system—often referred to as a 3-IN-1 Press Feeding, Coil Straightener & Uncoiler System—is an integrated, automated feeding unit optimized for coil-fed stamping processes. Unlike traditional setups that rely on separate decoilers, levelers, and feeders, this press feeding machine uses structural integration and optimized programming to merge uncoiling, leveling, and feeding into a unified workflow.
The press feeding system features a compact design that significantly reduces the required floor space, making it suitable for the layout requirements of various small-to-medium-sized stamping workshops.
Furthermore, the press feeding machine offers a high degree of automation; core operations—such as parameter adjustment, start/stop functions, and fault resets—are managed via an intuitive touchscreen interface. This eliminates the need for complex manual interventions and lowers the barrier to entry for operators. |
 |
|
I. Material Loading Preparation and Uncoiling Operators must first verify the coil material, thickness, and width against the production order to ensure the press feeding system's processing parameters are correctly matched. Next, the coil is carefully loaded onto the press feeding machine's feeding trolley. Once the coil is secured, the operator activates the decoiler via the touchscreen; the press feeding system's built-in servo control then precisely regulates uncoiling speed and tension to unwind the material at a steady rate. The press feeding machine features real-time, adaptive tension control for the uncoiling process. This effectively prevents material stretching or deformation caused by excessive tension, as well as looseness or wrinkling caused by insufficient tension, ensuring the material remains flat and orderly after uncoiling.
II. Material Centering and Precision Positioning Equipped with a high-precision automatic centering device, the press feeding system monitors material position in real-time and automatically corrects any deviation. This ensures the material remains level and centered before entering the leveling unit. Operators can fine-tune centering parameters via the touchscreen interface to accommodate coils of varying widths and meet specific positioning requirements. |
 |
|
III. Material Leveling and Pre-treatment Upon entering the leveling machine, the material undergoes repeated rolling and correction by staggered upper and lower leveling rollers. This process eliminates internal stresses and corrects surface defects such as waviness or warping, resulting in a flat, smooth surface and uniform thickness. Operators can precisely adjust the gap and pressure of the leveling rollers based on material thickness and hardness. This flexibility allows the system to handle various materials—including thin sheets, thick plates, and high-tensile sheets—ensuring the leveled material fully meets precision stamping standards.
IV. Precision Servo Feeding and Equipment Reset After leveling, the material is precisely fed into the stamping press by the press feeding machine's servo feeder. Powered by a high-precision servo control system, the unit allows for exact settings regarding feeding speed, step length, and cycle timing, ensuring perfect synchronization with the press's operation. Once a stamping cycle is complete, the press feeding system automatically resets the roller assembly, retains parameters, and quickly enters standby mode. This enables seamless transitions to the next feeding cycle, facilitating continuous, automated production. |
 |
High Production Efficiency
The press feeding system automates the entire workflow—uncoiling, leveling, and feeding—eliminating the need for manual intervention at each stage. Capable of stable, continuous operation over long periods with a low failure rate, it minimizes downtime and significantly boosts the line's overall capacity, making it ideal for high-volume, large-scale production.
High Processing Precision
Leveraging servo control systems alongside precision positioning and leveling mechanisms, the press feeding system ensures fully automated, precise control. This eliminates errors associated with manual operation, consistently meets the high-precision requirements for processing hardware, automotive parts, and electronic components, and significantly boosts product yield rates.
Production Costs are Kept Under Control
The integrated design of the press feeding machine minimizes equipment footprint and procurement costs, while the highly automated operation drastically reduces staffing requirements and labor expenses.
Furthermore, the press feeding system's precise leveling and feeding capabilities minimize material waste.
KINGREAL STEEL SLITTER offers a comprehensive range of press feeding machines suitable for diverse applications—including thin sheets, medium-to-thick plates, and high-tensile specialty materials.
Models can be customized to match the specific capacity and precision requirements of various punch presses, fully satisfying the demands of both precision and high-volume stamping production.
