In the modern metal processing sector, the transition from manual operation to high-speed automation is no longer merely an optional enhancement but a necessity for maintaining competitiveness.
Driven by the growing demand for precision-cut metal sheets in industries such as automotive manufacturing and construction, the automatic cut to length line has become a cornerstone of efficient production.
These automatic cut to length machines enable manufacturers to produce high-quality metal sheets at maximum capacity within minimal timeframes.
This article explores the technical details and strategic advantages of implementing fully automatic cut to length lines.

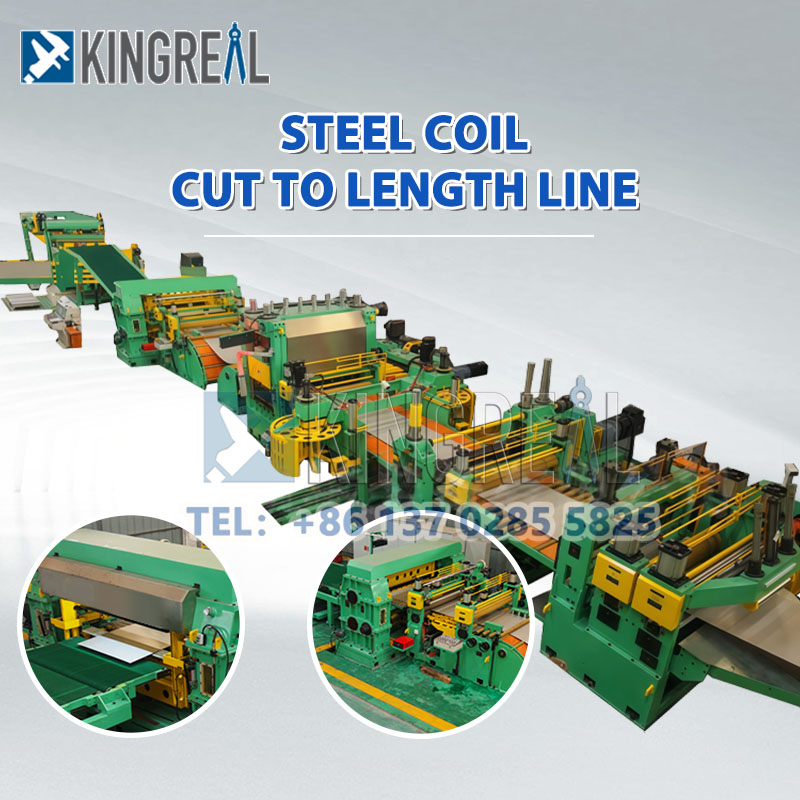

Definition of Automatic Cut to Length Lines: A Seamless Production Process
An automatic cut to length machine is designed to process metal coils into flat sheets with precise dimensions. The primary objective of the automatic cut to length line is to eliminate manual intervention—traditional manual operations are often prone to errors and can slow down production.
|

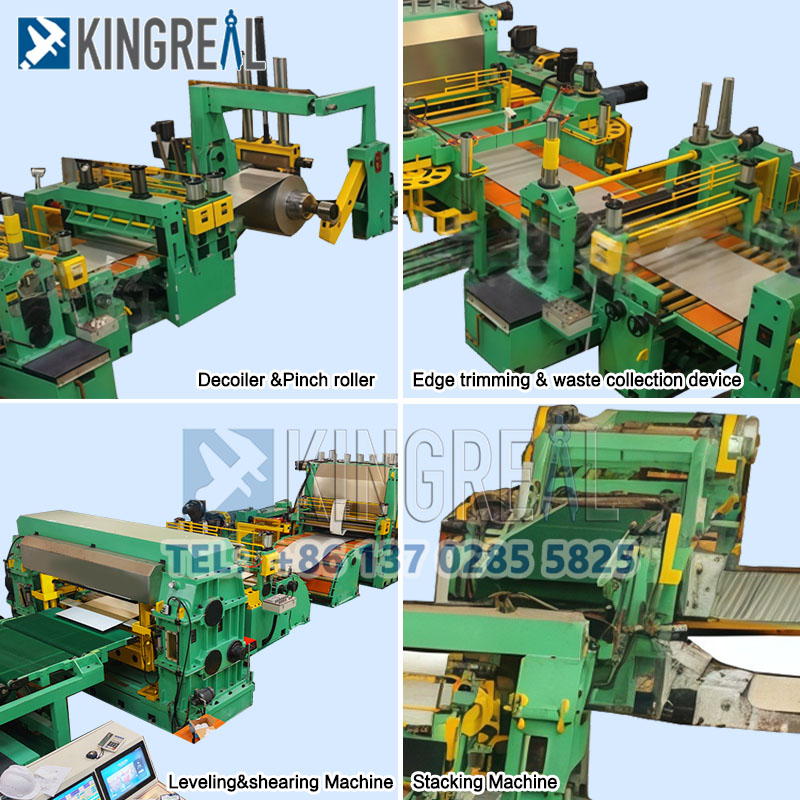

Automatic cut to length machines achieve full process automation through a series of synchronized operations: Uncoiling: A decoiler releases heavy metal strip material under controlled tension. Leveling: Eliminates internal stresses and shape defects. Feeding and Measuring: Utilizes Numerical Control (NC) systems to ensure strict length tolerances. Shearing: Cuts the strip at high speed without stopping the production line. Stacking: Automatically collects and stacks finished sheets for subsequent logistics and transport.
|
 |
Core Technical Components: Configuration and Optimization
The efficiency of an automatic cut to length line depends largely on the configuration of its core components. Depending on material thickness and surface quality requirements, manufacturers like KINGREAL STEEL SLITTER offer a variety of specialized modules:
A. Precision Leveling Systems (4-Hi / 6-Hi Rollers)
Leveling is arguably the most critical process step. Improper leveling leaves residual stress in the sheets, leading to warping or deformation during subsequent processing stages such as laser cutting or welding.
4-Hi Leveler: Suitable for general-purpose applications.
6-Hi Leveler: Equipped with intermediate rolls to prevent work roll deflection. This is essential for high-strength steels and materials requiring superior surface quality. Dual-Leveler Configuration: For complex materials, using two levelers in tandem ensures the simultaneous elimination of stresses from both rough and precision leveling stages, resulting in superior flatness.
B. Closed-Loop NC Feeding and Surface Protection
The NC feeder acts as the "brain" of the measurement process, utilizing high-precision encoders to track strip length in real-time.
Feedback Loop: The system maintains real-time communication with the hydraulic or servo shear unit, ensuring cutting precision within ±0.3mm.
Laminating Device (Optional): For delicate materials such as stainless steel or pre-coated aluminum, a laminating device can be integrated to prevent surface damage (e.g., scratches) during feeding and stacking.
C. Advanced Shearing System: Speeds up to 80 m/min
The shearing method determines the production line's overall capacity.
Flying Shear: The shear moves synchronously with the strip, performing "dynamic" cuts without interrupting material flow. This enables operating speeds of up to 80 m/min, significantly boosting output.
Rotary Shear and Swing Shear: Suitable for high-speed precision cutting or processing specialized trapezoidal sheets.
D. Automated Stacking Solutions
Efficient stacking prevents bottlenecks at the end of the production line.
Gantry-style Stacker: Suitable for heavy and large-format sheets.
Dual-Station Stacking: Supports continuous production; while a forklift transfers one stack, the equipment automatically switches to the other station to continue operations.
Open Style Stacking: Uses an air cushion to guide sheets into position, protecting delicate surfaces.
Why Automatic Cut to Length Lines Are Crucial for Business Growth?
-Significant Reduction in Labor Costs: Automatic cut to length line allows a single operator to manage the entire line—tasks that previously required a full team. This enables the reallocation of human resources to higher-value activities.
-Enhanced Workplace Safety: Minimizing manual handling of heavy metal coils and sharp sheets drastically reduces the risk of workplace injuries.
-Superior Precision and Quality: Servo-driven systems ensure consistency unmatched by manual measurement, thereby lowering scrap rates and preventing costly material waste.
-Maximize profitability: Higher operating speeds (80 m/min) combined with minimal downtime translate to a faster return on investment (ROI). In the high-volume metal trade, the ability to deliver orders faster than competitors is a crucial market advantage.
 |
 |
Transitioning to an automatic cut to length machine is a strategic move toward manufacturing excellence. However, the success of this transition hinges on the reliability of your equipment supplier.
As a manufacturer and supplier of fully automatic cut to length line solutions, KINGREAL STEEL SLITTER leverages decades of expertise in metal coil processing. We are dedicated to providing customized production lines—ranging from space-saving compact cut to length lines to high speed cut to length machine designed for industrial-scale production.
Whether you are processing thin stainless steel (0.2 mm) or heavy-duty carbon steel, KINGREAL STEEL SLITTER superior engineering ensures optimal performance in terms of durability, processing precision, and profitability.
Ready to upgrade your production capabilities? Contact KINGREAL STEEL SLITTER today to discuss the ideal automatic cut to length line solution for your facility with our engineers.
