The KINGREAL STEEL SLITTER team has designed a bridle tension slitting line specifically for food-grade tinplate. Food-grade tinplate is widely used in the manufacture of canned goods, beverage cans, milk powder cans, and food bottle caps. Slitting is a crucial process in the production of food-grade tinplate, requiring the precise cutting of wide rolls into customized narrow strips. The processing accuracy and surface integrity directly determine the quality of subsequent packaging and food-grade compliance.
However, traditional metal slitting machines have long faced challenges in processing food-grade tinplate, including uneven tension, edge burrs, scratches on the tin plating layer, and insufficient dimensional accuracy. This bridle tension slitting machine, based on innovative belt tension technology, balances slitting accuracy, production efficiency, and food-grade compliance, fundamentally solving problems such as tin plating layer damage, tension control issues, and accuracy deviations.
|
The bridle tension slitting machine is developed for metal sheets with high surface finish requirements. Its core innovation lies in the upgraded and optimized tension station. Replacing the traditional rigid tension mechanism with a dedicated belt tension station completely eliminates surface scratches and is suitable for processing high-end materials such as food-grade tinplate. Structurally, the special belt is evenly divided into multiple strips, each independently matched with an idler pulley. Individual tension adjustment is achieved through the idler pulleys, ensuring completely uniform tension across multiple parallel tinplate strips and avoiding issues such as uneven strip tension and dimensional deviations. Tension adjustment uses a hydraulic control mode. By adjusting the hydraulic pressure of the pressing cylinder, the counter-tension can be freely adjusted according to the material, thickness, and slitting width of the food-grade tinplate, adapting to the processing of tinplate of different thicknesses.

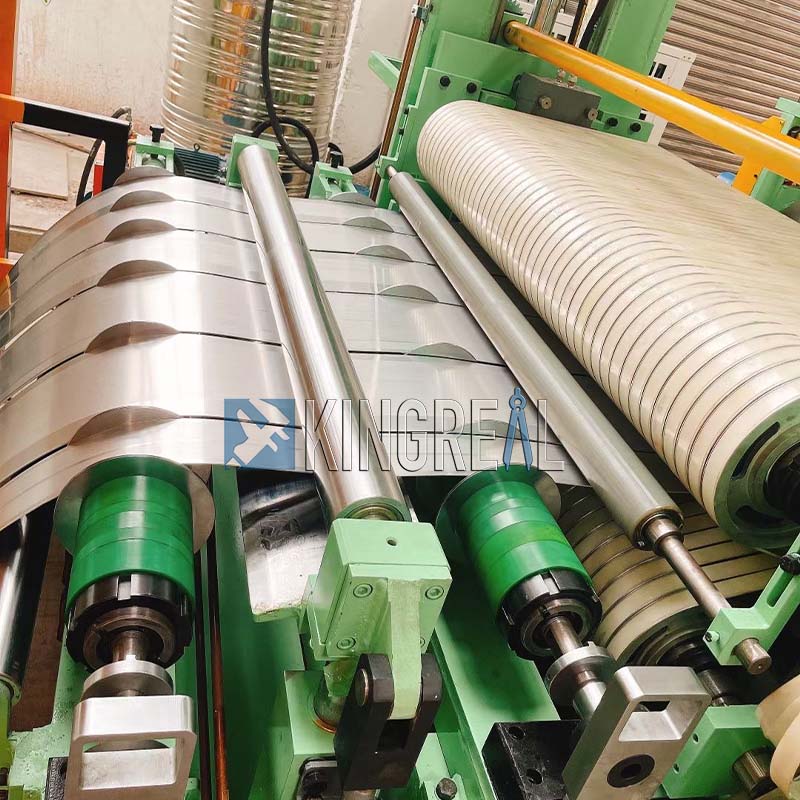

In terms of working principle, the bridle tension slitting line uses a belt positioned between two upper and two lower rollers. With the aid of a handwheel, cylinder, or hydraulic cylinder, pressure is evenly applied to the sheet metal, creating stable friction between the belt and the rollers, thus generating controllable tension. This flexible tension generation structure, unlike the rigid roller tension of traditional metal slitting machines, allows the belt and sheet metal to move synchronously and in flexible contact throughout the entire process, eliminating hard friction and indentation. This perfectly meets the stringent requirements of food-grade tinplate for surface smoothness and coating integrity. The core function of the bridle tension slitting machine is to dynamically adjust the tension of the tinplate in real time throughout the slitting process using a dedicated tension roller and a high-precision control system. This completely avoids problems such as material slippage, stretching deformation, and wrinkles, fundamentally solving industry pain points such as scratches on the tinplate layer, edge burrs, and dimensional deviations. The entire process fully meets the hygiene, safety, and processing standards for food-grade tinplate. To meet the diverse needs of different customer projects, KINGREAL STEEL SLITTER bridle tension slitting lines support customized designs and can adapt to food-grade tinplate of different thicknesses and widths. |
 |

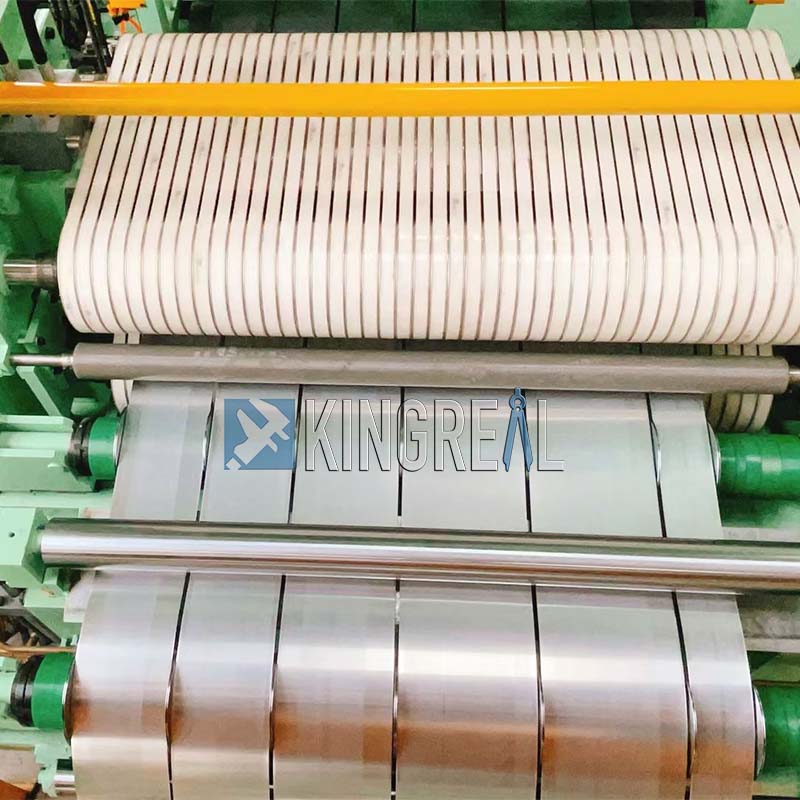

1. KINGREAL STEEL SLITTER bridle tension slitting machines rely on precise belt tension control technology to completely solve the problems of loose winding, severe layer misalignment, and uneven end faces in traditional metal slitting machines. The bridle tension slitting line applies uniform tension synchronously through multiple independent belts, ensuring consistent tension and neat arrangement of each tinplate strip during winding. The winding ends are smooth and flat, with misalignment tolerances strictly controlled to a minimum. The coils are tightly wound without loosening, deviation, or curling. This neat and compact winding not only facilitates subsequent handling, storage, and secondary processing but also effectively prevents collision deformation and plating damage during transportation, ensuring the integrity of food-grade tinplate throughout the process and improving the finished product qualification rate and grade.
2. The KINGREAL STEEL SLITTER bridle tension slitting machine utilizes flexible belt tension technology. The belt moves synchronously and closely adheres to the tinplate surface throughout the entire process, eliminating relative sliding, rigid friction, and hard contact pressure. This fundamentally avoids surface scratches, indentations, and plating abrasions caused by traditional rigid roller pressing or metal tension mechanisms. The special composite belt material is soft, wear-resistant, and lint-free, preventing secondary contamination of the tin plating layer. It fully meets the hygiene standards for food-grade material processing, making it particularly suitable for processing materials with extremely high surface requirements, such as tinplate, providing comprehensive surface protection for food-grade tinplate.
3. The KINGREAL STEEL SLITTER bridle tension slitting line innovatively adopts an integrated design of the belt tensioning device and the felt tensioning device, arranged vertically on the same base structure, resulting in a compact and rational layout. Equipped with a drive motor, the bridle tension slitting machine can control the tension station to rotate 180 degrees, quickly and seamlessly switching between belt tensioning and felt tensioning modes. One machine performs two tensioning functions, significantly improving the equipment's versatility and cost-effectiveness. When processing ordinary high-surface-area materials, the belt tension mode provides stable and uniform tension; when processing ultra-thin, ultra-soft, or more pressure-sensitive food-grade tinplate, switching to the felt tension mode further reduces contact pressure, achieving ultra-flexible tension control to meet the processing needs of different working conditions and materials.
4. The KINGREAL STEEL SLITTER bridle tension slitting line is equipped with a user-friendly manual pressure adjustment device, making operation simple and convenient. No complex professional skills are required; ordinary operators can quickly learn to use it. When processing food-grade tinplate of different thicknesses, the belt tension can be precisely adjusted simply by manually turning the pressure adjustment knob, easily adapting to the tension requirements of tinplate within a variety of thicknesses. The tension adjustment range is wide and highly precise, and the adjustment process is intuitive and controllable. The tension status of the sheet can be observed in real time and fine-tuned to ensure optimal tension for sheets of different thicknesses, avoiding excessive tension leading to sheet stretching and deformation, or insufficient tension leading to loose winding and strip deviation. The simplified operation design lowers the barrier to entry for equipment operation, reduces human error, and improves production stability and continuity, making it suitable for efficient production in food packaging companies.
 |
 |
 |
Designed specifically for food-grade tinplate, the KINGREAL STEEL SLITTER bridle tension slitting line, with its advantages of high precision, high safety, and high adaptability, is widely used in food-grade tinplate processing enterprises, food packaging plants, and metal packaging accessory processing plants.
-Food-grade tinplate processing enterprises: As core enterprises in tinplate production and supply, they need to slit wide virgin tinplate rolls into narrow strips of varying widths to supply downstream food packaging plants for can body, bottle cap, and other forming processes. KINGREAL STEEL SLITTER bridle tension slitting machines can efficiently and precisely slit wide tinplate, producing strips with smooth, burr-free edges, flawless surfaces, and accurate dimensions, significantly improving slitting efficiency and product qualification rates while reducing material waste.
-Food packaging plants: Food packaging plants typically have their own tinplate slitting processes, directly slitting purchased wide tinplate into narrow strips suitable for can bodies, can bottoms, bottle caps, and other components. This achieves integrated production, shortens the supply chain, and reduces costs. KINGREAL STEEL SLITTER bridle tension slitting lines can achieve high-precision tinplate slitting, producing strips with precise dimensions, smooth edges, and intact plating, completely avoiding problems such as uneven can body splicing, weld leakage, and poor bottle cap sealing.
We are a metal packaging parts processing factory specializing in the production of food packaging components, such as bottle caps, pull tabs, can sealing rings, and metal buckles. We have extremely high requirements for the slitting precision, surface quality, and edge burr control of tinplate strips. KINGREAL STEEL SLITTER bridle tension slitting machine can precisely slit narrow strips of tinplate suitable for various parts production. The slit strips are burr-free, scratch-free, and have controllable dimensional tolerances, ensuring smooth subsequent stamping, bending, and forming processes and avoiding mold damage and product scrap caused by strip quality defects.
For detailed bridle tension slitting line parameters, customized solutions, and quotations, please contact KINGREAL STEEL SLITTER directly. We will respond quickly and provide you with a customized solution.
