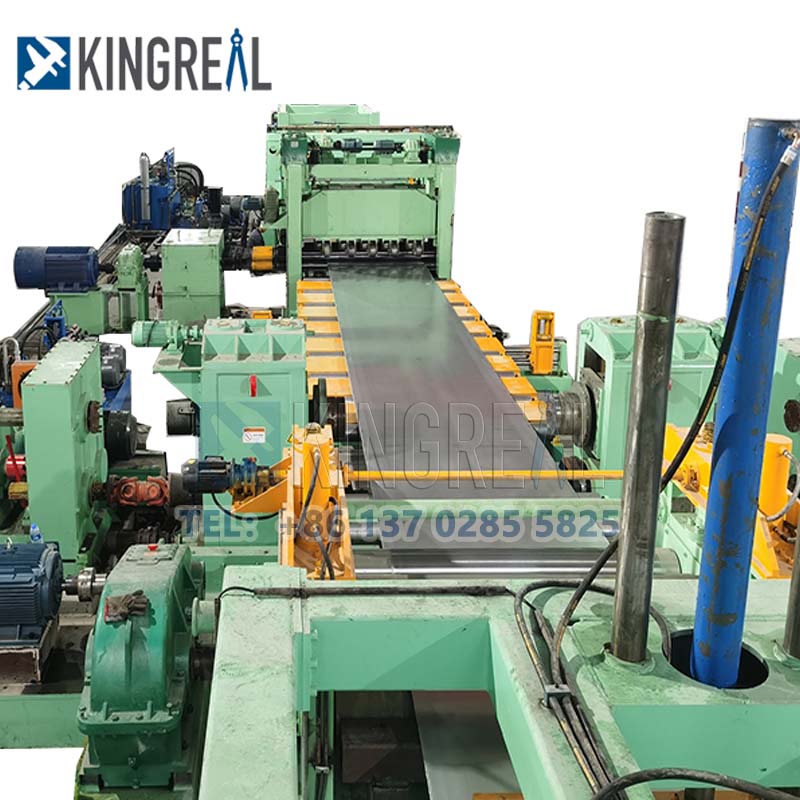

Suitable for metal materials with thicknesses ranging from 6-*25mm, heavy gauge cut to length machines are commonly utilized in several industries.
These flexible, heavy gauge cut to length lines are a must-have tool in the metalworking sector since they can handle a broad spectrum of input thicknesses and material kinds.
This article will delve into the operating principles, key components, application scenarios, and importance of heavy gauge cut to length machines in modern manufacturing.
The core operating principle of heavy gauge cut to length machines is the shearing of metal materials using large shearing machine. Usually fitted with several shearing techniques, including flying shearing, rotating shearing, swing shearing, and fixed shearing, heavy gauge cut to length lines are typically equipped with this feature. The shearing technique selected is determined by particular material characteristics and processing needs.
Flying shearing: Suitable for fast cutting speeds and commonly used in high-volume production.
Rotary shearing: Highly precise shearing with rotating blades, suitable for cutting complex shapes.
Swing shearing: Shears metal coils with swing blades.
Fixed shearing: Require heavy gauge cut to length machine downtime for processing during shearing, suitable for small-batch production.

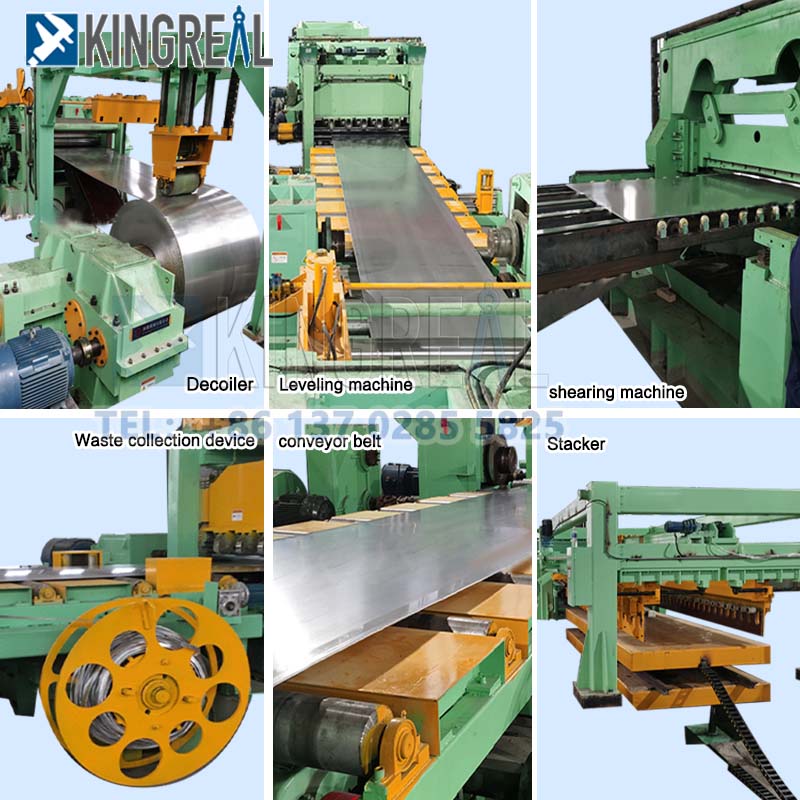

Several main parts in a standard setup for a heavy gauge cut to length machine cooperate to produce an accurate and effective shearing operation. Among the essential ingredients are the following:
-Hydraulic loading trolley for heavy gauge cut to length line: Automatically feeds metal material into the heavy gauge cut to length machine, reducing manual labor and improving efficiency.
-Decoiler for heavy gauge cut to length line: Unwinds the coiled material for subsequent processing.
-Hydraulic feeder for heavy gauge cut to length line: Ensures smooth material entry into the heavy gauge cut to length machine.
-Pinch-feed leveler for heavy gauge cut to length line: Initially straightens the material to reduce deformation.
-Transition table for heavy gauge cut to length line: Connects various processing steps to ensure smooth material flow.
-Corrector for heavy gauge cut to length line: Maintains stable material position during the shearing process to prevent deviation.
-Fine-calibration unit for heavy gauge cut to length line: Further fine-tunes the material to ensure cutting quality.
-Shearing machine for heavy gauge cut to length line: Core equipment, responsible for the actual shearing operation.
-Conveyor table for heavy gauge cut to length line: Transports the sheared material to the next process step.
-Pneumatic discharger for heavy gauge cut to length line: Automatically discharges the sheared product, improving production efficiency.
-Stacking trolley for heavy gauge cut to length line: Stacks the finished product for easy processing.
The coordinated operation of these components makes heavy gauge cut to length machines a critical component in various metalworking industries.
Mechanical manufacturing: Used to manufacture various mechanical components and structural parts.
Stainless steel products industry: Produces high-quality stainless steel products to meet market demand.
Automotive industry: Provides various metal parts for automotive manufacturing.
Container industry: Used for shearing metal structures for containers.
Home appliance industry: Produces housings and internal structures for home appliances.
Food packaging industry: Provides safe and compliant packaging materials for the food industry.
Construction industry: Used for shearing and processing building materials.
Shipbuilding industry: Provides high-strength metal materials for shipbuilding.
Boiler manufacturing industry: Used for fabricating metal components for boilers.
KINGREAL STEEL SLITTER offers customized heavy gauge cut to length line solutions based on our customers' specific production needs to enhance equipment productivity.
The following are some available customization options:
Coil handling equipment for heavy gauge cut to length machine: Increases strip tension and ensures cutting accuracy.
Heavy gauge flattening machine for heavy gauge cut to length machine: Due to the thicker sheet metal, the flattening machine requires higher specifications.
Edge control for heavy gauge cut to length machine: Ensures consistent strip position during the shearing process. High-resolution feedback device: Provides tight cutting tolerances, ensuring precision for every workpiece.
Laminating device for heavy gauge cut to length machine: Enhances the surface smoothness of metal sheets and enhances aesthetics.
Feeder for heavy gauge cut to length machine: Automatically transports heavy coils to the decoiler, reducing labor costs.
Digital diagnostic platform for heavy gauge cut to length machine: Enables preventive and predictive maintenance of the heavy gauge cut to length line, ensuring proper operation.
Integrated monitoring system for heavy gauge cut to length machine: Real-time monitoring of production status ensures efficiency.
With these options, customers can flexibly configure the heavy gauge cut to length line based on their specific needs, maximizing production efficiency.
The technical parameters of a heavy gauge cut to length line are crucial. The following heavy gauge cut to length machine parameters are for reference only.
If you have specific production requirements, please contact KINGREAL STEEL SLITTER, and our engineers will tailor a heavy gauge cut to length line to suit your needs.
Material Thickness:
6-25mm
Material Width:
2000mm, 2200mm
Decoiler Load Capacity:
35 tons
Leveling Accuracy:
≤2.5mm/㎡ (standard plate)
Shearing Accuracy:
≤±1.5mm/2m
Total Unit Power:
~450kW
KINGREAL STEEL SLITTER heavy gauge cut to length machines comply with multiple international standards, including:
ASTM (American Society for Testing and Testing),
ANSI (American National Standards Institute),
AISI (American Iron and Steel Institute),
EN (European Standards),
JIS (Japanese Industrial Standards Committee).
These standards ensure high quality and stability, making the heavy gauge cut to length line more competitive in the market.
A heavy gauge cut to length machine is not only an efficient metalworking tool but also an indispensable piece of equipment in modern manufacturing.
Its flexible design and diverse cutting methods accommodate a wide range of thicknesses and materials, making it widely used in a variety of industries, including machinery manufacturing, stainless steel products, and automotive.
Through appropriate configuration and customization options, companies can maximize the production efficiency of their heavy gauge cut to length lines and improve product quality.
In the future, as technology advances, heavy gauge cut to length machines will continue to evolve to meet growing market demand.
We hope this article can provide valuable reference for those working in the metalworking industry, helping them better understand the purpose of heavy gauge cut to length lines and their important role in modern manufacturing.
