KINGREAL manufacturer is committed to designing and Combined Slitting and Cut To Length Line manufacturing automatic combined slitting and cutting to length line production lines suitable for various sheet metal materials. Our machines are characterized by customization and high quality, looking forward to your contact us
Video About This Machine
Brief introduction of combined slitting and cut to length line

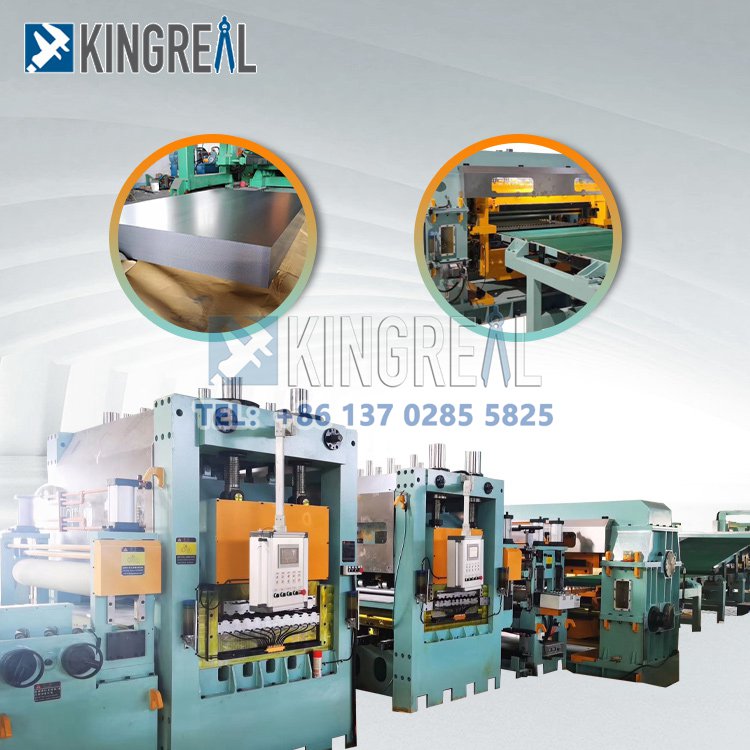

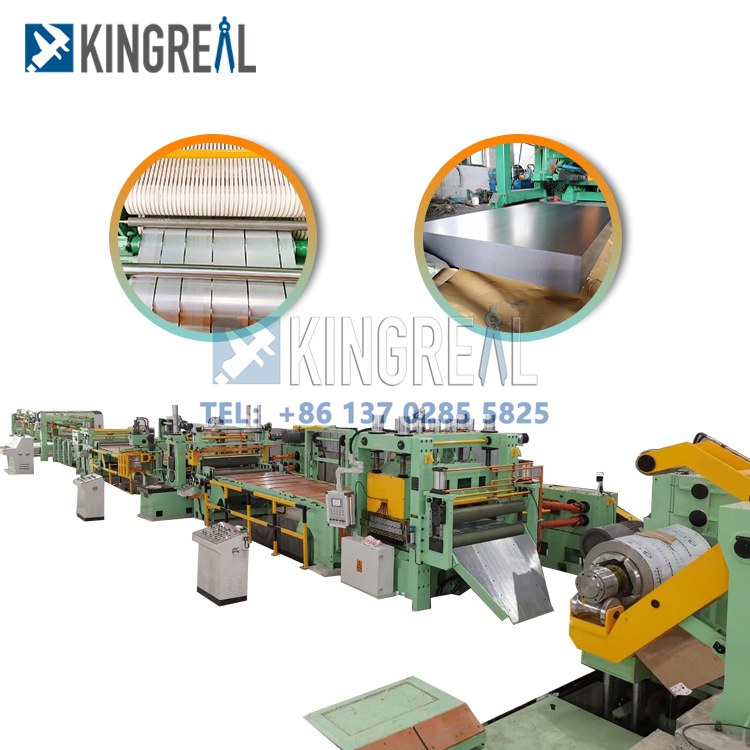

KINGREAL designed the combined slitting and cut to length line, which is a complex multi-functional compound slitting production line.This production line can not only slitting and rewinding, but also cutting the length line and automatic stacking to meet the different needs of customers.
KINGREAL combined slitting and cut to length line is suitable for enterprises and factories that process plates of various materials, which is widely used in the automotive, shipbuilding, aircraft manufacturing industries and building material production.
The production line is consisting of a single unit, the entire production line can meet the needs of slitting and cut-to-length at the same time.
Of course, the customer can also switch from one cutting mode to another through automatic changes and machine adjustments. Consists of a cutting format that also contains a slitting head in order to be able to combine longitudinal and transverse cutting processes in one operation.
Main Components Of This Production Line
1.Hydraulic decoiler
2.Pinch roller
3.Slitting machine
4.Tension
5.Electrical system
6.Rewind
1.Hydraulic decoiler
2.Power high-load straightener
3.Flying shearing machine
4.Operating system with control
5.Full automatic stacking machine
Working Procedure Of This Production Line
Hydraulic coil car→ Hydraulic decoiler（pressing guide +opener）→ Entry rough level→ Cutting→ Guide→ Slitting (waste winding) → Looping storage→ pre-separating, damping→ Rewind → Packing→ Discharging→ Leveling→ Discharging
Combined slitting and cut to length line reference date
Coil Slitting Machine
|
Material thickness |
0.15-1.0/0.4-3.0/1.5-10(mm |
|
Max coil width |
2050mm |
|
Max coil weight |
35Ton |
|
Overall coil diameters |
2100 |
|
Slitting line speed |
0-220m/min |
CTL Machine|
Material thickness |
0.4-3.0/1-4/1.5-6/2-8(mm |
|
Max coil width |
2050mm |
|
Max coil weight |
35Ton |
|
Overall coil diameters |
2100 |
|
Shearing speed |
0-70m/min |
|
Cut sheet length |
0.5-12m |
|
Mac packet weight |
12Ton |
Features Of This Production Line
1. Combining slitting and shearing into one production line, it can meet the production needs of slitting and custom cutting at the same time;
2. It can handle materials of various thicknesses from thin to medium;
3. Automatic loading system. KINGREAL can provide uncoiling trolley and hydraulic uncoiling system
4. In the horizontal mode, it can provide: all kinds of stackers, direct drive, flying shear or rotary shear
5. In portrait mode:
automatic tool change
Separator Replacement System
Exit coil gate
6.Adopt PLC frequency conversion control system, touch screen operation, digital display;
Applicable materials
This production line is widely used in materials such as hot-rolled steel, cold-rolled steel, galvanized steel, PPGI, stainless steel and silicon steel.
