In a full automatic steel slitting line, the cross-type turnstile coil-storage arm plays a pivotal role, helping to ensure the smooth movement and handling of metal coils as they flow through various processing stages. It stands as one of the core auxiliary components enabling high-efficiency, continuous production in full automatic steel slitting machines. When designing full automatic steel slitting lines, KINGREAL STEEL SLITTER typically incorporates this component to enhance the level of automation throughout the entire production process and minimize the need for manual intervention.
Cross-type turnstile coil-storage arms are core components for coil storage and handling, specifically designed to complement full automatic steel slitting machines. Their primary function is the orderly storage and efficient handling of finished coils immediately after they have been processed by the full automatic steel slitting line; simultaneously, they can assist in the temporary storage and transfer of raw material coils. They serve as a critical hub, bridging the various stages of the slitting process—including cutting, recoiling, and packaging—to ensure a seamless workflow. The structural design of the cross-type turnstile coil-storage arm is meticulously tailored to the production demands of the full automatic steel slitting machine; typically comprising rotating arms or beams, its core function is to secure and rotate coils to facilitate temporary storage or subsequent processing steps—such as packaging and transfer—thereby guaranteeing an uninterrupted production flow.
To align with the automated production characteristics of the full automatic steel slitting line, the cross-type turnstile coil-storage arm’s design prioritizes compatibility with other machine components. This ensures it can be easily integrated with handling and processing equipment to form a complete, closed-loop automated production system.
To meet the automated control requirements of the full automatic steel slitting line, the cross-type turnstile coil-storage arm is driven by a motor control system and supported by a PLC. This configuration enables precise positioning and flexible rotation of the coils, perfectly synchronizing with the production rhythm of the full automatic steel slitting line.
In full automatic steel slitting machines, the installation location and structural design of the cross-type turnstile coil-storage arm are optimized specifically around the full automatic steel slitting machine's production workflow. The core objective is to resolve the challenges associated with the discharge, storage, and transfer of finished coils during the production process, thereby boosting the overall production efficiency of the full automatic steel slitting line. Specifically, the cross-type turnstile coil-storage arm component is positioned at the rear of the full automatic steel slitting machine's discharge trolley. It operates in synergy with the recoiler and unloading trolley, creating a precise interface between the slitting operation and the subsequent finished-product handling stages, and ultimately ensuring that the full automatic steel slitting line's production process remains continuous and uninterrupted. The primary objective behind KINGREAL STEEL SLITTER engineers' design of this specific component for full automatic steel slitting machines is to enable the immediate transfer of finished steel coils onto a rotating rack once their tail ends have been secured.
This allows the full automatic steel slitting machine’s recoiler to commence winding the next coil in real-time—without having to wait for an overhead crane to transport the finished product—thereby fundamentally reducing the downtime caused by crane-related delays and eliminating interference from downstream packaging operations. Consequently, this effectively increases the full automatic steel slitting line's actual operating hours and boosts its hourly production capacity. Furthermore, the implementation of the cross-type turnstile coil-storage arm rack liberates the overhead crane from being tied to the full automatic steel slitting machine's production rhythm, allowing for more flexible scheduling and deployment for other heavy-lifting tasks. This further optimizes the workshop's production layout and equipment utilization, ensuring a smoother and more efficient production workflow for the full automatic steel slitting line.

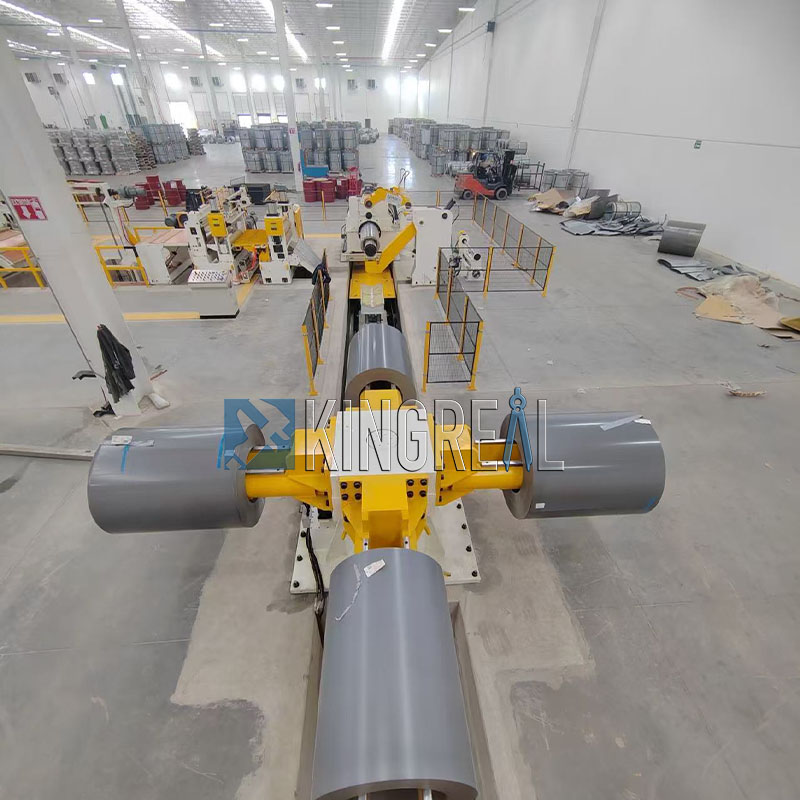

Tailored to the specific load requirements and operational environment of full automatic steel slitting machines, the structure and features of the cross-type turnstile coil-storage arm rack have been meticulously engineered. It employs a "cross-shaped" (180-degree) dual-sided rotating rack configuration, with a single-side load capacity reaching up to 16 tons. This enables it to effortlessly handle the large, heavy metal coils processed by the full automatic steel slitting machine, perfectly meeting the rigorous demands of heavy-duty industrial applications, such as steel processing. The cross-type turnstile coil-storage arm rack is equipped with four storage arms, capable of simultaneously holding multiple finished coils processed by the full automatic steel slitting line. This further enhances the line's continuous production capabilities and prevents downtime caused by the accumulation of finished products. In terms of power, the rack's rotation is driven by a hydraulic motor via a gear transmission system. This mechanism ensures smooth operation and ample power, guaranteeing precise and efficient rotational movements. The rack supports full 360-degree rotation in both clockwise and counter-clockwise directions, offering the flexibility to accommodate various transfer directions and storage requirements for finished coils, thereby facilitating seamless coordination with the full automatic steel slitting machine's unloading trolley and packaging equipment.
Equipping a full automatic steel slitting machine with a cross-type turnstile coil-storage arm significantly elevates its level of automation. This drastically reduces the need for manual intervention, thereby lowering the physical labor intensity associated with manual operations and minimizing production losses resulting from human error. In traditional full automatic steel slitting line production workflows, once the slitting process is complete, manual crane operation is required to lift the finished coils from the recoiler for subsequent packaging. This process is not only time-consuming but also results in prolonged downtime for the full automatic steel slitting machine while it waits, thereby severely compromising its production efficiency. However, with the integration of a cross-arm coil handler, this issue is completely resolved: immediately after the full automatic steel slitting machine finishes its operation, a unloading trolley automatically transports the slit finished material to the cross-arm handler. The cross-arm then takes over the reception and temporary storage of the finished coils, allowing the unloading trolley to immediately return to the full automatic steel slitting line to assist with the next production cycle—thereby achieving a seamless integration of the slitting, unloading, and storage stages.
Top-Mounted Drive System: The rotating gate utilizes a top-mounted drive system—comprising support gears and a motor—which facilitates easier maintenance. This design ensures both operational stability and reliability.
Signal and Mechanical Positioning: The rotating gate employs a hybrid positioning system that combines signal-based detection with mechanical stops, ensuring precise movement and accurate placement of the coils. This advanced positioning mechanism guarantees safe and highly efficient operation.
Stable and Reliable Structure: The rotating gate features a robust frame structure designed for stable operation. Capable of easily supporting heavy loads, it provides a safe and reliable solution for handling large, heavy-duty coils.
