In the modern metal processing industry, stainless steel is widely used in precision manufacturing due to its corrosion resistance, high strength, and stability. However, stainless steel raw materials typically come in large, heavy coils that cannot directly meet the requirements of precision production; consequently, the stainless steel coil slitting machine has become a core piece of processing equipment in the industry.
Designed to handle stainless steel coils of varying thicknesses and lengths, the stainless steel coil slitting line offers manufacturers a highly flexible, high-speed production solution. It produces high-precision, high-quality narrow strips while significantly improving material utilization and processing efficiency.
What is a Stainless Steel Coil Slitting Machine?

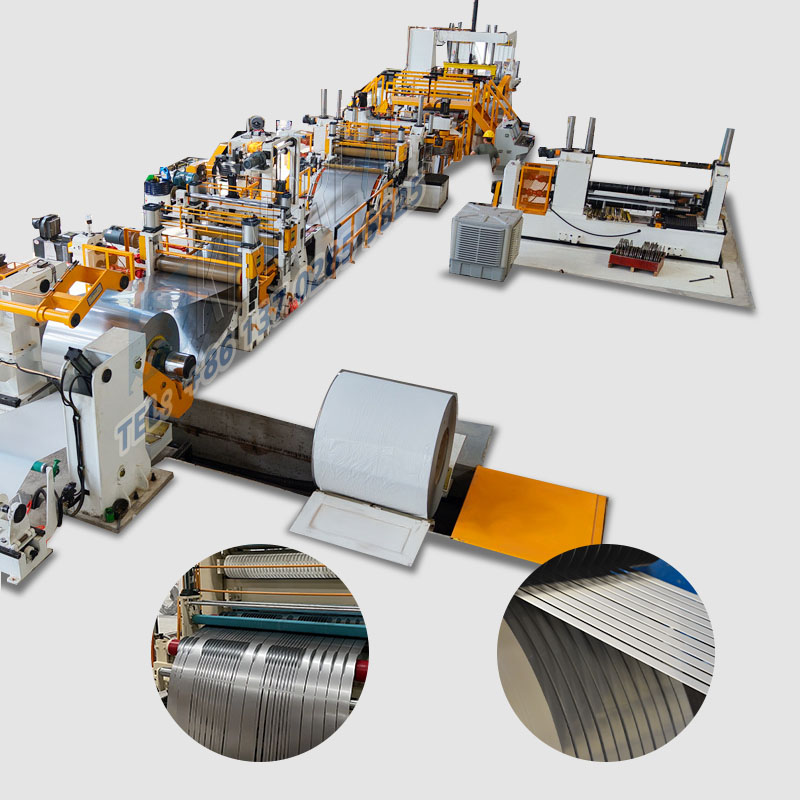

The stainless steel coil slitting line is optimized for the specific properties of stainless steel—addressing challenges such as high hardness, a tendency to form burrs, and susceptibility to deformation. A complete, advanced stainless steel coil slitting machine comprises a decoiler, a precision slitter, a recoiler, and an intelligent control system; these modules work in concert to form an automated production line.
The stainless steel coil slitting line utilizes a set of high-precision circular blades to continuously slit the metal coil lengthwise as it is fed at a constant speed. During operation, the upper and lower blade shafts drive the circular blades to rotate synchronously at precisely matched linear speeds. The sharp edges of the blades generate the necessary shearing force to cleanly separate the material.
Beyond stainless steel, this stainless steel coil slitting machine is also suitable for slitting ordinary steel, aluminum, copper, and various metal alloy coils. With its broad material compatibility and stable processing precision, it serves as a core piece of equipment for precision metal coil processing.
Stainless Steel Coil Slitting Line Process Flow
1. Uncoiling and Loading
First, the stainless steel coil is securely loaded onto the decoiler at the stainless steel coil slitting machine's entry point. The decoiler is equipped with an expandable mandrel; upon startup, the mandrel automatically expands to grip the inner diameter of the coil, holding it firmly in place to prevent shifting or loosening during processing.
Subsequently, the control system precisely regulates the mandrel's rotational speed, driving the master coil to rotate at a constant rate and gradually feed the material into the machine. Simultaneously, the stainless steel coil slitting line's edge-guiding device corrects the coil's position in real-time, precisely guiding the leading edge of the coil smoothly into the next processing station.
2. Longitudinal Slitting Process

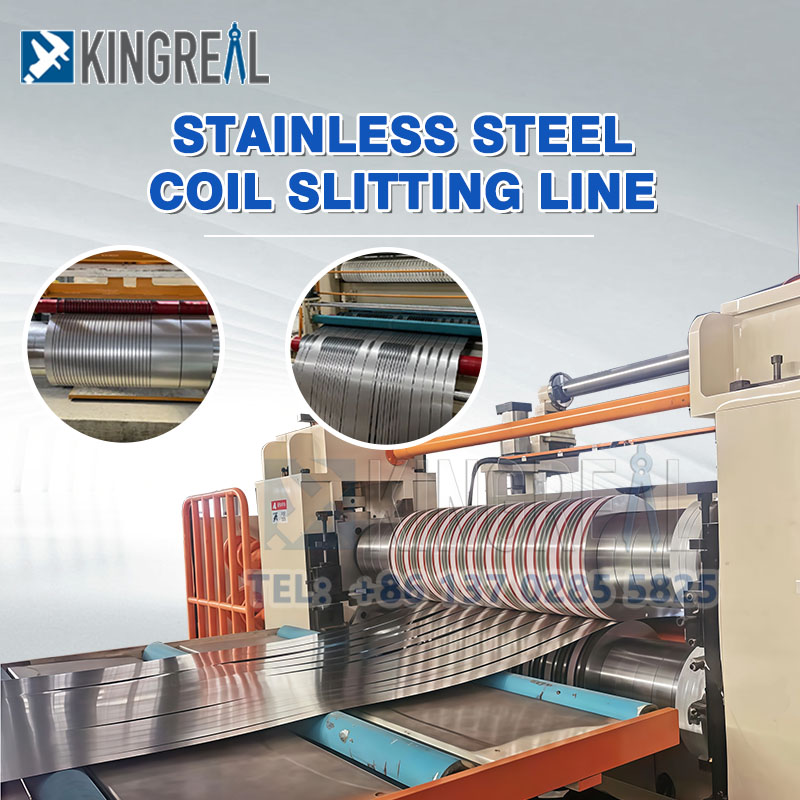

The stainless steel coil, having undergone edge correction, is smoothly fed into the slitting head of the stainless steel coil slitting machine. The core of the slitting head consists of two high-precision cutter shafts arranged in parallel and symmetrically; operators can customize the setup by installing rotary slitting blades and rubber stripper rings at specific intervals on the shafts to meet production requirements.
During operation, the upper and lower cutter shafts rotate synchronously.
The rubber stripper rings maintain close contact with the coil surface, using friction to steadily pull the stainless steel strip through the gap between the shafts at a constant speed, while effectively preventing slippage or scratching.
Meanwhile, sharp circular blades precisely cut into the stainless steel coil, performing continuous longitudinal slitting according to preset widths to divide the wide master coil into multiple narrow strips.
3. Tension Regulation and Rewinding Process
After slitting, the narrow stainless steel strips are loose and lack uniform tension, making them unsuitable for direct storage or transport. At this stage, the stainless steel coil slitting line's tension regulation system engages in real-time to balance the tensile force on each strip, preventing issues such as stretching deformation, wrinkling, or inconsistent tightness.
Maintained under constant tension, the recoiler neatly winds the multiple narrow strips into individual, orderly coils. The stainless steel coil slitting machine precisely controls rewinding speed and coil diameter, ensuring uniform tightness and a neat shape for every finished coil. The resulting narrow stainless steel coils are structurally stable, facilitating subsequent packaging, warehousing, and transport, and are ready for direct use in downstream secondary processing.
 |
 |
PS: Modern stainless steel coil slitting lines are equipped with fully automatic PLC control panels and intelligent feedback systems, enabling precise, automated control over the entire process. Operators do not need to manually intervene in the details of each step; by simply presetting processing parameters on the control panel, the stainless steel coil slitting machine can automatically execute the entire operation.
At the same time, the stainless steel coil slitting line tracks and provides real-time feedback on core production data, including key parameters such as slit width, material thickness, operating speed, processing tension, and rewind diameter.
Diverse Applications of Stainless Steel Coil Slitting Machines
|

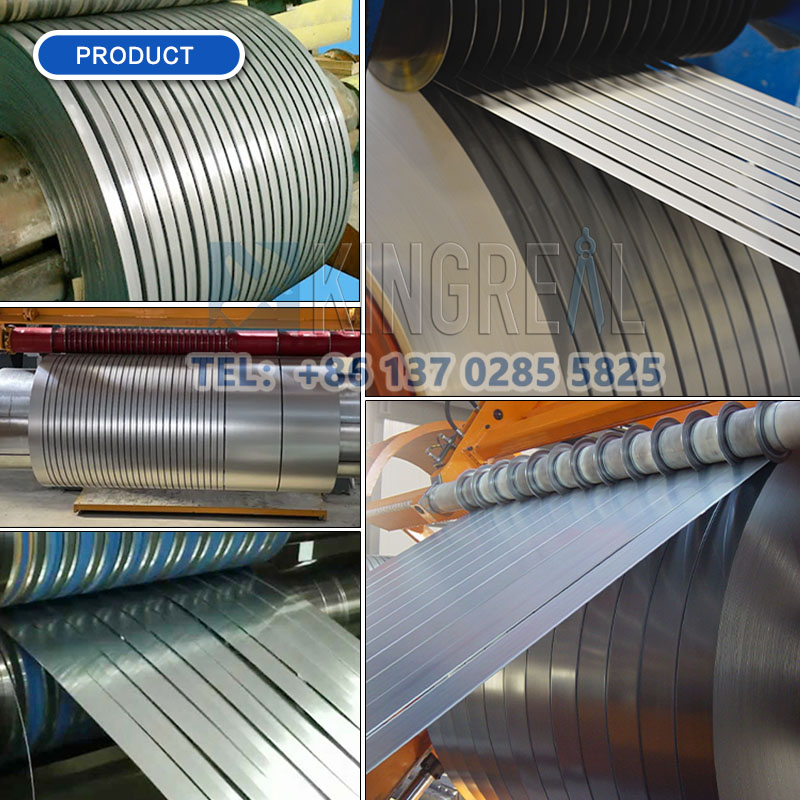

Stainless steel coils processed into narrow strips by the stainless steel coil slitting machine feature precise dimensions, excellent quality, and stable performance; they are suitable for the vast majority of industrial manufacturing scenarios and boast a wide range of applications. These processed stainless steel narrow strips are extensively used in sectors such as heating and energy equipment, food processing machinery, water storage and treatment systems, household appliances, pharmaceutical and chemical equipment, medical devices, offshore drilling platforms, and high-end architectural components.
Furthermore, the narrow stainless steel strips produced by the stainless steel coil slitting line serve as fundamental core materials for industrial manufacturing, enabling the production of various electrical components, automotive parts, vehicle body panels, architectural decorative materials, industrial piping systems, and accessories for appliances such as washing machines, refrigerators, and dryers. Thanks to the high-precision and high-efficiency capabilities of the stainless steel coil slitting machine, the demands for precision and large-scale production across various industries are fully met, driving efficient development across these sectors. |
 |
For more information regarding specifications, customization options, and production details for our stainless steel coil slitting lines, please feel free to contact KINGREAL STEEL SLITTER directly!
