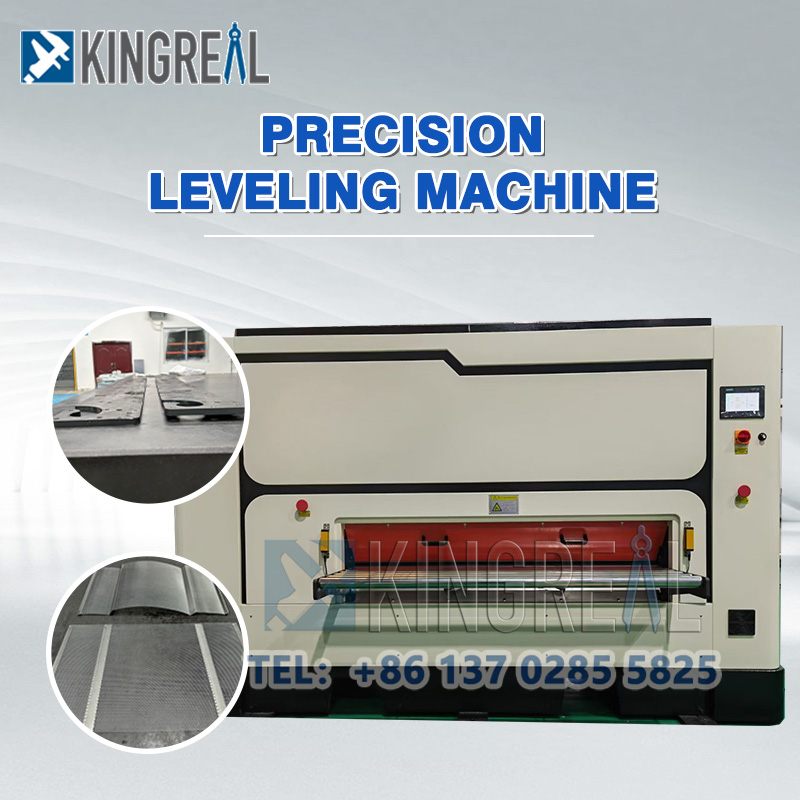

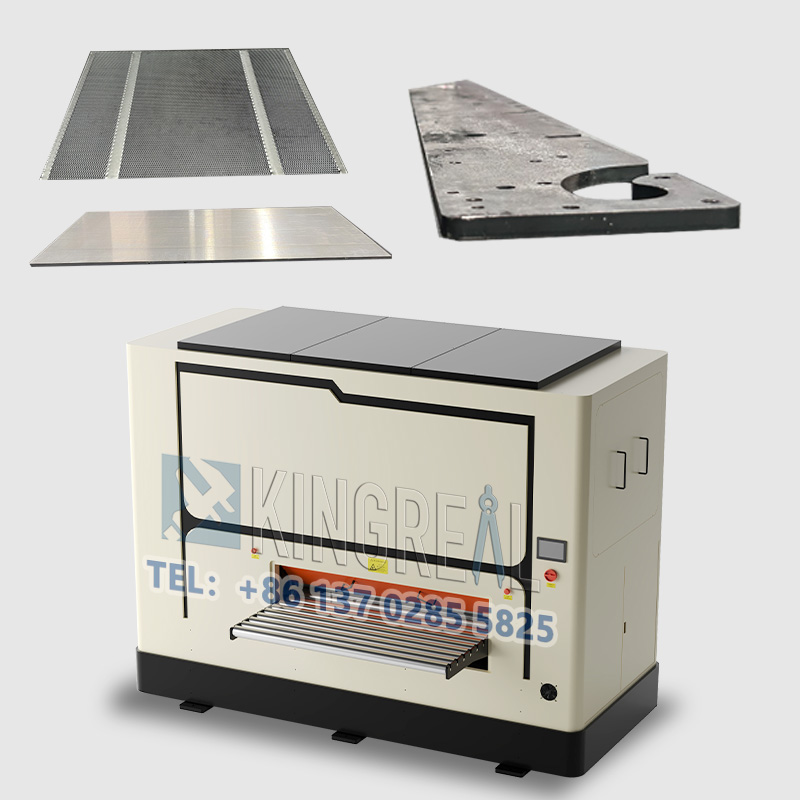

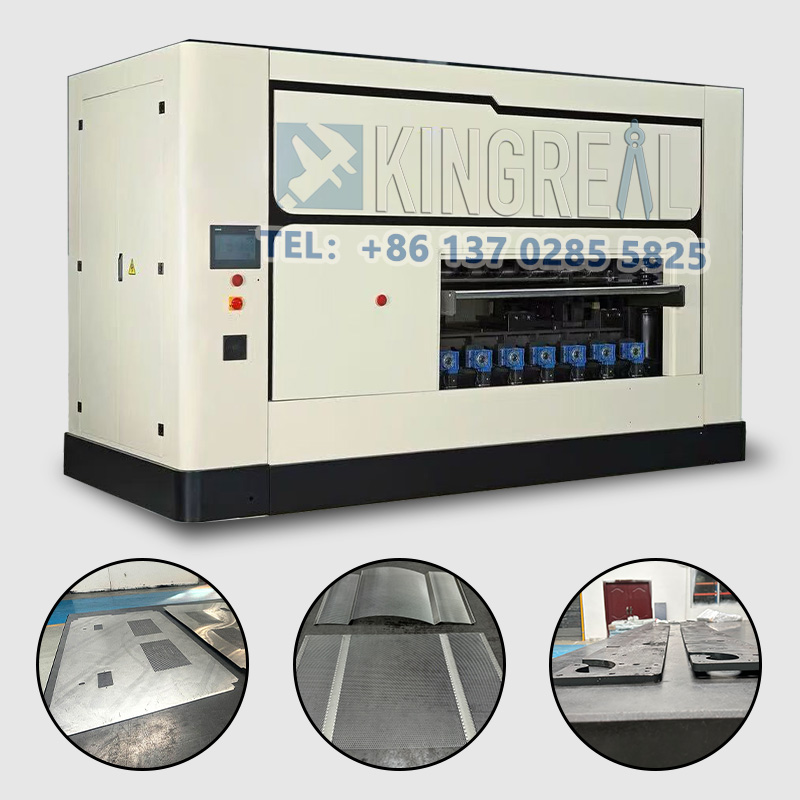

High Precision Roller Plate Leveling Machine

KINGREAL MACHINERY can provide the High Precision Roller Plate Leveling Machine, which is used to leveling the sheet metal to make its surface flat to meet the needs of different industrial sectors. As one of the professional coil process equipment supplier in China, KINGREAL can design different customized solutions for the different production requirements of our customers.

Send Inquiry

Product Description

Video About High Precision Roller Plate Leveling Machine

Description Of High Precision Roller Sheet Plate Leveling Machine

KINGREAL High Precision Roller Plate Leveling Machine is design to used for processing sheet metal, mainly for leveling the sheet metal to make its surface flat to meet the needs of different industrial sectors. As a roller sheet plate leveling machine supplier, KINGREAL can be customized to suit the different needs of our customers.

The Roller Sheet Plate Leveling Unit usually consist of several roller which, through the rotation and pressure of the rollers, flatten the sheet metal for leveling purposes. Sheet leveling units are widely used in the fields of ships, construction, automobiles and machinery, and are one of the indispensable machines in the metalworking industry.

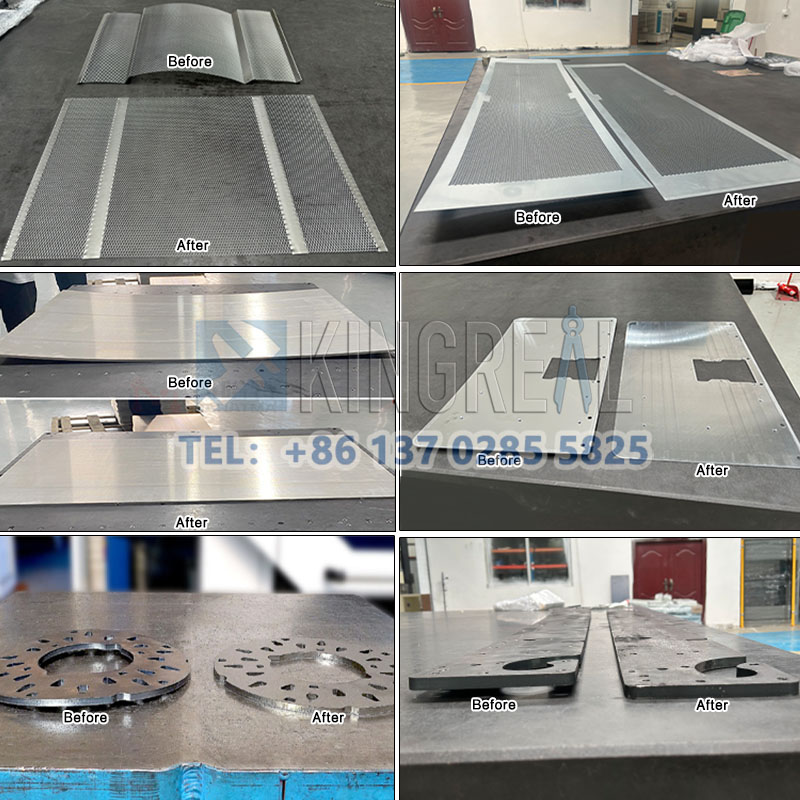

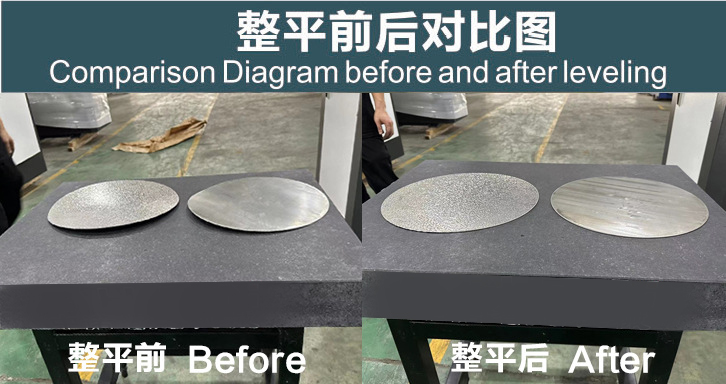

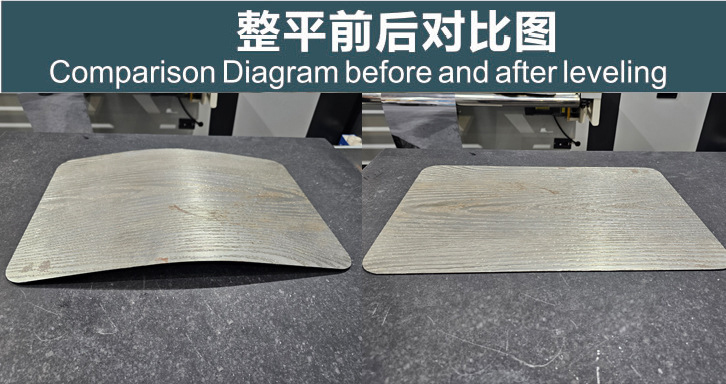

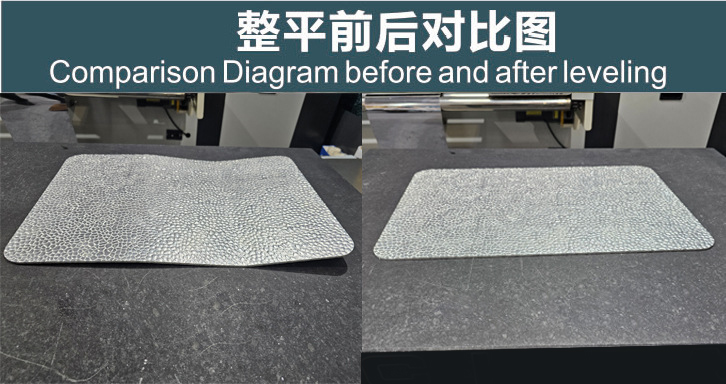

The unit is suitable for cold-rolled, hot-rolled and low-alloy steel plates, which are bent forward and backward several times to gradually change a variety of original curvatures into a single curvature and eventually level them.

Main Component Of Sheet Plate Leveling Machine

The machine is mainly composed of frame, working roll, movable beam, supporting roll, lower base, pressing down mechanism, stop wheel device, measuring device, main drive system, lubrication system, electrical control system, safety system and other parts.

Technical Specification

Model

1.2×Plate width

3×Plate width

6×Plate width

8×Plate width

12×Plate width

Workable width mm

1300、1800

1300、1600、2000

Processable plate thickness mm

0.3-1.2

0.5-3

1.5-6

2-8

3-12

Leveling accuracy mm/m2

<±1mm/m2

<±1mm/m2

<±1mm/m2

<±1mm/m2

<±1mm/m2

Leveling speed m/min

MAX 120m/min

MAX 80m/min

MAX 60m/min

MAX 40m/min

MAX 30m/min

Material of leveling rollers

GCr15

60CrMoV

Calibrating roller diameter mm

φ60

φ85

φ105

120

160

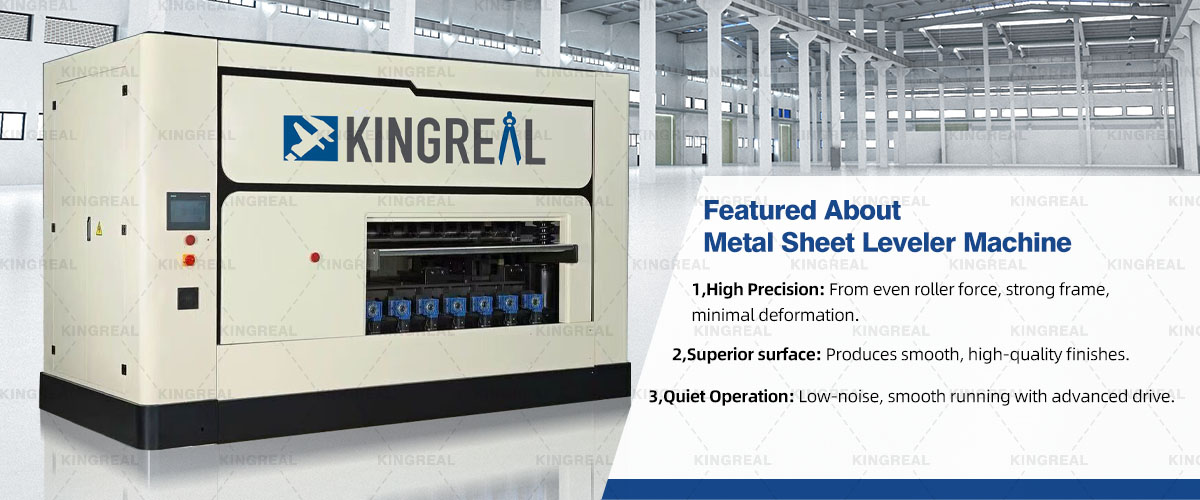

Feature Of High Precision Roller Sheet Plate Leveling Machine

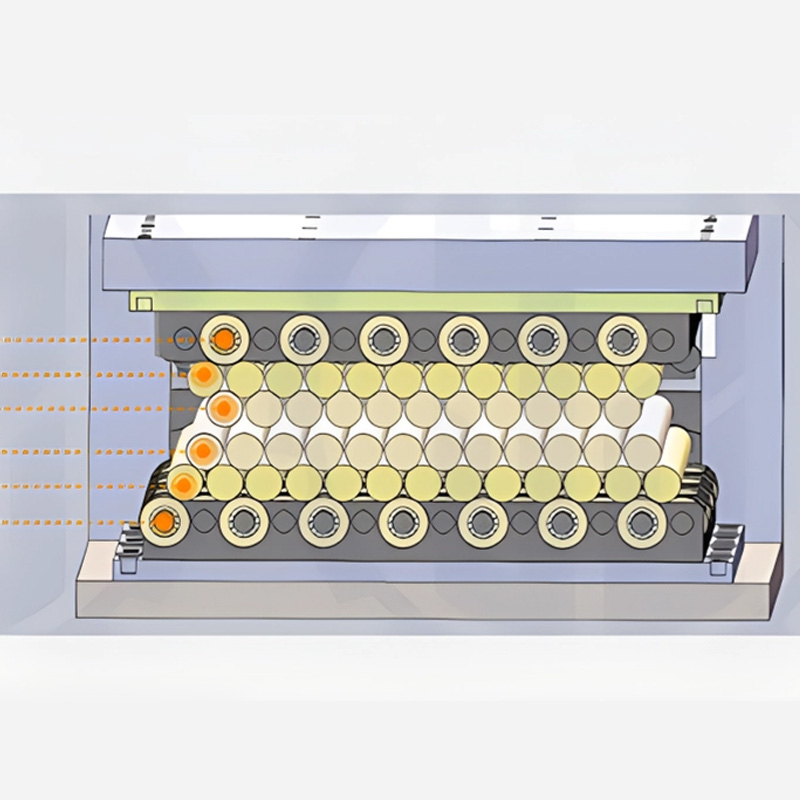

1. The Sheet Plate Leveling Machine is a quadruple structure with two layers of working rollers and two layers of support rollers. The leveling rolls are 60CrMoV forgings, quenched and surface hardened as a whole. The support rolls are two layers, made of 40Cr.



2. The upper working roller and support roller are integrated with the upper cross beam. The lower working roll and support roll are mounted on the machine base. Both the upper and lower support rollers are adjustable in the roller seat, so that the precision of the fit between the support rollers and the working rollers can be adjusted to obtain the best leveling effect.

3. The gap between the upper work roll and the lower work roll can be adjusted separately by means of a reducer motor, enabling the operator to adjust the gap quickly and shorten the auxiliary time when processing plates of different thicknesses.



4. The main power is driven by DC motor, through the reducer, gear distribution box and universal coupling, so that each roll has power, and the operation is steplessly regulated by DC speed regulator. Each roll support all adopts rolling bearing and centralized lubrication system.



In addition, this machine has absorbed advanced technology at home and abroad, with mature technology, compact structure, easy installation and maintenance, practical and reliable, etc. It has been praised by users.

FAQ

Are you a manufacturer?

Yes, KINGREAL Machinery is a professional sheet metal processing machines manufacturer, we are an OEM.



We have been focusing on the field of machine manufacturing for more than 20 years.



How to visit your factory?

There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.



 What's your Install and Training ?

If buyers come to our factory to inspect, the training to install and operate is provided face to face.

If not, Manual book and video is provided to show how to install and operate.



When will you tell me the price?

After confirming all detailed configurations of the machine line, that we are able to make offer for you.
