Steel coil slitting machines are one of the most important coil processing equipment in the metalworking industry. With the rapid development of modern industry, the emergence of steel coil slitting lines has significantly improved customers' production efficiency and quality. Leveraging its accumulated technical expertise and innovation in the steel coil slitting machine field, KINGREAL STEEL SLITTER is able to provide customized steel coil slitting line solutions tailored to customers' diverse production needs, meeting the diverse demands of the market.
Technical Advantages of KINGREAL STEEL SLITTER Steel Coil Slitting Line
KINGREAL STEEL SLITTER steel coil slitting machines are continuously undergoing technological development, resulting in the following significant advantages:
1. Automatic coordinated operation for steel coil slitting line
Feeding, shearing, and receiving are fully automated, allowing for free shearing of the sheet metal. This design ensures zero stretching, deformation, or deviation during processing. Traditional steel coil slitting machines often experience incoordination between feeding and shearing, resulting in reduced production efficiency. KINGREAL STEEL SLITTER steel coil slitting lines utilize an advanced control system, achieving seamless integration of all steps and significantly improving production efficiency.
2. Adjustable tension station for steel coil slitting machine
The adjustable tension station design allows the steel coil slitting line to adapt to the needs of different sheet metal materials, easily handling both thin and thick plates. This flexibility not only enhances the versatility of the steel coil slitting machine but also meets the requirements of customers in diverse production environments.
3. Fixed-length cutting function for steel coil slitting line
KINGREAL STEEL SLITTER steel coil slitting machines support fixed-length cutting, automatic speed reduction and shutdown, and both automatic and manual roll splitting. This greatly simplifies the operating process, reduces manual intervention, and improves production automation.
4. High-precision processing for steel coil slitting line
KINGREAL STEEL SLITTER steel coil slitting machines utilize advanced control systems and precision mechanical structures to ensure minimal dimensional error in the slitting process and smooth, even cut edges, meeting the demands of various high-precision metal processing applications. This is particularly important in the precision manufacturing industry, ensuring the quality and consistency of the final product.
5. Fully digital variable frequency speed control for steel coil slitting line
The steel coil slitting machine utilizes fully digital variable frequency speed control for easy maintenance. The electrical system incorporates multiple safety features to ensure stability and safety. PLC control enables parameter monitoring and fault alarms, allowing operators to promptly identify and address problems and minimize downtime.
6. Adjustable upper blade shaft of circular shear for steel coil slitting line
The adjustable upper blade shaft of the circular shear allows the steel coil slitting machine to flexibly adjust the cutting width to suit different production tasks. This flexibility makes KINGREAL STEEL SLITTER steel coil slitting lines highly competitive in the market.
 |
 |
 |
Upgraded Components of Steel Coil Slitting Machine
To enhance the overall performance of the steel coil slitting line, KINGREAL STEEL SLITTER engineers comprehensively upgraded all components of the steel coil slitting machine. The following is a detailed description of the major components:
1. Loading device for steel coil slitting line
1.1 V-shaped storage table for steel coil slitting line
Located at the front of the uncoiler, this is constructed of welded steel with a non-metallic contact surface. It securely stores incoming coils and protects the coil surface. This design effectively prevents damage during transport and storage.
1.2 Loading trolley for steel coil slitting machine
The four-guide rod device at the front of the decoiler consists of a track, a carriage, and a transfer and lifting mechanism. The loading trolley moves along the track, and the lifting mechanism is hydraulically driven, ensuring efficient and safe loading.
2. Uncoiling and auxiliary devices for steel coil slitting machine
2.1 Front auxiliary support for steel coil slitting line
Located at the front of the decoiler, this system uses a hydraulic cylinder to drive a connecting rod mechanism. The support arm extends to support the decoiler main shaft. The drum-shaped shaft at its head rotates, facilitating maintenance and movement of the decoiler.
2.2 Single-cantilever decoiler for steel coil slitting machine
Utilizing a gearbox structure and a welded steel frame, it offers excellent load-bearing performance. The pyramidal expanding and contracting reel is driven by a hydraulic cylinder, enabling active unwinding and automatic back-tension adjustment.
3. Pinch and shearing device for steel coil slitting line
3.1 Pinch roller for steel coil slitting machine
Located behind the decoiler, the motor drives the pinch rollers, while a hydraulic cylinder controls the upper roller's elevation. The rollers are covered in polyurethane rubber, ensuring efficient material feeding and smooth material flow.
3.2 Slab shear for steel coil slitting machine
Featuring a welded steel frame and hydraulic shearing driven by a slide cylinder, it can be manually sheared in single pieces to meet diverse production needs.
4. Loop and guide device for steel coil slitting machine
4.1 Looper table for steel coil slitting line
The feed plate is constructed of non-metallic material to reduce friction. An ultrasonic looper pit coordinates the speeds of the decoiler and slitting shears, ensuring smooth material flow.
4.2 Side guide device for steel coil slitting line
Located behind the looper table, it accommodates various plate widths and effectively prevents deviation, ensuring smooth entry of the coil into the circular shear.
5. Circular shear & waste handling device for steel coil slitting line

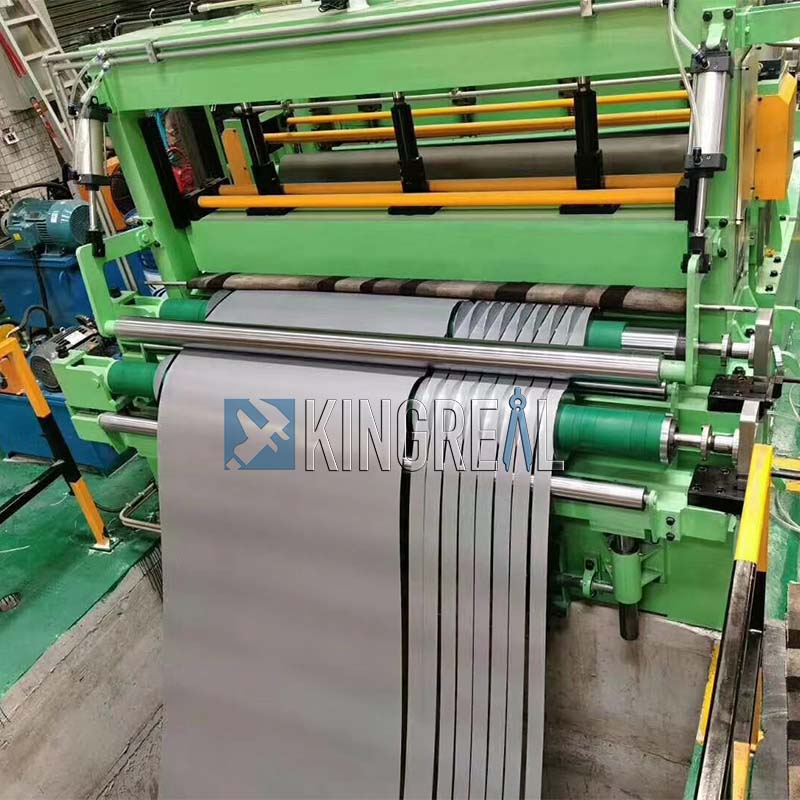

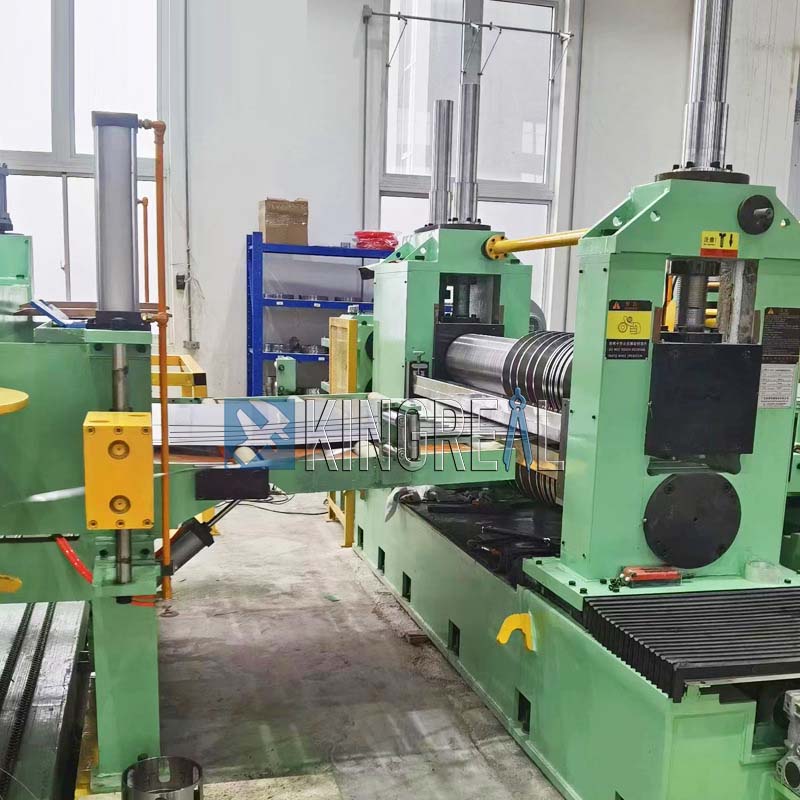

5.1 Circular shear for steel coil slitting machine
Utilizing a hardened gear reducer and variable frequency motor drive, it offers efficient shearing capabilities. Interchangeable modular spacers adjust the finished product width to ensure cutting accuracy.
5.2 Waste collection device for steel coil slitting machine
Installed on both sides of the circular shear, it automatically adjusts the winding speed to maintain synchronized tension, collects the slit scrap, and ensures a clean production environment.
6. Winding device for steel coil slitting line
6.1 Pre-separator + plate tension station for steel coil slitting line
The pre-separator is used to pre-separate the steel strip, while the tension station provides winding tension, ensuring no overlap during the winding process and ensuring finished product quality.

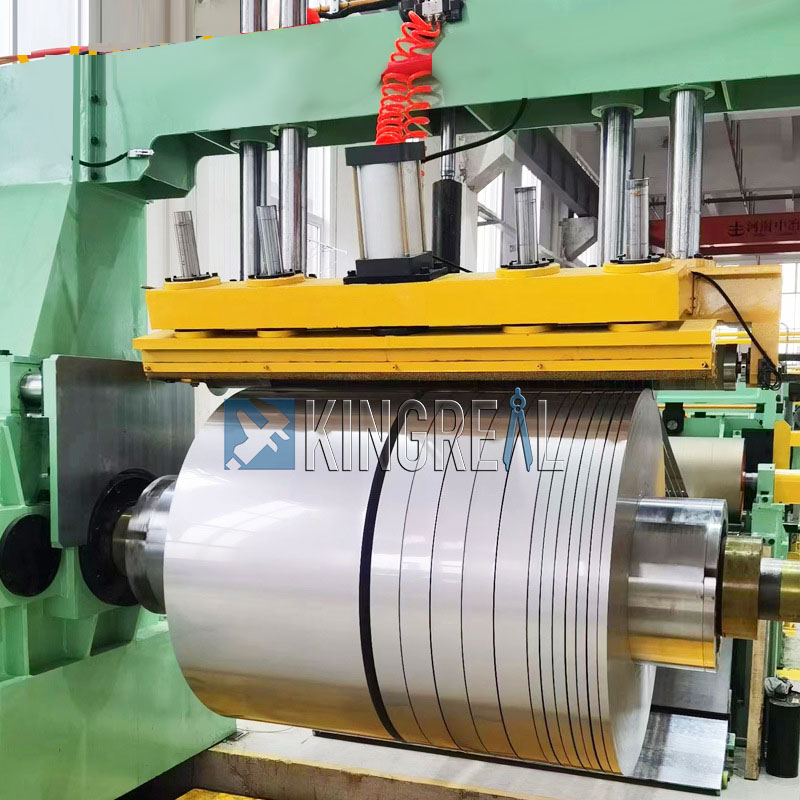

6.2 Recoiler for steel coil slitting machine
Located behind the tension station, the recoiler includes a reel, gearbox, and other components, enabling efficient winding operations to meet customer production needs.
7. Other components for steel coil slitting machine
7.1 Hydraulic system for steel coil slitting machine
The centrally controlled hydraulic system, consisting of a hydraulic station, valve stack, and piping, ensures efficient operation. High-quality hydraulic oil ensures long-term stable operation.
7.2 Pneumatic system for steel coil slitting line
The pneumatic system provides the necessary power to drive and control pneumatic devices, improving overall efficiency.
7.3 Electrical system for steel coil slitting line
A standard three-phase power supply and a centralized control console make operation simple and convenient. The system's intelligent design ensures efficient operation.
KINGREAL STEEL SLITTER engineers meticulously refine every component of the steel coil slitting line to provide customers with high-quality steel coil slitting machines that perfectly meet their needs. In the future, KINGREAL STEEL SLITTER will continue to focus on technological innovation in steel coil slitting lines to meet customers' evolving needs. Whether it's high production efficiency or precise processing quality, KINGREAL STEEL SLITTER steel coil slitting machines will provide customers with the best solutions.
