KINGREAL Double Head Hydraulic Decoiler For Coil Feeder, which enables to place double material on one uncoiler, saving the time of changing material and increasing productivity. It is suitable for each large production line factory.
Video About Double Head Decoil Working In Roll Forming Machine

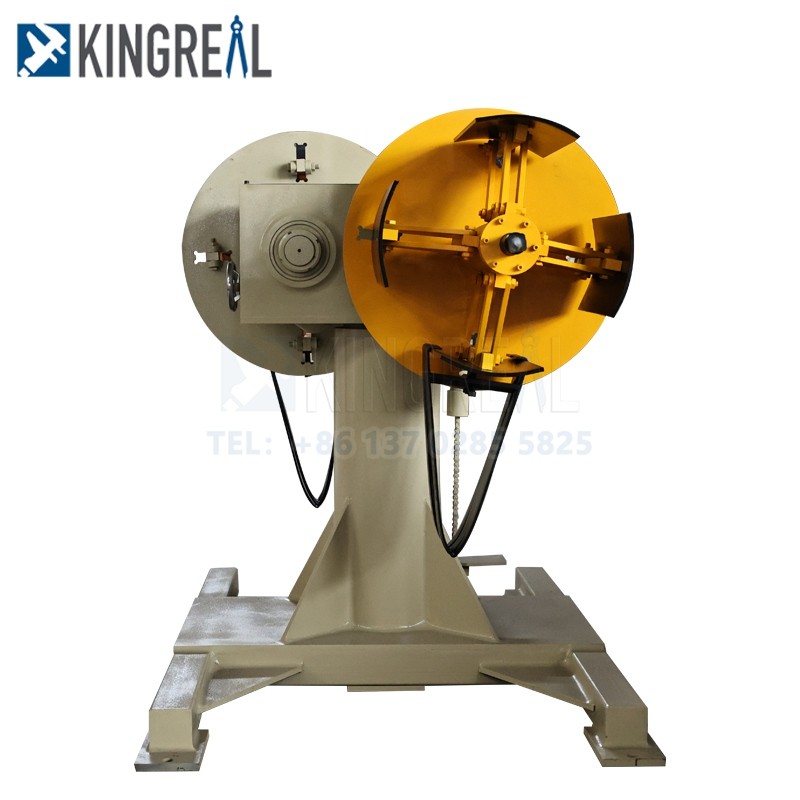

Description Of Double Head Hydraulic Decoiler For Coil Feeder
The hydraulic uncoiler, which has the ability to support the coil and provide tension to the steel strip, is an uncoiler consisting of a frame, a spindle, an up-and-down reel, and a brake device.
To meet the increasing demand for uncoiling, KINGREAL has designed this double head hydraulic decoiler for coil feeder.
The double-head hydraulic uncoiler is a machine for coiling and uncoiling webs, which has two heads for coiling and uncoiling webs and can handle two webs at the same time.
The machine uses a hydraulic system to control the coiling and uncoiling of coils and has high efficiency and stability. Double-head hydraulic uncoiler is usually used in industries such as steel, metal processing and construction materials, which can effectively improve production efficiency and production quality.
Technical Specification Of Double Head Decoiler
|
Model |
MTD-200 |
MTD-250 |
MTD-300 |
MTD-400 |
|
Material Width(mm) |
200 |
250 |
300 |
400 |
|
Strip Thickness(mm) |
2 |
|||
|
Material I.D |
450-530 |
|||
|
Material O.D |
1200 |
|||
|
Material Weight |
200*2 |
300*2 |
500*2 |
1000*2 |
|
Speed Of Fee |
15 |
|||
|
Coil Expasion |
Hydraulic |
|||
|
Machine Weight (KGS |
850 |
950 |
1100 |
1250 |
Feature Of Double Head Hydraulic Decoiler
The reel adopts hydraulic automatic shrinkage/ expansion method, safe, convenient, labor-saving, convenient operation;
The material frame spindle material is high quality 45#, the max load capacity of one side is 5000KG
The material frame spindle slewing bearing is made of heavy duty roller bearing, with electric 180 degree rotation and exchange;
The expansion and contraction barrel is designed with 4 blades ( with a scale to facilitate the centering of the rolled material), the overall curvature coincides with the inner diameter of the material, which will not damage the material in the process of use, with the addition of pressure material arm device, which makes it easy to disassemble and unwind the raw material safely and reliably;
The main box of the material frame is welded with plates, all inverted bevel before welding, the weld seam is continuous and beautiful, after welding the box. After annealing and stress relief treatment, the bearing holes are processed.
Spindle automatic decoiler using passive rotation, leveling unit power traction (with power system, easy to manually lead and decoil forward/reverse drive, automatic state power off into passive traction)
Related Product Display
Metal coil leveling machine is a kind of mechanical equipment used to level metal coils. It usually consists of upper rollers, lower rollers and support frame. Through the rotation and adjustment of rollers, it flattens and stretches the metal coils so as to make their surfaces flat and reach certain thickness and width requirements.
Metal coil leveler is widely used in steel, non-ferrous metal and other metal processing industries for producing various metal products and parts.
A metal coil feeder is a mechanical device used to feed metal coils into downstream processing equipment. It usually consists of coil support device, feeding roller, feeding roller support, feeding roller transmission device and so on. The metal coil feeder can adjust the feeding speed and feeding length as needed to ensure that the metal coil can enter the downstream equipment stably and accurately during the processing, improve the production efficiency and reduce manual operation.
Metal coil feeder is widely used in metal processing industry, such as steel mills, automobile manufacturing plants, home appliance manufacturing plants
