In the standardized workflow of a fully automated steel cut to length machine, the stacking process serves as the final stage of production. It plays a critical role in collecting and organizing the cut metal sheets, directly determining the line's overall capacity and production cadence.
Many metal processing manufacturers currently face a common challenge: while modern steel cut to length lines feature high-speed, highly automated processes—including uncoiling, leveling, precision feeding, and shearing—the efficiency of the downstream stacking process lags behind, creating a significant production bottleneck. Inefficient stacking slows down the entire line, leading to issues such as upstream equipment idling, wasted capacity, and extended delivery times for batch orders.
To address this, KINGREAL STEEL SLITTER has optimized the downstream structure of steel cut to length machines by incorporating a custom dual-stacker. This enables continuous stacking of metal sheets, comprehensively boosting the line's overall production efficiency.

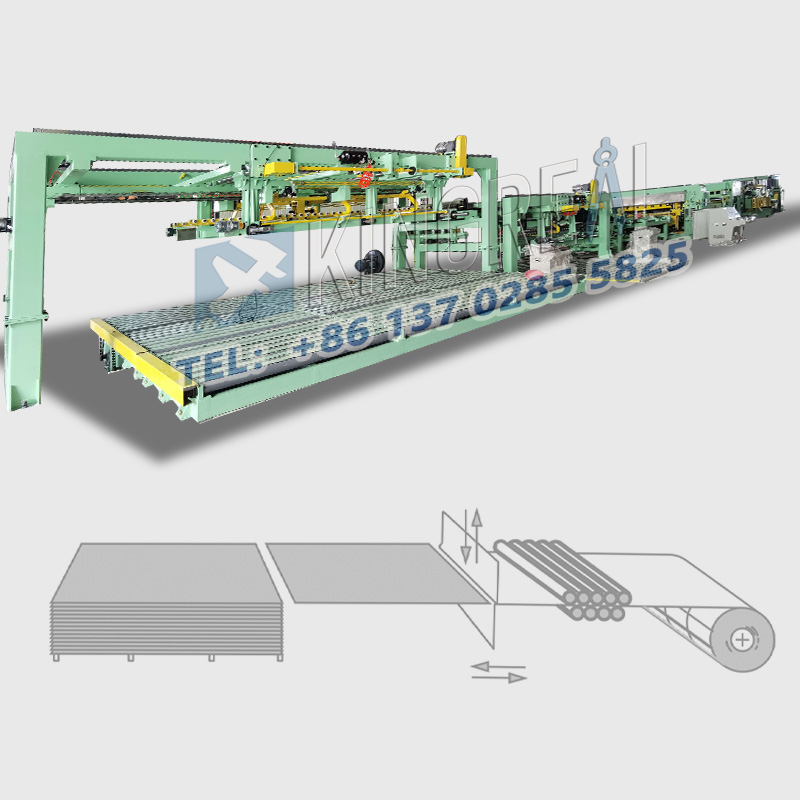

Operational Workflow of Steel Cut to Length Line with Dual-Stacker
KINGREAL STEEL SLITTER custom-designed dual-stacker integrates seamlessly with the operational logic and existing workflow of the fully automated steel cut to length machine. It enables an efficiency upgrade without requiring modifications to core components such as the decoiler, leveler, or cutter.
First, the cut-to-length machine processes the coil, cutting the material into standard-sized metal sheets according to production parameters. These sheets are then smoothly transported via the line's roller conveyors and variable-frequency drive conveyor belts, feeding directly into the downstream stacking platform for neat, orderly stacking.
The dual-stacker features an intelligent lifting mechanism equipped with gravity-sensing and counting modules. The platform automatically lowers at a constant speed in sync with the increasing stack height, maintaining a consistent receiving level. This prevents collisions, misalignment, or edge curling, ensuring the flatness and quality of the stacked output. Operators use the central touchscreen to preset the stacking quantity, stacking height, and trolley movement parameters. Once the steel plate stack on a single platform reaches the target quantity or height, the control system automatically triggers a station switch. After the equipment briefly aligns the stations, the operator lowers the lifting mechanism of the fully loaded platform, quickly moves the loaded trolley out, and simultaneously drives an empty standby trolley into the working position. The entire process—shearing, feeding, and stacking—restarts immediately, completing a closed-loop production cycle.
|
Single Stacker: Production Bottleneck of Steel Cut to Length Line
Most standard steel cut to length machines on the market come equipped with a single stacker, which is the primary reason for stacking delays and limited production capacity. Once a platform is filled to the preset limit, the entire steel cut to length line must be shut down.
This necessitates a series of auxiliary steps: securing the plates, moving out the loaded trolley, hoisting and transferring the finished product, returning the empty trolley to position, and resetting and calibrating the lifting platform. This unloading and resetting sequence is time-consuming and labor-intensive; meanwhile, all upstream processes—coil uncoiling, roller leveling, servo feeding, and high-speed shearing—come to a complete halt, leaving the high-precision shearing unit and servo drive system idle.
For large-scale metal processing plants, the frequent shutdowns and long intervals required for unloading on single-stacker lines result in a significant drop in equipment utilization rates. |
 |
 |
Double Stackers: Speed-up Steel Cut to Length Line Stacking
KINGREAL STEEL SLITTER dual-stacker features a modular design with two trolleys and two stations—one active and one standby—perfectly matching the stacking speed with the upstream shearing speed. Controlled by the steel cut to length machine's integrated electrical system, the two trolleys operate independently without interference. The removal of the loaded trolley and the entry of the empty trolley occur simultaneously, minimizing downtime during stack changes and completely resolving the bottlenecks associated with single-station material switching. The dual-stacker is perfectly synchronized with the continuous feeding and high-speed shearing rhythm of the upstream line. It eliminates bottlenecks at the discharge end—such as delays caused by stacking, unloading, or material transfer—thereby freeing the line from frequent start-stop cycles and enabling long-duration, high-volume, unmanned continuous processing.
While the main machine performs continuous shearing and one platform accumulates sheets, operators can simultaneously handle tasks for the other fully loaded platform, such as hoisting finished products, transferring materials, and performing preliminary record-keeping. Once a stack meets the target specifications, the platforms quickly swap positions to resume stacking immediately. By running the main shearing process and manual product transfer in parallel—and ensuring that auxiliary loading/unloading operations do not interfere with core shearing—the system significantly reduces total production time and effectively increases daily stacking and output volumes.
Furthermore, the dual-stacker balances speed with precision; the sheet positioning reference remains constant during station switching, ensuring neat, uniform stacks. This reduces the need for manual realignment later and further optimizes downstream operational efficiency. |
This dual-stacker not only exponentially increases stacking speeds and minimizes downtime losses but also meets the demands of large-scale industrial production, fully unlocking the steel cut to length line's inherent shearing capacity. KINGREAL STEEL SLITTER is a professional manufacturer and one-stop supplier of steel cut to length machines, offering customized, fully automated solutions tailored to specific sheet thicknesses, materials, and production requirements.
Please feel free to contact KINGREAL STEEL SLITTER for more information on steel cut to length line configurations, capacity optimization, and custom modifications.
